So here was the situation I was facing, my boss was screaming at me to do something that didn't exist so I ... alright truth be told he was never screaming at me and he was fine with the initial work around I came up with. I was the one screaming to try and connect to the Google Gemini Pro #LLM in the same Server Side Extension manner I had been for other Large Language Models. I wanted to be able to ask a question and get a response, but also have the response be responsive if I filtered selections in the data.
The problem is that the API for Google Gemini Pro expects a nested block of JSON, and the generic Advanced Analytics Connector only sends a basic JSON block with field/value pairs. But my hero, Daniel Pilla, helped me realize that a Qlik Application Automation will accept the basic JSON field/value pair block and that I could then infuse the question and data into the URL call as needed for the Google Gemini Pro API.
Feel free to watch the video and skip all of the yapping I do after it. Or if you think it might be helpful and actually want to try, feel free to read the step by step instructions to give it a try on your end.
To test let’s create a brand new Qlik Application Automation

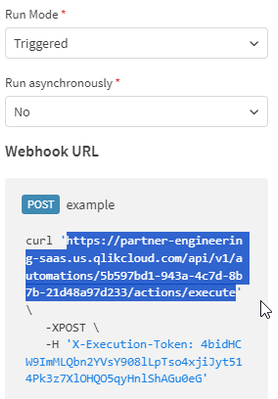

Be sure to set the Start block to Triggered and keep a copy of the information that it will display for you as to how to call the automation you will need that when creating the Advanced Analytics Connector inside of Qlik Sense momentarily.
Then add an Output block that will simply output “Yeah I did something”
Create a new Qlik Sense application and go to the Load Script.
Before adding our Advanced Analytics connector we need to add some sample data to our load script to test with:
Data:
Load * Inline [
Question#, Prompt
Question 1, "Human: What can you tell me about the Qlik Associative Model and why customers love it so much? Assistant:"
];
Choose Create new connection and then choose Advanced Analytics
Simply copy the URL from the Automation you just created, and then create a HTTP Headers entry for X-Execution-Token as shown and the token provided.
In the Response Table section simply input any table name value you wish for the Name of Returned Table and uncheck the box that says Load all available fields, and set the Table Field (JMESPath) to response and response.
You will see why based on the data in a second but for now just enter Question# as the Association Field and be sure the Send Association Field box is not checked:

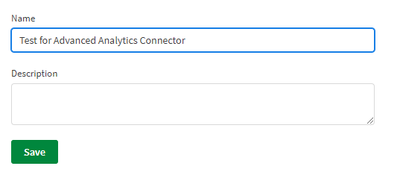

Save your newly created Advanced Analytics connector.
Now choose the Select Data icon for your Advanced Analytics test connection
After you type in the name of our sample data table “Data” the connector will then show you what information will be returned. Notice in my image it’s the AnyNameYouWant table because that is literally what I input, your screen will contain the name you used.
Run the load script and you will see that you sent 1 row and you got 1 row back:
Keep in mind that we didn’t do anything special in our Qlik Application Automation yet, we are simply using this as a test to understand HOW the Advanced Analytics Connector works. So let’s go over to the Qlik Application Automation you created and see what we learned.
Click on your Output block and delete the “Yeah I did something” text that was being output previously:
Now from the dropdown for Data to output choose the right arrow icon for Output from start because we want to see what it actually contains:
Not surprisingly it shows us that it received a simple record. Now click the Toggle view mode icon so that you can see what I mentioned at the onset. It is the very simple JSON block with a simple field/value pair that is passed in:
With that knowledge untoggled the View mode so we see the array instead and type
“You asked for: ” then click the Prompt field and choose Select first item from list. (While you saw it knows we only passed 1 entry, it assumes the body can be an array. So we need to select the first one, which is all we would ever pass it.)
Instead of calling the automation from the load script again, lets build a simple Analytics sheet instead.
Simply add a Text & Image chart to your new sheet.
Now add a measure
And use the following string as your expression. The connectionname you use is the one you created and you can copy it right from the load script if needed to ensure you have spelling and spacing correct:
Your measure expression should be:
endpoints.ScriptEvalStr('{"RequestType":"endpoint", "endpoint":{"connectionname":"Advanced_Analytics"}}', 'Tell me a dad joke' as Prompt, 'Qlik Dork' as UserName)
The measure we added is evaluated and our Text & Image Chart now contains the response from our Automation:
Now let’s go back to the Automation and take another look at it. We know we were just forcing the Output value, it’s the Start block that we care about. Notice that now the Start block had a plain JSON body with both fields.
Now let’s add a Table object to our screen. Add the Question# and the Prompt as dimensions. Then add a measure with the following expression:
endpoints.ScriptEvalStr('{"RequestType":"endpoint", "endpoint":{"connectionname":"Advanced_Analytics"}}', Prompt)
Yeah … we can call our Automation as an SSE style Advanced Analytics connector and we know that we can pass fields from our actual data, or made up values as needed.
We know there is nothing super exciting about getting a return value that repeats your question. But this post is just the foundation for you to build upon, which is exactly what I did and what I refer to in my video. Who knows what you may try and utilize the Advanced Analytics Connector for and when you encounter a red screen error or something you will know just what the issue may be.
On my end, one Dan helped me know I could call my Application Automation from an Advanced Analytics Connector, the rest of my problem was resolved quickly. All I simply had to do was add the simple basic URL block to my automation and call the Google Gemini Pro API.
In a similar fashion to what it expects, their API returns a nested block. I was able to pull that value out and return it as the result.
By the time I’m writing this article Qlik Cloud Service does not support yet the GCP user group during the authentication phase. Thus allow GCP users to access Qlik Cloud, base on their groups is not (yet) an option.
This is expected to be a temporary situation and Qlik will deliver soon (or later) also this feature. Nevertheless timing is important and it may avoid the SaaS adoption for Qlik enthusiast with the hard constraint to relay on Google groups.
In the context above, in this article I'm going to propose an alternative way to achieve the same business scope granting users to spaces based on their membership groups. Therefore, acting on the Authorization instead, the Authentication. This solution is imperfect, widely improvable (anyone is welcome to contribute) and to some extent graceless, but it just works and sometime could make the difference between adopting Qlik SaaS or something else.
Any authenticated user (through GCP or any other solution) will land on Qlik Cloud creating a new user for their first access. This solution is triggered on that specific event “User Creation”. Qlik Application Automation is triggered on the User creation event, and go through the following steps
Here you can find the Google API documentation . The HTTP request retrieve a paginated list of users belonging to the same {groupKey}. This HTTP request needs an authentication method, for this you need to create a service account on the google platform.
Pay attention to paste the Private Key. It is made of 3 lines. The first line is the “BEGIN PRIVATE KEY” the second line is the key itself without any carriage return line feed, the third line is the “END PRIVATE KEY” line. You should end up with something like this:
-----BEGIN PRIVATE KEY-----
<Your private Key in one single line, remove all the CR+LF or /n>
-----END PRIVATE KEY-----
Private Key id from the variable
Private Key from the variable
Time as: {number: {date: 'now', 'U'}}
Select Python as language and paste these lines:
import jwt
iat = inputs['time']
exp = iat + 3600 * 1000
payload = {'iss': 'qlik-user-sync@qliksaasidp-377811.iam.gserviceaccount.com',
'sub': 'qlik-user-sync@qliksaasidp-377811.iam.gserviceaccount.com',
'aud': 'https://admin.googleapis.com/',
'iat': iat,
'exp': exp}
additional_headers = {'kid': inputs['Private Key Id'],"alg": "RS256","typ": "JWT"}
signed_jwt = jwt.encode(payload, inputs['Private Key'], headers=additional_headers,
algorithm='RS256')
print (signed_jwt)
For more details please check this page.
Remember to use as parameter the pageToken
And in the header the authorization Bearer as follow:
Here attached to this article you can find the Automation. Remember to replace the placeholder in the Variable Private Key Id and Variable Private Key with your own keys as well as the group in the two call url blocks.
