Nprinting Issue: I draped one feild output is another feild

Hi,

I am printing an Excel Form using Nprinting, Most of the fields are working perfectly but after some rows of excel, thins going wrong

What I have done:

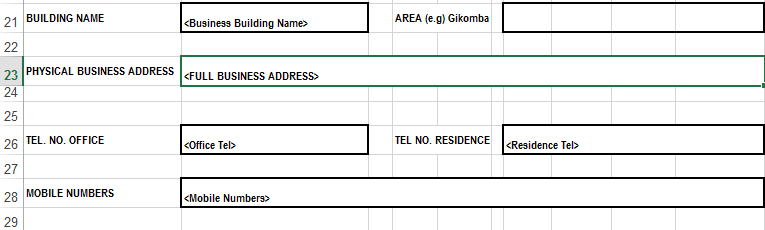

I dragged and dropped the QV Table columns as values into Npting Excel Report , it looks like

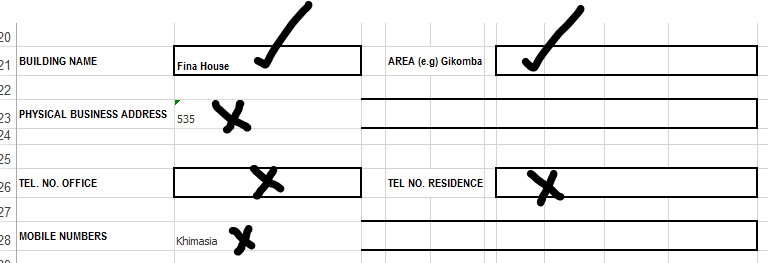

What's happening in the Output:

Untill row 22 output is what I expected, from row 23 on words o/p is differing from what I designed.

Example: Row23 should be <FULL BUSINESS ADDRESS> , but I got the output of  <Spouse RegID> .

From Row 23 on words all the output fields jumbled , I mean they are being printed but not at the designed cells.


Note: I am using Nprinting 16.3.0.0

1 Solution

Accepted Solutions
Daniel_Jenkins
Specialist III
Specialist III

Hi Guruprem,

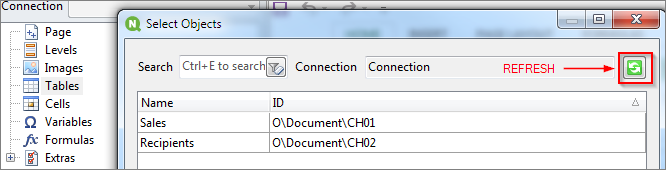

Did you by any chance rearrange the colums in the source QlikView table after creating this template? If so, I suggest that you save the QVW, delete all the smart tags in the report template, remove the table from the list of objects in the template editor, refresh the list of objects (see image) before bringing the table back to the list and then add the field smart tags to the template.

If that does not work please post a sample project that demonstrates this behavior here or open a case with Tech. Support.

HTH - Daniel.

View solution in original post

2 Replies
Daniel_Jenkins
Specialist III
Specialist III

Hi Guruprem,

Did you by any chance rearrange the colums in the source QlikView table after creating this template? If so, I suggest that you save the QVW, delete all the smart tags in the report template, remove the table from the list of objects in the template editor, refresh the list of objects (see image) before bringing the table back to the list and then add the field smart tags to the template.

If that does not work please post a sample project that demonstrates this behavior here or open a case with Tech. Support.

HTH - Daniel.

guruprem
Partner - Creator III
Partner - Creator III
Author

Daniel,

You are correct cause of this issues is rearranging of columns in QVW. I've reopened Nprinting and refreshed the document to sortout.
