Aligning label to axis

[varunreddy]

Hi Guys,

I have a requirement, where I have to align labels to axis. In the attachment below you can find the scenario mentioned. I want the label attached to the x-axis.

Thanks in advance!

Cheers,

Varun

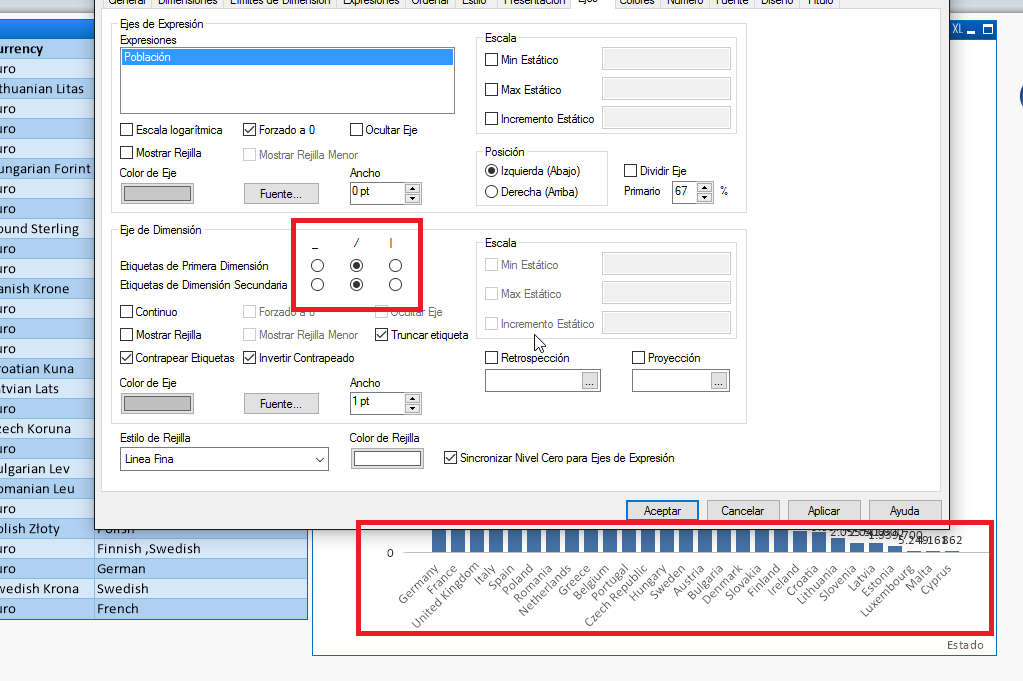

[ecolomer]

This is an alternative

[nagarjuna_kotha]

PFA

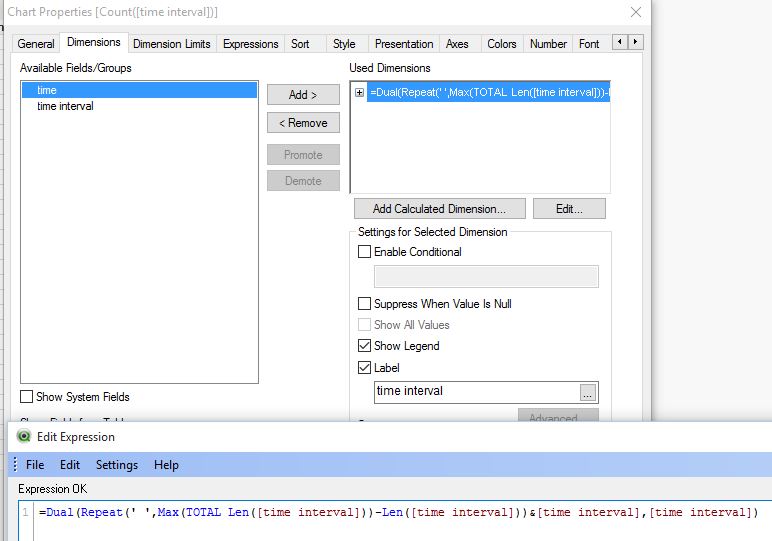

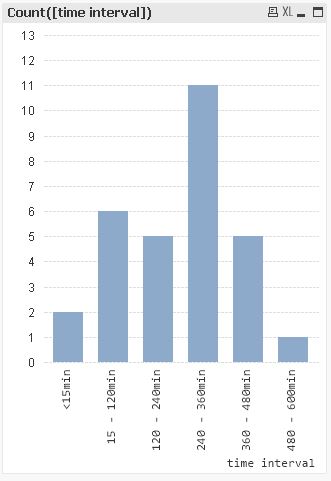

[MarcoWedel]

Hi,

another solution could be:

=Dual(Repeat(' ',Max(TOTAL Len([time interval]))-Len([time interval]))&[time interval],[time interval])

hope this helps

regards

Marco

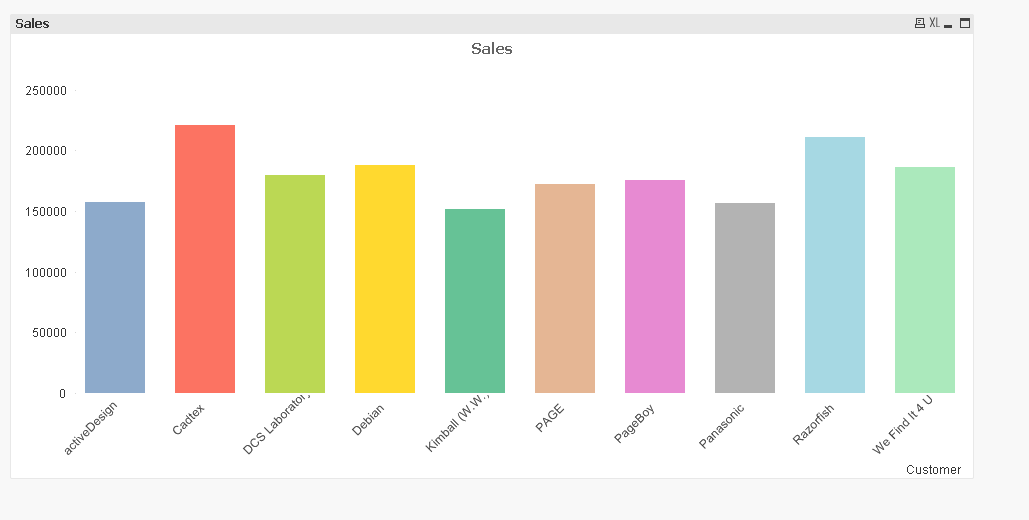

[HirisH_V7]

Hi Varun,

As per Your requirement You Can create the Axes Line Like this,

Right Click Chart-> Under the tab Axes -> Dimension Axes ->  Primary Dimension Labels and secondary Dimension Labels as of your required way.

And also if you want to Move Chart  and Caption,

You select the chart and press <Ctrl><Shift> at the same time red lines will appear round the sub objects and yo resize / move them.

Hope this Helps,

Regards,

HirisH

[jonathandienst]

Change the chart type to a straight table, then on the Presentation tab, select right alignment for the Label for the dimension column. Then change the chart type back to bar or combo chart. That should cause the chart labels to right align.

[#7]

Hi, Varan!)

I not looked QNX on the grid!?

Igor.

Best regardsz!!!

[MarcoWedel]

Hi Jonathan,

can you please post an example?

I didn't manage to get this result.

thanks

regards

Marco
