Bar chart count and percentage

[Anonymous]

Friends,

I want to create a bar chart which displays both count and its percentage and I'm using the below expressions for

1. Count(DISTINCT {<Maersk={'Y'}>}[Field Name])/Count(DISTINCT{$<[Carrier Name]={'Y'}>}[Field Name]) - percentage

2. Count(DISTINCT {<Maersk={'Y'}>}[Field Name]) - count of fields

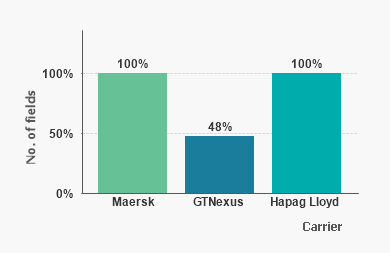

The chart should be as below,

In the above chart, I can only able to show percentage but not the count. So, please help me guys to show both count and percentage in a single bar chart.

[#2]

Hi Siva,

By using two expressions you will get two bars for two expressions, you can select the relative option for one expression to show the % or if you are using stacked bar the second bar value will add to the first one and give you the total value as %.

Maybe someone here can give you the better answer

[adamdavi3s]

Hi,

You can do this using the DUAL function

So something like this (Sorry for any typos)

DUAL(num(Count(DISTINCT {<Maersk={'Y'}>}[Field Name])/Count(DISTINCT{$<[Carrier Name]={'Y'}>}[Field Name]) ,'0.00%'), Count(DISTINCT {<Maersk={'Y'}>}[Field Name]) )

I've attached an example

[Anonymous]

Thanks Adam, but it's not showing the count of fields...

[adamdavi3s]

Hi Siva,

What is it showing?

Adam

[Anonymous]

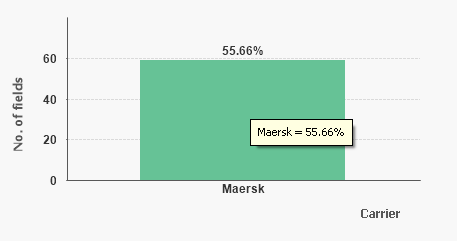

It displays only the percentage value but the count of fields is shown in y-axis, I need the count to be shown atleast on hovering it.

[buzzy996 · Accepted solution]

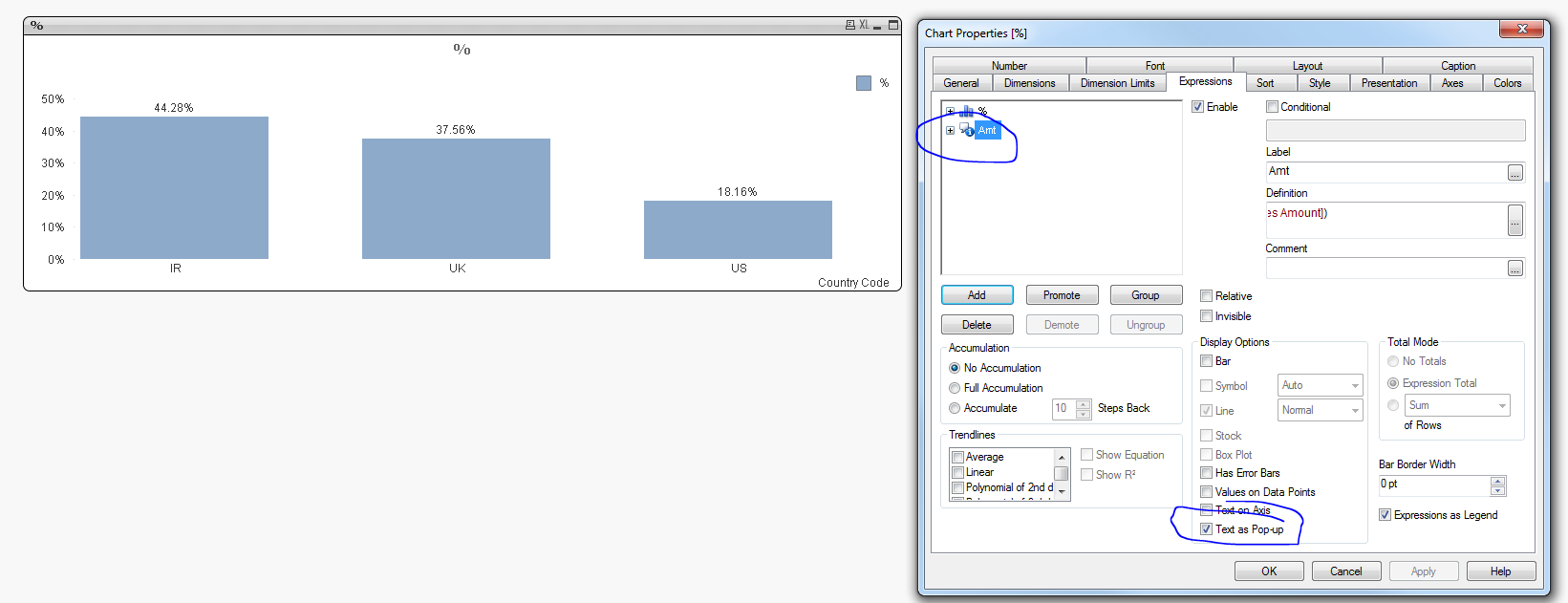

pfa,if u looking for the same ? u have write total syntax on ur expression tab.

[adamdavi3s]

Hmmm that is weird, I'd need to see your file to work it out really, but I suggest something isn't quite right with the formula.

Can you upload your file?

[sunny_talwar]

May be like this (using Adam's sample)

[Anonymous]

Thanks guys, I got it....
