Custom Y-axis scale

[#1]

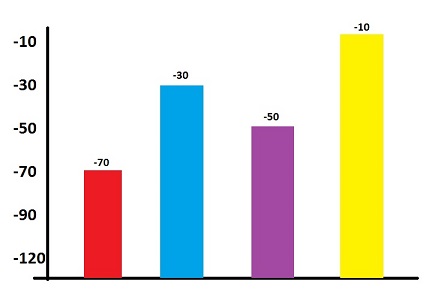

I need to create a bar chart with a custom Y-axis scale (-125 to -10) where -125 is the minimum value and -10 is the maximum value and vertical bars go up with -10 being a larger bar than -125.

I have experimented with using the dual command to modify my expressions for custom label at the top of each bar, but I really need the values listed along the Y-axis to align with the values being displayed. Is this possible?

[Anonymous]

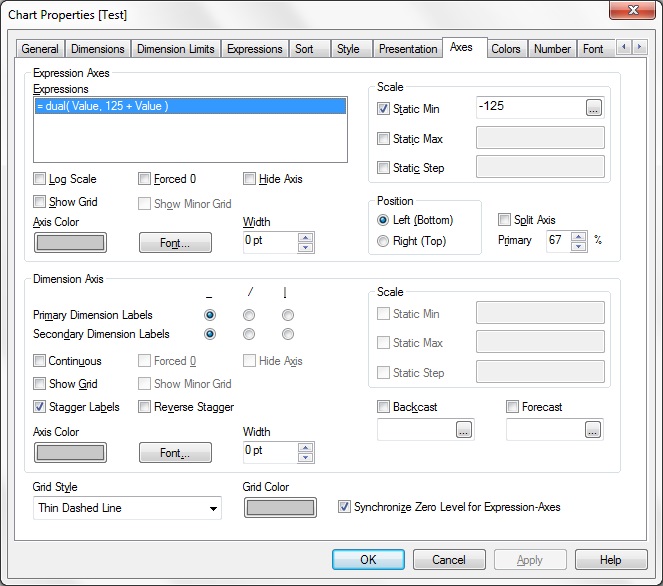

Take a look at the Axes tab, Scale, static min and max.  Maybe this is what you need.

[MK_QSL]

But negative value bar chart will start from Up to Down not like what Jessica wants..i.e Down to Up

[Anonymous · Accepted solution]

Yes Manish, it's more than just static scale...

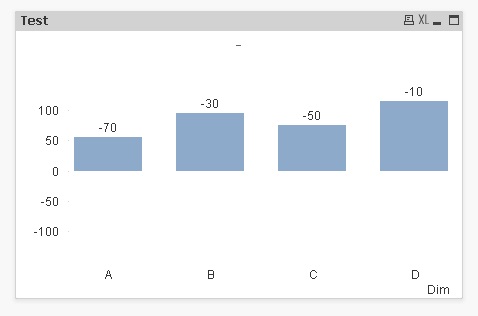

Attached

[#5]

When I load yours it works, but when I create my own it doesn't work. What am I missing?

[Anonymous]

Add Bar offset  -125

[#7]

Where is Bar Offset found?

[#8]

Client upgrade needed for this option? Or am I just not seeing it?

[Anonymous]

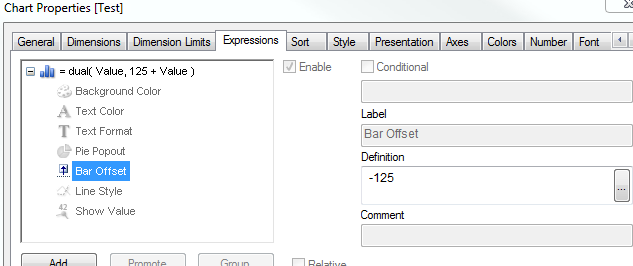

It is on the expressions tab.  Click on the +sign at the expression name, and you'll see several "attribute expressions", including "Bar Offset"

[MK_QSL]

Simply Excellent !
