Data model question - combining tables with more than one common field. - urgently required

[Anonymous]

I have two tables.

First table has project number, investment number and business case.

Second table also has project number, investment number and business case.

In this scenario how to I create a link between the two tables . All other columns are separate.

If I have to create a data model by giving a logical link between the two tables what will be the script.

[luismadriz]

Hi,

Like a composite key with Autonumber([project number]&[investment number]&[business case]) as Key?

It'll be interesting to know what others have done,

Cheers,

Luis

[Anonymous]

Hi Luis, q1) Is it fine to use just concatenate instead of auto number.

Q2And if the concatenated key from one table does not match the other table it gives out blank rows, I have noticed that.

[luismadriz]

Hi,

Q1, yes, for small datasets

Q2, of course, if something doesn't exist on one table it doesn't have anything to join on. Example:

T1:

Load *

Inline [

Dim,NumberT1

1,503262

2,800202

3,707784

4,498978

5,603963

6,518502

7,432352];

T2:

Load *

Inline [

Dim,NumberT2

1,262

2,202

3,784

8,502

9,352];

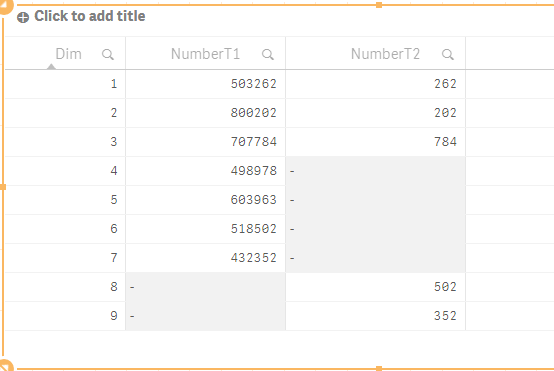

Do the nulls worry you?

[Anil_Babu_Samineni]

Can we know the reason to maintain Bridge table?

Anyway, FYQ answer should be this?

T1:

Load *, AutoNumber([project number] & [investment number] & [business case]) as Key;

Load [project number], [investment number], [business case], Field_Diff1 From T1;

T2:

Load *, AutoNumber([project number] & [investment number] & [business case]) as Key;

Load [project number], [investment number], [business case], Field_Diff2 From T2;

LinkTable:

Load DISTINCT Key, [project number], [investment number], [business case] Resident T1;

Concatenate (LinkTable)

Load DISTINCT Key, [project number], [investment number], [business case] Resident T2;

Drop Fields [project number], [investment number], [business case] From T1;

Drop Fields [project number], [investment number], [business case] From T2;

[luismadriz]

Hi,

Just wondering to know how did you go,

Cheers

Luis
