Hello All,

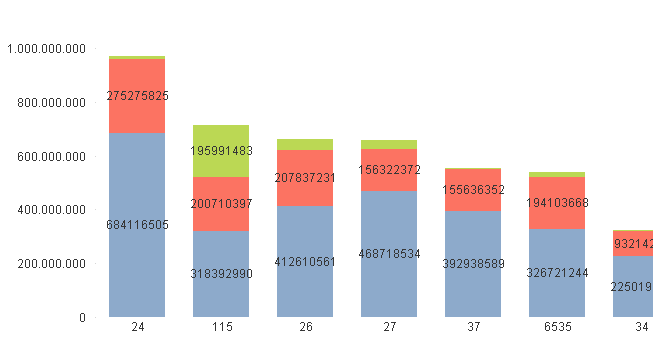

How to show the data labels on Stacked bar chart. I'm using the below process but nothing happens-
1. Right click on Chart.
2. Properties-> Presentation.
3. Check "Plot Values Inside Segments".
I'm using QlikView 12.10. Please suggest what I should I do?
"Plot Values Inside Segments" is under Graph Tab, not Presentation.
Have you also checked "Values on data point" in the Expression tab ?
If your segments are too small, qlik doesn't show you the values
Can I show values based on the condition like if it is greater than 0 then only it should show
No, you can't.
The only thing you can change you expression in order to include only some data (for example only positive values) but i don't think is your case.
May be using dual function

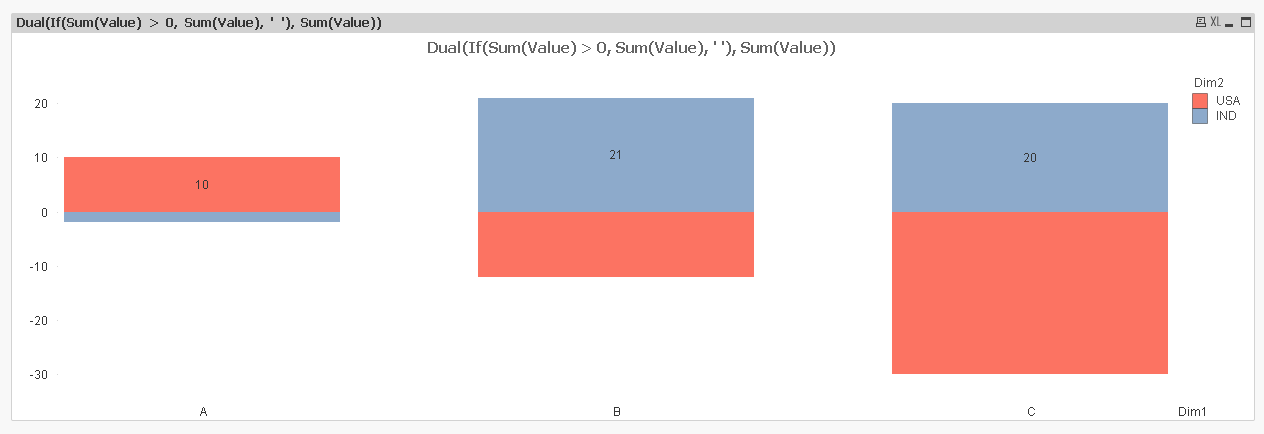

Dual(If(Sum(Value) > 0, Sum(Value), ' '), Sum(Value))
