Display dates in slider object

[Anonymous]

Hi,

I am new to QlikView; I have a slider object, mapped to a field that represents 2 year's worth of dates to which data is assigned - therefore, I cannot create a slider object that will show all the dates, as it would be way too long for the screen. The slider object is multi-value, as the user needs to select a date range, and it has 1 minor unit for each of the 12 major units. The problem I have is that you cannot accurately determine the "start" date before selecting it to begin the date range selection, because the date value is not displayed - for example, if one of the major units is '3-22-2011', and I want to start a date range from "3-1-2011', it is a guess to determine where to click between the minor and major unit, as the date value is not displayed until you click within the slider - if it's wrong, you have to clear the selection and try again. A calendar object is not suitable because the user needs to be able to select a date range across multiple months.

Is there a way to display the date value that the mouse is hovering over within the slider, before you click within the slider object?

Thank you,

VB

[#2]

Find the sample atatchment

[#3]

Thank you Ravi,

I have the data displaying as desired, thank you. However, the List boxes are listing text data and not checkboxes. How do I get the checkboxes like you have in your screenshot?

Thanks

Sheldon

[#4]

Have you seen my attachment Sample.qvw?

[#5]

Yes I have, thank you.

However, I do not see what setting to use to make them display as a checkbox as you have it in your image.

[#6]

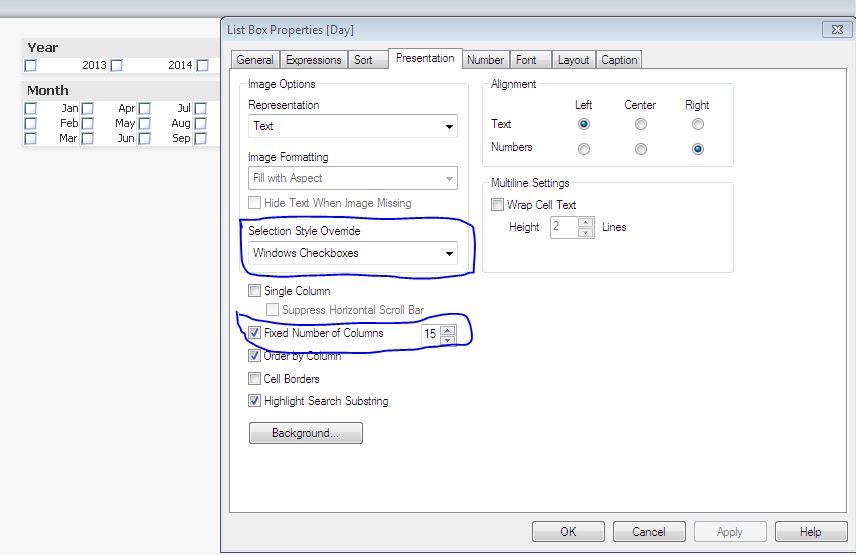

Please follow like this in the image.

Rightclick on each of the listbox and change its presentation and you will get the same look and feel.

[#7]

Great, thank you very much!
