Hi

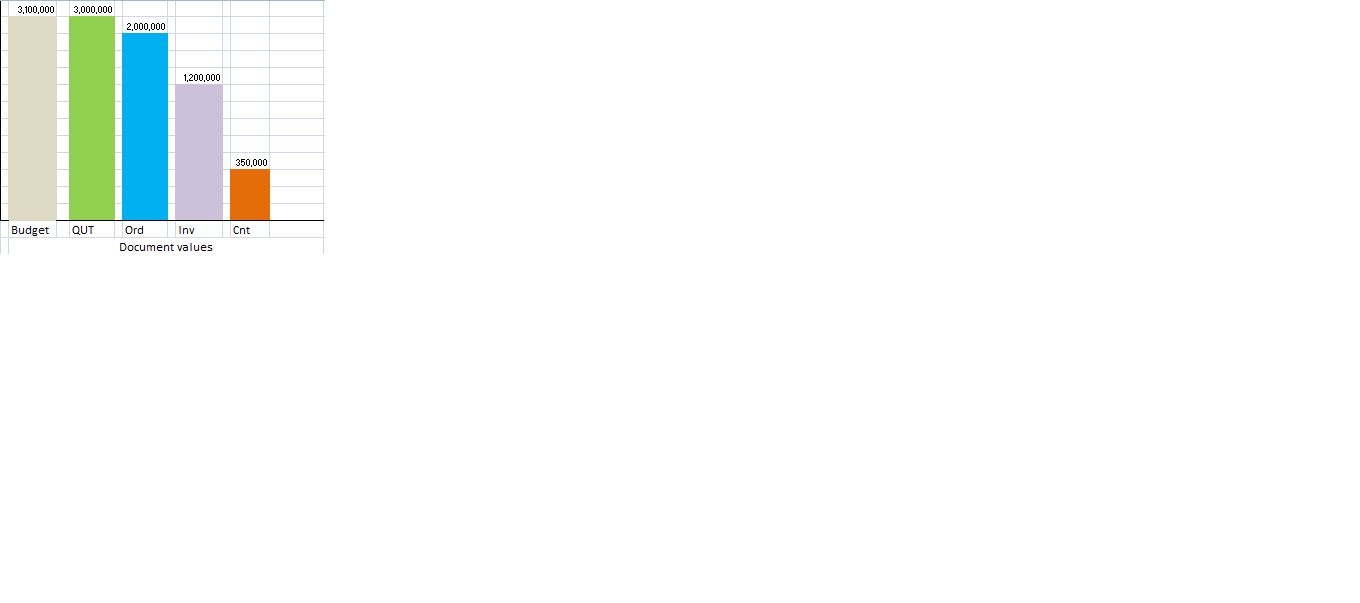

I would like to have a bar chart with document type (Invoices, Orders, Quotations) as a dimension and the Rand values as an expression. The client also want to see the sum(budget) as a separate dimension as per image below.
How does one show an expression as a separate dimension?
try to add a new dimension to your data set that is add a field "document type" associated to your document (when you load or select) and use it as dimension
In you script
make
Load sum(budget) as Sum_Budget from data source;
then add (Sum_Budget) into your Dimension
Hope your problem get solved
or
On Dimension tab see add calculated Dimension as sum(budget)
if you want label it
Hi
Thx for the reply. I've already got DocType as a dimension in the model so it's not a problem showing the sum of the values per doc type. The problem is showing the total of the budget as a dimension.
Could you post your document?

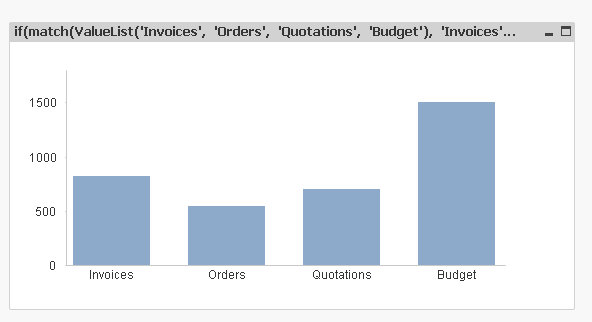

SCRIPT
Table: load 1500 as budget AutoGenerate 1;
CHART
dimension
ValueList('Invoices', 'Orders', 'Quotations', 'Budget')
expression
if(match(ValueList('Invoices', 'Orders', 'Quotations', 'Budget'), 'Invoices', 'Orders', 'Quotations'),
rand()*1000,
sum(budget)
)
Hi Sunil
My script looks like this
SALES:
Load
Date(DocDate) as DocDate,
FinncPriod,
ObjType,
slpcode,
slpname,
Turnover;
SQL SELECT Branch,
DocDate,
FinncPriod,
ObjType,
slpcode,
slpname,
Turnover
FROM dbo."XBI_SalelinesNew";
Concatenate
Load
Budget as Target,
Fincpriod as FinncPriod,
Name as slpname,
SlpCode as slpcode
;
SQL SELECT Budget,
Fincpriod,
Month,
Name,
SlpCode,
"U_Year"
FROM dbo."XBI_SalesBudgetIncludingEmpCode";
All goes well up tp here.
I then want to do your suggestion 'Load sum(budget) as Sum_Budget from data source' to make a new dimension so -
BudgetTotals:
Load
slpcode,
Sum(Target) as TargetDimension
Resident SALES;
Then I get this error
Invalid expression
BudgetTotals:
Load
slpcode
Sum(Target) as TargetDimension
Resident SALES;
I can't see where I'm making the error?
I noticed that
you are making "Budget as Target" field leave as it is Budget then use like below
BudgetTotals:
Load
slpcode
Sum(Budget ) as TargetDimension
Resident SALES;
or
you can directly use Sum(Budget ) in your calculated dimension these not make any difference
Hi Massimo

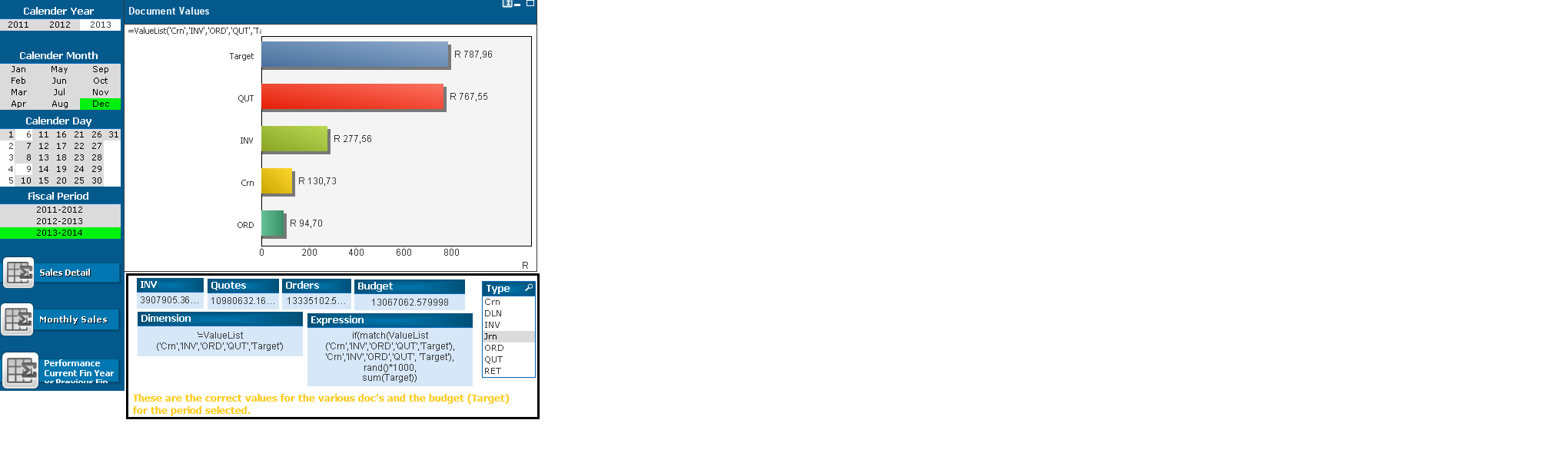

Thx for the reply - I'm getting close now but my totals in the chart is wrong - probably something small. See image below - I've added the correct values in text boxes below. When I implement your suggestion - Am I not getting budget (target) amounts per doc type and the total budget (target) as a separate column? What I need is the turnover
sum(Turnover) per doc type and the Sum(Target) as separate column like in your chart. The chart looks exactly like I want it - it's just the totals that are incorrect.
