Filtering dimemsional data from bar chart

[#1]

Hi

Is it possible to filter which dimensions are displayed in a bar chart?

E.g. I have a dimension which is on locations. The dimension is called location. There are four areas in the data when the chart is created - England Scotland Wales Ireland. I only want to display England and Ireland. How do I do This?

Thanks

[sergio0592]

As dimension of your bar chart :

=if(match(location,'England','Ireland')>0,location)

and check suppress null values

Or as expression :

sum({<location={"England","Ireland"}>}Indicator)

[#3]

Hello thank you for your reply. This does work but it doesn't keep the labels on the bar chart and replaces these with the if statement expression. Is there a way to override this so you are able to filter the dimension and keep the labels so it says England and Ireland instead? Thank you

[sergio0592]

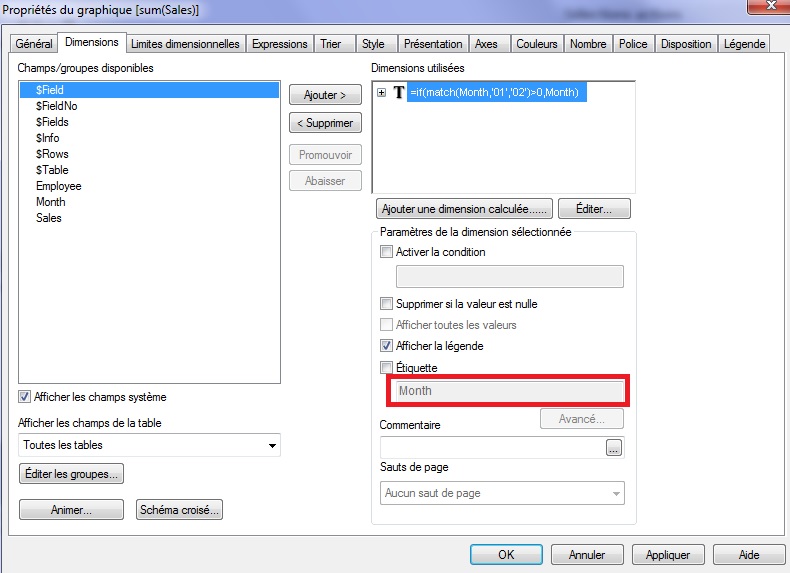

For dimension, you can write label in Properties/Dimension tab

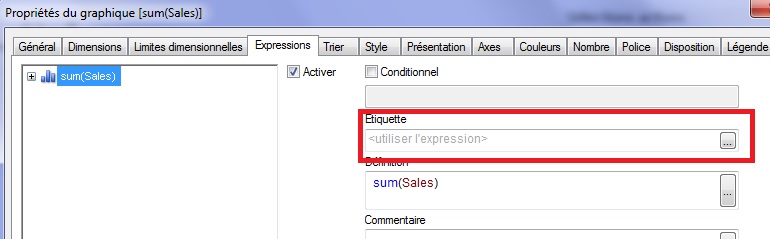

And for expression

[#5]

Hi Sara

Just do this:

1) in the load script, create a table INLINE with the dimensions that you want, like this:

[Location Options]:

LOAD * INLINE[

"_location_option"

"England"

"Scotland"

"Wales"

"Ireland"

];

2)  Run The script

3) In the chart, do the following:

Property

Expressions

3.1) in a [England] expression:

marks the conditional checkbox and write a condition :

=( GetFieldSelections(_location_option) like '*England*' )

3.2) in a expression definition, use a modifier:

       LOCATION={'ENGLAND'}

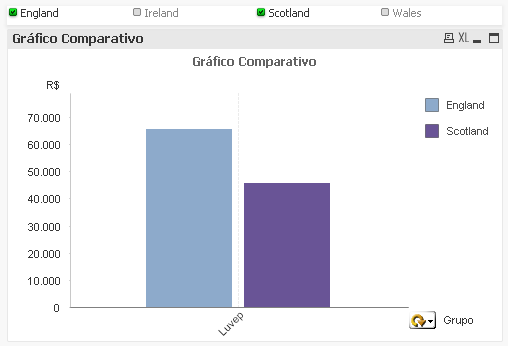

4) For example, if user select England and Scotland only, you chart appears like this:

[oscar_ortiz]

Sarah,

I would suggest to use sergio0592‌ second option using the set analysis statement.  The calculated dimension can cause issues if you are working with a larger data set.  If you are dealing with a small data set then you will not really notice a difference in response time and using a calculated dimension will be fine.

Good luck

Oscar

[#7]

Excellent answer thank you so much. Just tried it and it works. Perfectly described. Great instructions.
