Hi,
I have a bar chart, consider the attached image.
I want to find the difference in the values between the bars in bar chart and show that value as a line chart in combo chart.
For example:
ID 1, Value 10
ID 2, Value 24
So the difference between them is 24-10=14
then
ID 3, Value 30
So the difference between them is 30-24=6
Like this, i want to show the difference value between them as a line or trend in the combo chart.
How can we achieve this?
May be like this (assuming your current expression is Sum(Sales))
Sum(Sales) - Above(Sum(Sales))
Hi Sunny,
Thank you for the reply.
I am having two expressions in the bar chart and i have to find the difference between them.

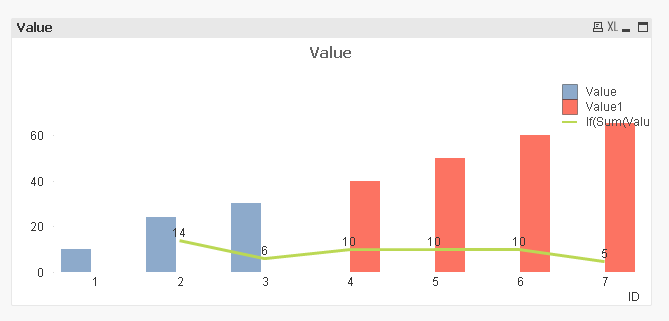

PFA the snapshot of the bar chart with sample.
Earlier screenshot only showed one expression. Would you be able to provide a sample with the expected output? For a sample, qvw would be helpful to play around with
PFA the sample qvw.
It shows two expressions, i want the difference between two bar values and show that as a trend in the same chart.

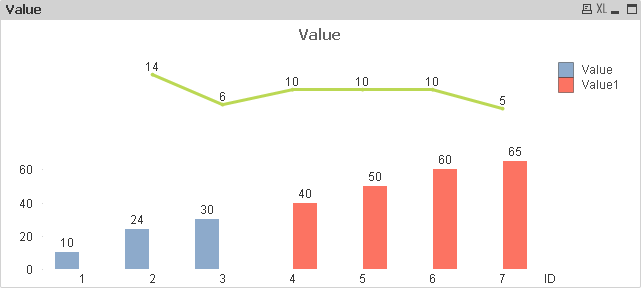

Like this
(Alt(Sum(Value),0)+Alt(Sum(Value1),0))-Above(Alt(Sum(Value),0)+Alt(Sum(Value1),0))
Like this?
Expression:
If(Sum(Value) > 0, Sum(Value)-Above(Sum(Value)),
If(Above(sum(Value1)) = 0, Sum(Value1)-Above(Sum(Value)), Sum(Value1)-Above(sum(Value1))))
Hi,
Sorry for that sample file.
I thought the logic which you have given will work in my actual file, but it did not work.
PFA the file which has the data similar to actual file.
Using this qvw, i want the same functionality.
The data has one bar for current data and other bars are for history data.
Please check this file and help me to get the difference between the bar values and show them as a trend.
Sample excel file data used.
This?
Expression:
If(sum({<Flag={0}>} Value) > 0, sum({<Flag={0}>} Value)-Above(sum({<Flag={0}>} Value)),
If(Above(sum({<Flag={1}>} Value)) = 0, sum({<Flag={1}>} Value)-Above(sum({<Flag={0}>} Value)), sum({<Flag={1}>} Value)-Above(sum({<Flag={1}>} Value))))
