How to add a reference line in trend chart

[abc_18]

Hi,

In my application I have one trend chart with drill down capabilities, in this chart I need to show reference line for target value that is based on priority.

I have added reference line under presentation tab.

how to make that reference line visible only on third level of hierarchy that is priority value??

Hierarchy is like

Domain

Track

Priority

Please suggest..

[vinieme12]

instead of Reference line add another expression with a condition

example

=    if( GetFieldSelection('yourgrouphere') = 'Priority', Expression)

[Anonymous]

try this Expression as conditional show

=GetCurrentField(yourdrilldowngroup)='Priority'

[abc_18]

where do I need to write this

presentation->reference line->edit->show conditional

I tried this , but still not working

[abc_18]

Hi Vineeth,

Thanks for your response, I tried your expression but not getting desired output.

Target line is appearing for all the dimensions.

[vinieme12]

Nope, not in presentation

you have to add another Expression

First > Enable conditional for the Expression

               condition : =    if( GetFieldSelection('yourgrouphere') = 'Priority', 1)

Expression = YOUREXPRESSION

[Anonymous]

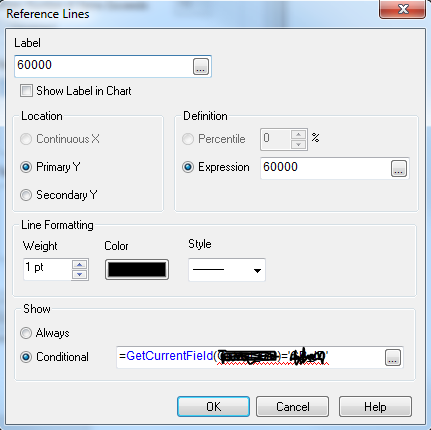

I defined in Show conditional

if it doesnot work for you, put your Expression (60000 in example) in a TextBox

and check if the value fits to your Chart axes

[abc_18]

Hi Vineeth,

I am using another formula for target line that is

Avg(SLA) in presentation tab->reference line and my expression is different.

I tried your expression under conditional tab

if( GetFieldSelections(oto drill) = Severity, 1).

but after writing this target line is not visible for any of the dimensions.

[marcus_malinow]

Your conditional display should be based on GetCurrentField(yourGroup)

For example:

if(GetCurrentField(yourGroup) = 'Priority', Expression)

[vinieme12]

try below  ,the function to use is GetcurrentField()

I hope Severity is the name of the Field!!

if( GETCURRENTFIELD('[oto drill]') = 'NAMEOFFIELD', 1).
