Hi All,
I am trying to calculate the duration of past 10 successful executions of a job in Qlik View and draw a line chart for that. Can someone please guide me how to proceed with this ?
I have the current field values like Status_code, End_time, Start_time. I can calculate the duration using End_time and Start_time but how to find out the last 10 successful executions of the job.

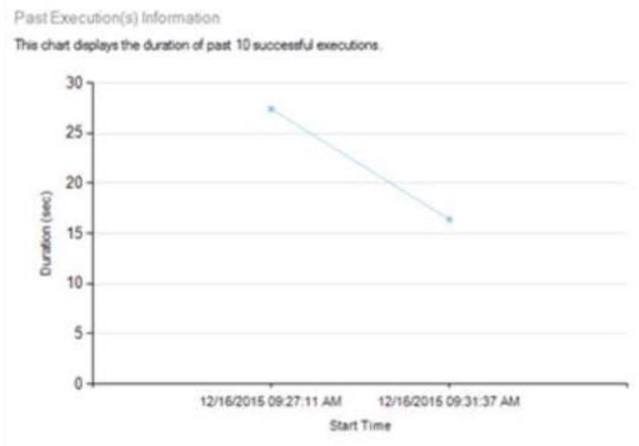

I want something like shown in the screenshot below
Thanks,
Kshitij
see the attachment, it might be helpful..
Try like this :
Create two variables, vStart and Vend ..difference between this will give you the duration of the reload.
and then on every reload you need to store this total time into a QVD with the time stamp so that every time when you reload the duration will be captured in the QVD and you can load this QVD to create your chart
see the attachment, it might be helpful..
Hi ,
I hope you require to show line chart for all 10 status codes and duration of the Execution .
check this,
Info:
Data:
LOAD * ,
Interval(EndTime-StartTime,'ss[.fff] ') As Duration
INLINE [
StatusCode, StartTime, EndTime
1,19/01/2016 8:59:01 AM,19/01/2016 9:59:01 AM
2,19/01/2016 9:59:09 AM,19/01/2016 10:59:01 AM
3,19/01/2016 11:58:09 AM,19/01/2016 11:59:01 AM
4,19/01/2016 12:58:09 AM,19/01/2016 12:59:01 AM
5,19/01/2016 1:51:09 AM,19/01/2016 1:59:01 AM
];

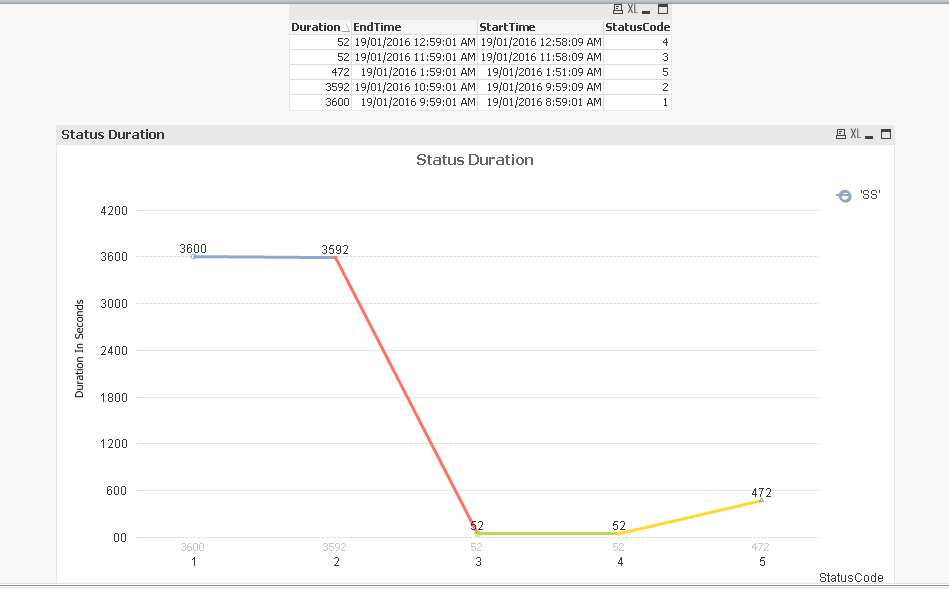

Output:
Hope you require like this,
Else post your sample data,
PFA,
Hirish
Thanks all for your prompt replies. Pradeep's attachment worked fine for me as my data was same as his. Problem resolved.
Cheers!!!!
Kshitij
