How to determine scale based on max value

[Anonymous]

Hi all,

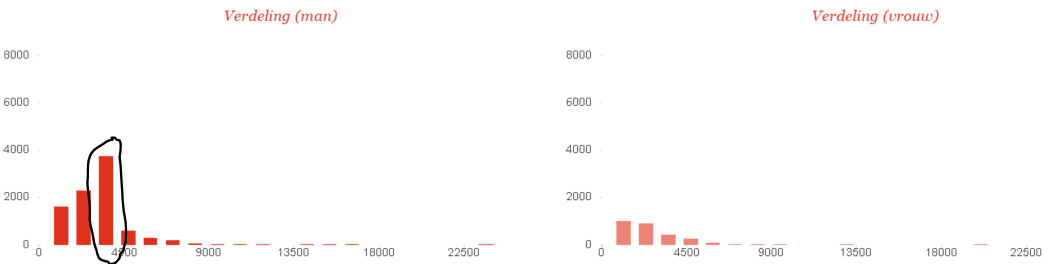

I would like to determine the scale of my bar charts based on the max value, shown in black "circle" below.

Could you help me?

[devarasu07]

Hi,

yes it can be done.

go to your bar chart object properties --> axes tab --> scale (here u can define min, max value)

[Anonymous]

Hi Devarasu,

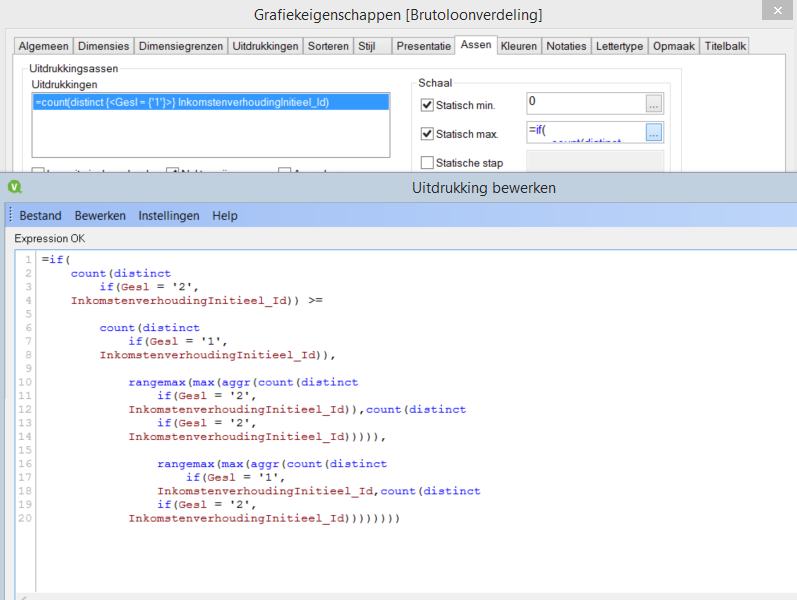

I filled in the statistic max as follows :

     =if(

     count(distinct

     if(Gesl = '2',

     InkomstenverhoudingInitieel_Id)) >

     count(distinct

     if(Gesl = '1',

     InkomstenverhoudingInitieel_Id)),

     count(distinct

     if(Gesl = '2',

     InkomstenverhoudingInitieel_Id)),

     count(distinct

     if(Gesl = '1',

     InkomstenverhoudingInitieel_Id)))

my expressions are:

=count(distinct {<Gesl = {'1'}>} InkomstenverhoudingInitieel_Id)

=count(distinct {<Gesl = {'2'}>} InkomstenverhoudingInitieel_Id)

Target of my question is to make the small bars a bit bigger. Now the max value is <1000 and I have a max scale of 2000. That's waste of space in my charts.

Hope you can help me.

Grtz,

Pascal

[devarasu07]

Hi,

would be able to share your mock app. mean while have you tried to enable "Log Scale"  option on your chart axes tab? . Thanks

Regards,

Deva

[jonathandienst]

The max value can be calculated for scale purposes using the expression:

=Aggr(<chart expression here>, <dimension 1>) (for one chart dimension)

=Aggr(<chart expression here>, <dim1, ..., dimn>) (for more chart dimensions)

Insert the chart expression and chart dimension(s) in the placeholders above.

You can insert the expression into the Static Max box above after testing in a text box.

[Anonymous]

Thanks Jonathan.

Last step is to round off my maxrange at 1000, but where do I have to put the round function? (or other function)

Thank you in advance.

[devarasu07]

Hi,

syntax:

Round(Expression, 0)

example,

=Round(

if(

     count(distinct

     if(Gesl = '2',

     InkomstenverhoudingInitieel_Id)) >

     count(distinct

     if(Gesl = '1',

     InkomstenverhoudingInitieel_Id)),

     count(distinct

     if(Gesl = '2',

     InkomstenverhoudingInitieel_Id)),

     count(distinct

     if(Gesl = '1',

     InkomstenverhoudingInitieel_Id))) ,0)

[jonathandienst]

You probably want to round up the max (rounding down will clip the chart), so use Ceil() rather than round. It should be at the top, so use

=Ceil(.... your max expression ...., 1000)

For the static min, use Floor() to always round down, in the same way (or use 0 if that is what is required)

=Floor(.... your min expression ...., 1000)
