Hi Team,
How to display bar total in bar chart, in bar chart 3 slics is there i want to display total on top of the bar.
please find the attached file.
please help me.
Thanks
Enable the Values on Data Points for the expression on the Expressions tab of the properties window. The total for the stacked bar will then be shown on top of the bar.
aspdsdf
Go to the Expressions tab and enable the Value on Data Poins..
properties--> Expressions tab -->check the Values on Data Points
Hi,
Go to presentation tab -> Click the "Plot Values inside Segments" Check box.
Find the attached file
i want to display 3 slice total on top of the bar,

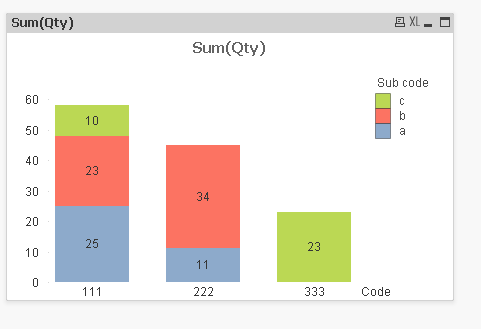

u have sent the screen shot 25+23+10=58 this value display on the top of the bar
this is my requirement.
i have tried this Go to the Expressions tab and enable the Value on Data Poins..
values are displayed but total are not displayed on the top of the bar.
Hi,

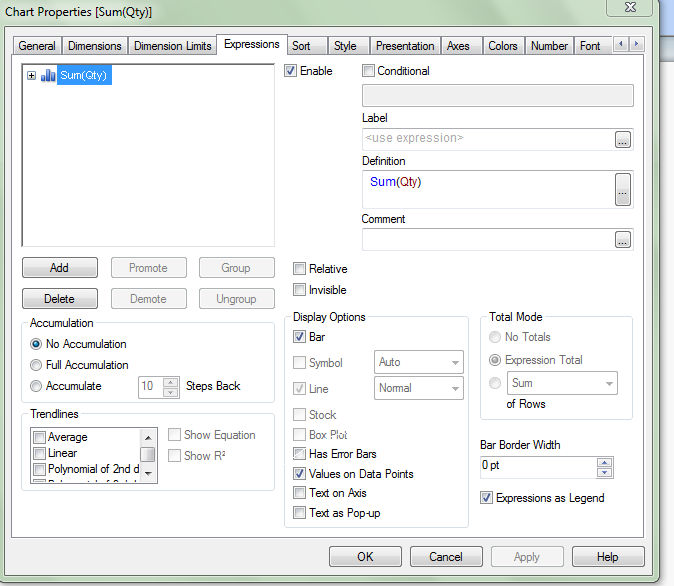

Go to Expression tap then click your expresion field. then click the 'Values on data points' check box.
See below screen short.
in expression write
sum(TOTAL Qty)
OR
AGGR(sum(TOTAL Qty),Code)
