How to display graph data labels in percentage format

[Anonymous]

Hi All,

I have put up a bar graph with three dimensions and measure is count (member)

Female 1245

Mlae     1254

Unknown 12

For the above data set i have plotted bar graph. But i need the data labels to be in percentage. How should i do it.

[micheledenardi]

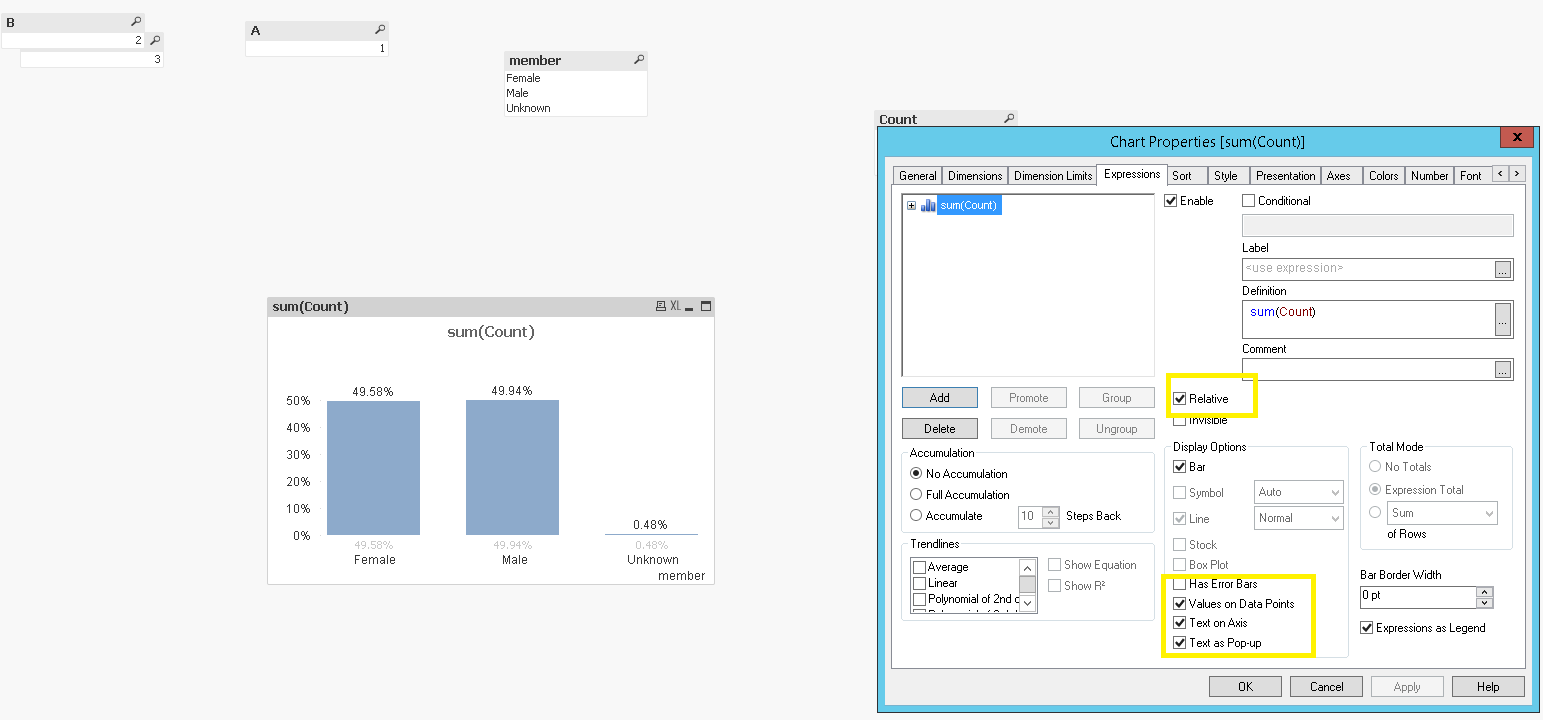

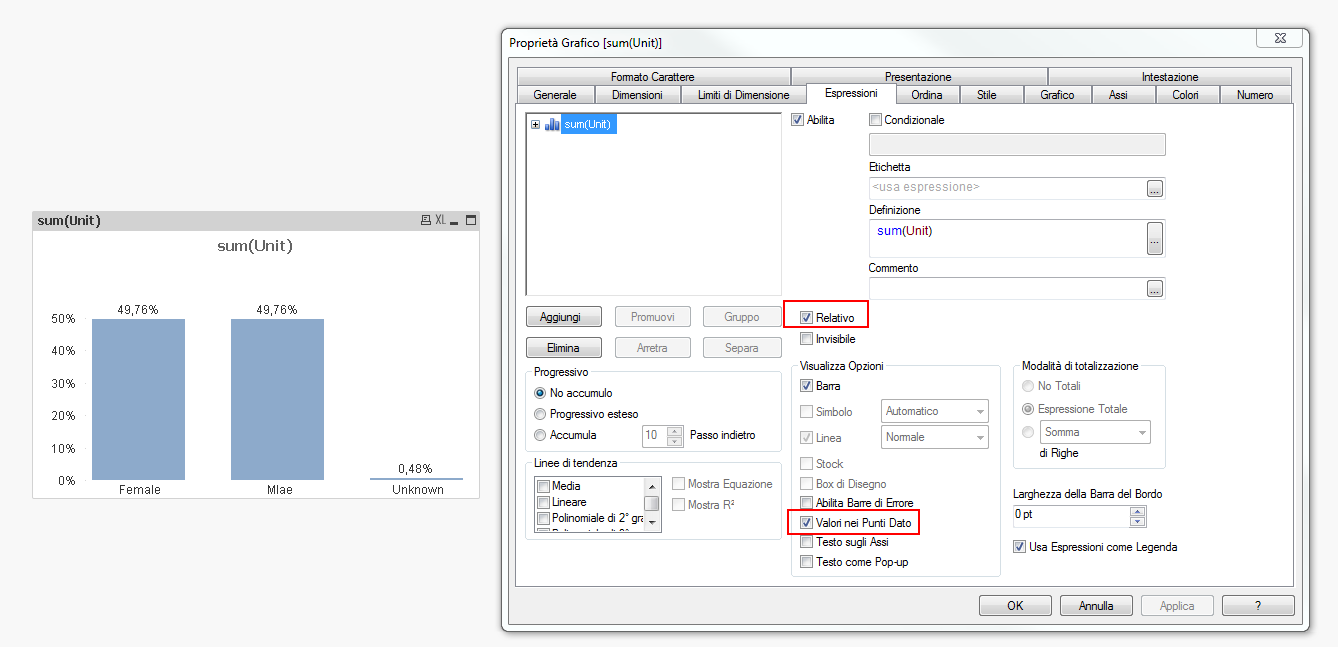

Write your expression and then mark "relative" and "Value on data point" checkbox.

[ahaahaaha]

May be

Count (member)/Count (Total member)

[felipedl]

Hi Avinash,

See if the attached QVD is what you want.

I used sum instead of count to get the values.

Regards,

Felipe.

[trdandamudi]

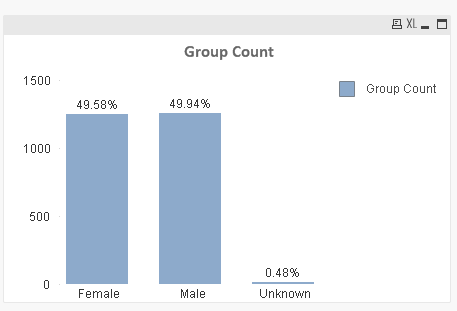

Here is one way you can achieve that. Take a look at the attached file:

[alis2063]

you would also use percentage as below ,just need to supplied the Dimensions  & Expression,

[Anonymous]

Hi Michele,

Can you pls explain it in the qliksense ?

[Anonymous]

Hi Thirumala,

Can you pls explain it with respect to Qliksense.

Regards,

Avinash

[vicky_qv]

Hi Avinash,

I think you can use measure as Sum(count)/Sum(total count) and in the Number Formatting, you can select 'custom' and format pattern as '#,##0.00%'

Thanks,

Vignesh U.

[Anonymous]

Hi Vignesh,

Can you pls show it in qliksense.

I hve tried doing but m not getting it.
