Lines & x axis wording not showing on Line Graph

[jamesmf1982]

Hi All

I have a line graph that plots 6 points. Points on the diagram are fine but there is no line joining them up. Also on the x-axis the wording is not displaying as it would do if it were a bar graph.

Can anyone help?

Thanks

James

[Digvijay_Singh]

Can you share your Dimensions and expression details, looks like something wrong in selection of dims.

[Anil_Babu_Samineni]

Could be over lapping some where. Can you go properties and then Use Always TOP from Layout Layer or you may share the snap for better approach

[jamesmf1982]

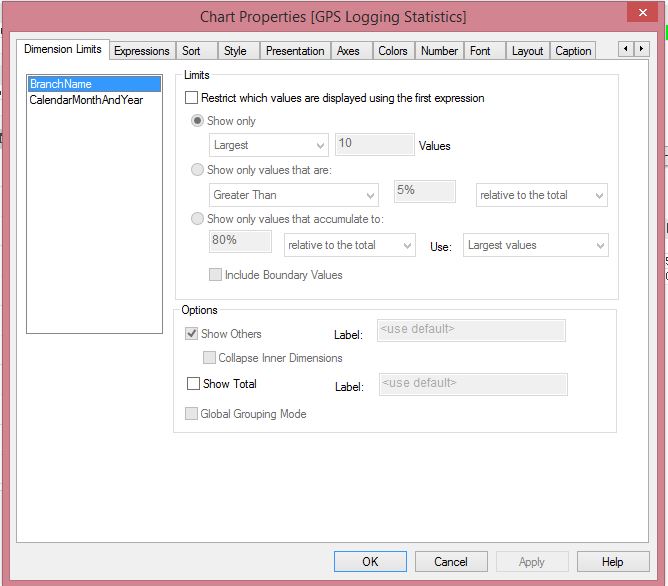

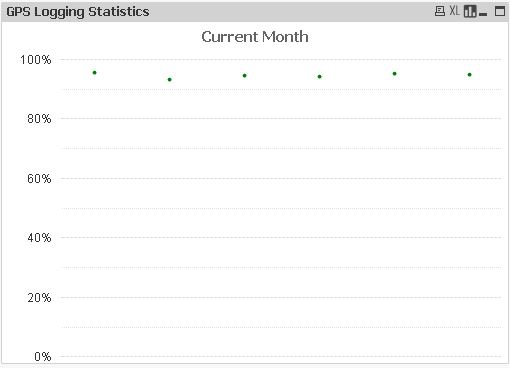

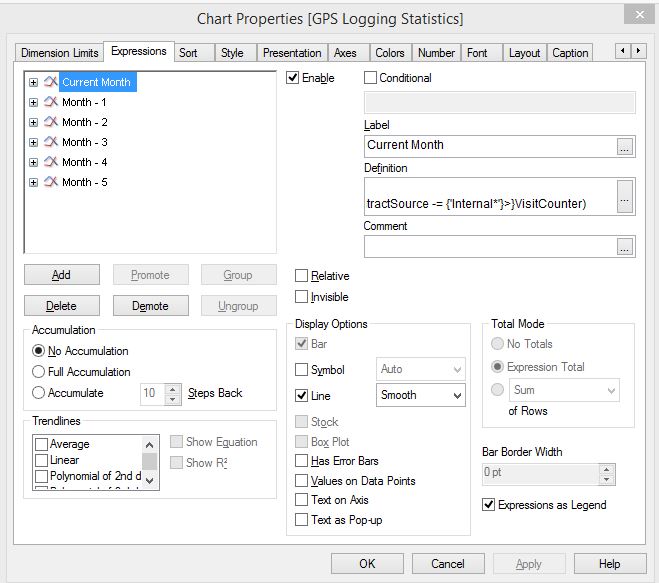

Thanks for having a look, please see below for the graph I currently have and then the dimensions and expressions

[jamesmf1982]

Hi, don't seem to have an Always on Top selection on the Layout window.

[Anil_Babu_Samineni]

Can you share snip shot of Axis Tab

[vinieme12]

the line is created based on the dimension associated, by creating multiple expressions you are basically creating 6 different lines(DOTS as you can see, because there is no associated dimension)

I suggest you use MonthName as dimension and change your expression to sum for last six months example, below

you should be able to see a line by MonthName for the 6 months

sum( {<  Date = {">=(Date#(Monthstart(Addmonth(Today(),-5)),'DD/MM/YYYY')

<=(Date#(MonthEnd(Today())),'DD/MM/YYYY')"}

>}Sales)

see this post for dates in set analysis

Dates in Set Analysis
