Please find the attached QVW and data set.
In the above straight table i would like to add different colors for each country bars.
For example,
Country1 - Blue
Country2 - Brown
Country3 - Black
Country4 - Red

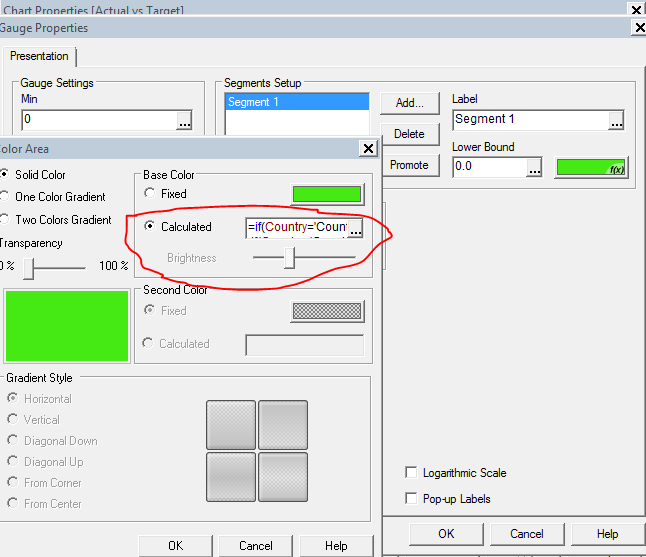

I tried giving a conditional statement in the gauge properties,
But it is not working. Still showing a single color (green).
Is there a way to show different colors for each country.
Thanks
Koushik
Hi ,
Check this,

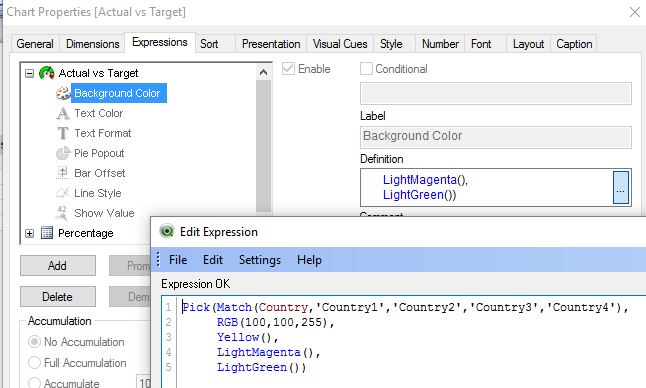

By Changing Back ground Color of your Expression,
and Making Linear Back Ground Color Transparent $()
HTH,
PFA
Hirish
Thanks for the reply.
Is it possible to change green color portion of the bar.

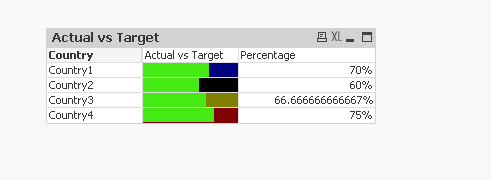

My requirement is shown in the below image,
Please let me know if more information is needed.
Thanks
Koushik
I don't think that we can provide multiple color in Mini chart setting. But there is work around. You can do something like below
You can set the back ground color for countries. In mini chart setting choose the indicator as Needle.
Make sure that color should be light so that black needle will be visible.
Hi,

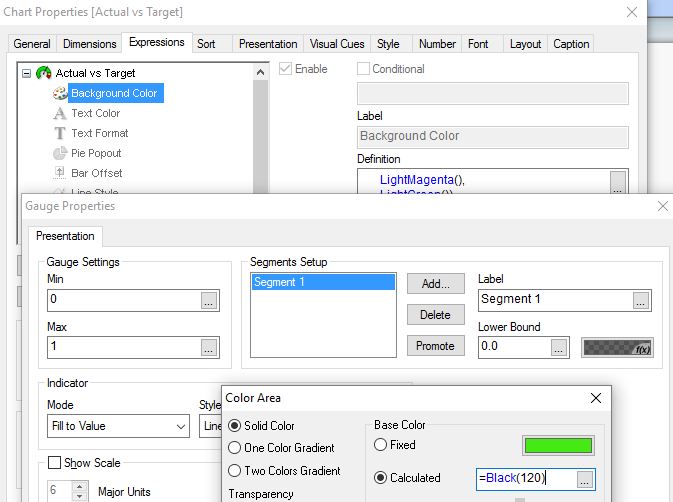

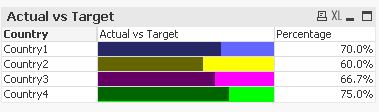

I guess you might not be able to define the linear gauge colours per country as this colour expression is not evaluated per dimension value, but you could define background colours per country (like Hirish already demonstrated) and use some transparent black as common linear gauge colour to get a darker shade of the background colours:
hope this helps
regards
Marco
