Guys,
I have a requirement like when I selected a bar in the bar chart, that data should be shown in a separate table hiding the bar chart and I have the below bar chart with the expression,
=Dual(Num(Count({<Customer_Name= E(Customer_Name),Destination_Format_Flag={'-1'},Mapping = P(Mapping),FieldName= P(FieldName)>}FieldName),'#,##0')&
' ('&if(num(Count({<Customer_Name= E(Customer_Name),Destination_Format_Flag={'-1'},Mapping = P(Mapping),FieldName= P(FieldName)>}FieldName)/vCount*100,'##.')>100,100,num(Count({<Customer_Name= E(Customer_Name),Destination_Format_Flag={'-1'},Mapping = P(Mapping),FieldName= P(FieldName)>}FieldName)/vCount*100,'##.'))&'%)',
Count({<Customer_Name= E(Customer_Name),Destination_Format_Flag={'-1'},Destination_Format_Flag={'-1'},Mapping = P(Mapping),FieldName= P(FieldName)>}FieldName))

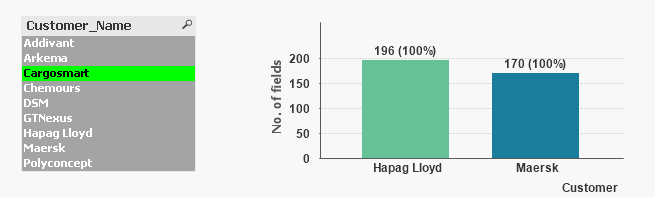

Plz help me to achieve this guys, in the above bar chart when I select that blue bar (Maersk) 170 fields to be loaded in a table.
Hi Siva,
You can try the following:
In the bar chart use a conditional expression like this:
GetSelectedCount(Customer_Name)=0
Then, in the table use this:
GetSelectedCount(Customer_Name)=1
So When you do a selection in the bar chart, the chart gets hidden and the table shows up and viceversa when you clear the field selections.
Hope that helps,
Carlos M

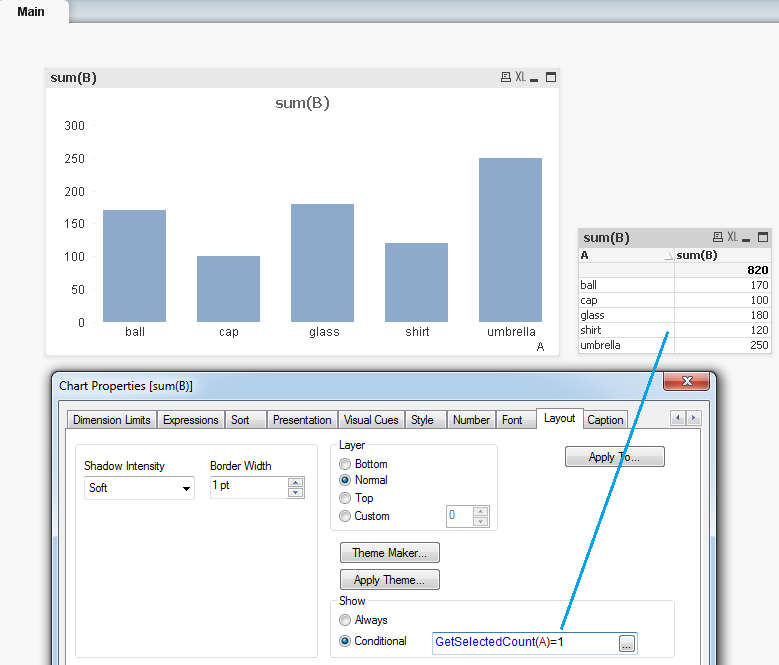

Please see the attached and modify accordingly...
Hi, Siva!
Like this?
