Transforming text in image inside data table

[#1]

Hello everyone,

I am new on QlikView and i am trying to make a table with large data more interesting.

My table has a field called "Status", with two distinct values: "Green" and "Red".

My idea is to display this information with colors, and not in text, as shown below:

Anyone knows if it is possible to do that on QlikView?

Regards,

[sunny_talwar]

It is possible to do this. Check this link out: Display images in straight table‌ and this: Images as column data in straight table

[Anonymous]

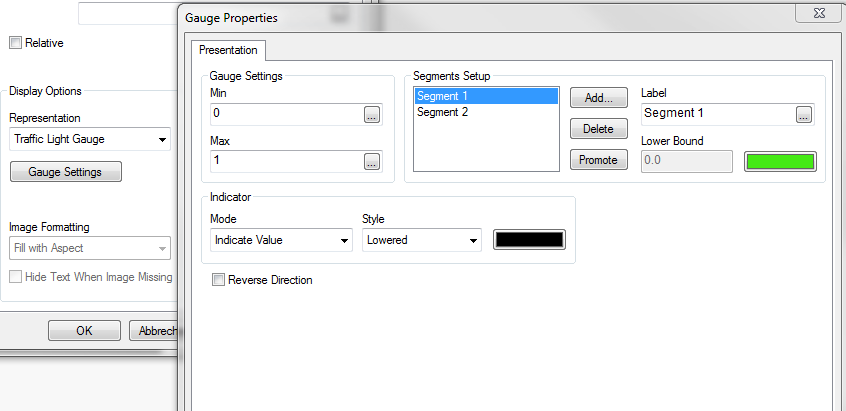

On the Expressions tab of your Chart Properties set the expression Display Options to have a Representation of Taffic Light Gunge, and set the Gauge Setting appropriately for your needs.

[Anonymous · Accepted solution]

you can define the representation of your Expression as Traffic Light Gauge and define setings

[sunny_talwar]

and to load your own images, check this out: Bundle Info Load

[#6]

Hello,

Thanks you all for the tips.

I have made the Traffic Light Gauge as you suggested, and now i have a new problem:

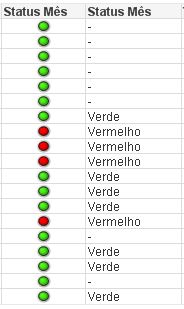

All values from the field "Status" that are NULL, it shows the green light, as you can see below:

I would not like to display the green light when the value is null.

Someone, please can help me to solve this?

Regards,

[sunny_talwar]

If you want to not show green or red, you can try this:

If([Status Mes] > 0, YourExpressionForTrafficLightGauge)

[#8]

You can create custom column in your script as expression given below and then you can use trafficlight min and max.

if(Status='Green',1,if(Status='Red',0,Null())) as StatusFlag
