Hi I made a bar charts without dimensions because each bar uses calculation from different table and I cannot use dimensions.
the bar chart looks find but I want to be able to put a dimension like labels below the bar charts.
so the above screenshot, A,B,C is obviously not a dimension but for the sake for explaning i just put it there. and on the right side of the chart there is a legend that I named A, B, and C. Is there any way that I can put a dimension like legend right under each bars?
Thanks!
Hi David,

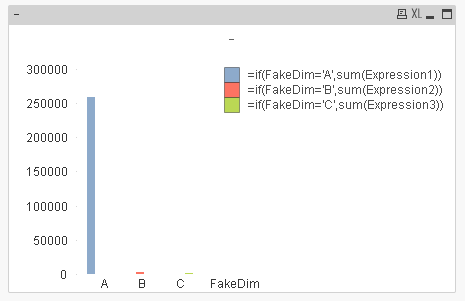

What about using an InLine table to dummy up A, B, C as a dimension similar to below:
I've attached the .qvw for the above example,
Does this help?
Thanks!
Stan
Hi David,
What about using an InLine table to dummy up A, B, C as a dimension similar to below:
I've attached the .qvw for the above example,
Does this help?
Thanks!
Stan

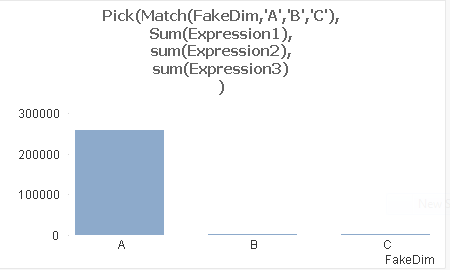

You can use what Stan has suggested or use ValueList Function and follow the same Equation as Stan.
Inline tables would be faster.
why don't you use just 3 expressions?

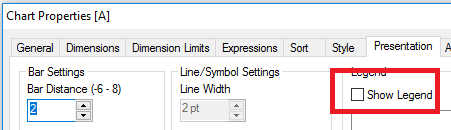

then disable the legend

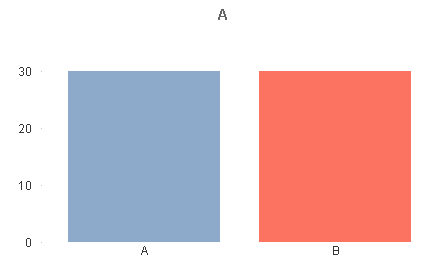

and it looks like that:
then uncheck "show title in chart"

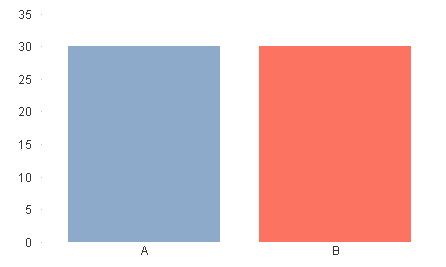

result:
Hi Stan! Thank you this worked!
I just have one following question.
for each fake dimension I am going to use three expressions.
THis is to compare the three dimensions based on how each dimension can be classified.
in order to do that I want the same color coding for each dimension. but right now all the colors are different.
is there any way i can use the same color coding for each dimension so that the stacked chart can compare the components of each bars?
Thanks!!!!

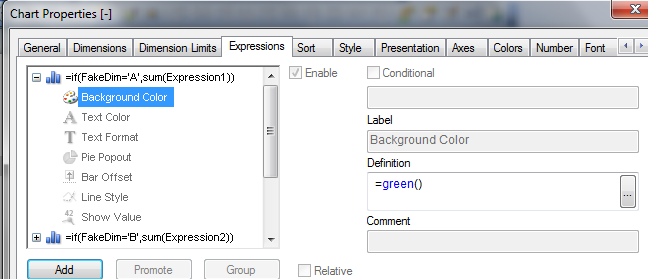

You can manually set the bar color for each expression similar to the following:
In the attached qvw the top bar is set to red and the bottom part of the bar is set to green.
Is this what you need?
Stan
