chart display into the sheet

[Anonymous]

Hi,

I have 4 objects(charts) into a sheet. I used GetSelectedCount()>0 in chart 2,3 and 4.

All the functions working properly but when all the 4 charts are diplaying if i click on 1 chart then 2nd chart not showing 3,4 are showing.i want to change it if anyone click on 1st then 1st will diplay and if anyone click on 3rd then 1,2,3 will show.

Please let me know the process.

[Gysbert_Wassenaar]

I don't understand your problem. Can you post a qlikview document that demonstrates it?

[Anonymous]

I have attached application and screenshot.

[rubenmarin]

Hi Suman, not sure if you want this, but you can change the conditional show of chart 3 to:

GetSelectedCount(@_Status)>0 and GetSelectedCount(@_OPCO)>0

and chart 4 to:

GetSelectedCount(@_Severity)>0 and GetSelectedCount(@_Status)>0 and GetSelectedCount(@_OPCO)>0

[Gysbert_Wassenaar]

This may come as a suprise, but the getselectedcount function counts the selected values in a field, not the possible values. If you want GetSelectedCount(@_Status)>0 to be true then you need to select a value in the @_Status field. Selecting values in other fields won't help.

[Anonymous]

Hi Ruben,

Thanks for your reply.

If you check my application one tabular chart showing into last level.

But somehow it's going back of all the objects.

How can i bring it front?

[rubenmarin · Accepted solution]

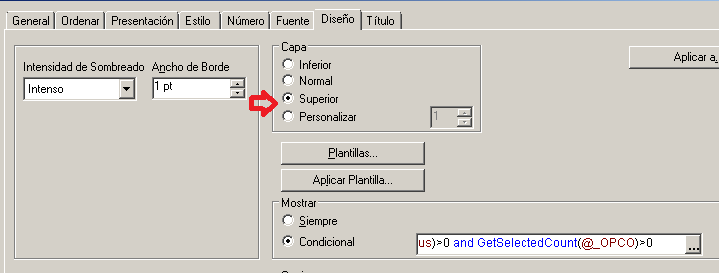

Hi Suman, in Design (or layout) tab, you can change the 'layer' to 'Superior' or set a number, also in this table you may change the contional show to:

GetSelectedCount(@_Category)>0 and GetSelectedCount(@_Severity)>0 and GetSelectedCount(@_Status)>0 and GetSelectedCount(@_OPCO)>0
