Solved: drill down - table - Qlik Community

Report Inappropriate Content · ‎2016-10-04

Hey everyone, how is it going?

I have an issue, let me show you: My data base is something like that:

Product	Date	RM 1	RM 2	RM 3	RM Total
A	01/01/2016	10	5	60	75
B	01/01/2016	15	10	55	80
C	01/01/2016	20	15	55	90
D	01/01/2016	25	20	60	105
A	02/01/2016	30	25	85	140
B	02/01/2016	35	30	115	180
C	02/01/2016	40	35	150	225
D	02/01/2016	45	40	190	275
A	03/01/2016	50	45	235	330

I want to make a pivot table, where I can show by product, how much was spent of raw material and if the users wants, they can open by kind of RM (RM 1, RM2 and RM3) .

I already appreciate the attention.

Kind regards, Luiz Bisco

vinieme12 · ‎2016-10-06

Use the below expression

and check partial sums for the first two dimensions

=if(Dimensionality()=2,Pick(MATCH(Process,'Process 1','Process 2','Process 3','Process 4','Process 5','Process 6','Process 7','Process 8'),
sum([Process 1])
,sum([Process 2])
,sum([Process 3])
,sum([Process 4])
,sum([Process 5])
,sum([Process 6])
,sum([Process 7])
,sum([Process 8])
)

,if(Dimensionality()=1,

sum([Process 1])+sum([Process 2])+sum([Process 3])+sum([Process 4])+sum([Process 5])+sum([Process 6])+sum([Process 7])+sum([Process 8])

, if(Dimensionality()=0,sum(TOTAL [Process 1])+sum(TOTAL [Process 2])+sum(TOTAL [Process 3])+sum(TOTAL [Process 4])+sum(TOTAL [Process 5])+sum(TOTAL [Process 6])+sum(TOTAL [Process 7])+sum(TOTAL [Process 8]))

)
)

Vineeth Pujari
If a post helps to resolve your issue, please accept it as a Solution.

View solution in original post

sunny_talwar · ‎2016-10-04

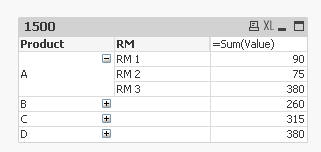

Like this?

If this looks good, then you will have to use CrossTable to transform your data

Table:

CrossTable (RM, Value, 2)

LOAD Product,

Date,

[RM 1],

[RM 2],

[RM 3]

FROM

[https://community.qlik.com/thread/235208]

(html, codepage is 1252, embedded labels, table is @1);

Report Inappropriate Content · ‎2016-10-04

Sunny, there's a problem. That data is kind of big. I have a table with 96 fields, 43 are dimensions and the others are capeble of calc.

vinieme12 · ‎2016-10-04

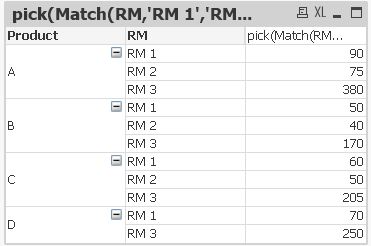

Well you can maintain your data structure and FAKE a pivot like this, with a mapping table

////////////////////////////////////////////////////////////////////////////////////

Dimension

Product

RM

Expression:

pick(Match(RM,'RM 1','RM 2','RM 3'),

SUM([RM 1]) , SUM([RM 2]) , SUM([RM 3]))

////////////////////////////////////////////////////////////////////////////////////

Fact:

LOAD * INLINE [

Product,Date,RM 1,RM 2,RM 3,RM Total

A,42370,10,5,60,75

B,42370,15,10,55,80

C,42370,20,15,55,90

D,42370,25,20,60,105

A,42371,30,25,85,140

B,42371,35,30,115,180

C,42371,40,35,150,225

D,42371,45,40,190,275

A,42372,50,45,235,330

];

Mappingtable:

LOAD * INLINE [

Product,RM

A,RM 1

B,RM 1

C,RM 1

D,RM 1

A,RM 2

B,RM 2

C,RM 2

D,RM 3

A,RM 3

B,RM 3

C,RM 3

D,RM 3

];

Vineeth Pujari
If a post helps to resolve your issue, please accept it as a Solution.

Report Inappropriate Content · ‎2016-10-05

I did on your way, it works, but I can't 'contract' the dimension.

vinieme12 · ‎2016-10-05

I did this in QV12 , what version of QV are you using?

Vineeth Pujari
If a post helps to resolve your issue, please accept it as a Solution.

Report Inappropriate Content · ‎2016-10-05

11.2, this data is the real scenario:

Date	Machine	Process 1	Process 2	Process 3	Process 4	Process 5	Process 6	Process 7	Process 8	Production
01/01/2016	MACHINE 1	200	20	30	77	50	60	70	72	579
01/01/2016	MACHINE 2	99	30	200	10	70	82	491
01/01/2016	MACHINE 3	10	20	30	40	50	60	70	40	320
01/01/2016	MACHINE 4	66	60	70	65	261
01/01/2016	MACHINE 5	10	20	30	40	50	2	70	32	254
01/01/2016	MACHINE 6	10	55	30	40	44	36	215
01/02/2016	MACHINE 1	308	31	46	118	77	92	108	111	891
01/02/2016	MACHINE 2	-	152	46	-	308	15	108	90	719
01/02/2016	MACHINE 3	15	31	46	62	77	92	108	62	492
01/02/2016	MACHINE 4	-	102	-	-	-	92	108	43	345
01/02/2016	MACHINE 5	15	31	46	62	77	3	108	49	390
01/02/2016	MACHINE 6	15	85	46	62	-	-	68	39	315
01/03/2016	MACHINE 1	473	47	71	182	118	142	166	171	1.371
01/03/2016	MACHINE 2	-	234	71	-	473	24	166	138	1.106
01/03/2016	MACHINE 3	24	47	71	95	118	142	166	95	757
01/03/2016	MACHINE 4	-	156	-	-	-	142	166	66	530
01/03/2016	MACHINE 5	24	47	71	95	118	5	166	75	601
01/03/2016	MACHINE 6	24	130	71	95	-	-	104	61	484

vinieme12 · ‎2016-10-05

i'll try in 11.2 and let you know

Vineeth Pujari
If a post helps to resolve your issue, please accept it as a Solution.

vinieme12 · ‎2016-10-05

Make sure you have the below UN-Checked

1) Always fully expanded

2) Suppress Missing Values

Attaching app for reference, made in QV 11.2

Vineeth Pujari
If a post helps to resolve your issue, please accept it as a Solution.

Report Inappropriate Content · ‎2016-10-05

that's the problem, I have to contratc, it can't be fully expanded all the time. :S
