how to separate chart from one to multipul

Hello,

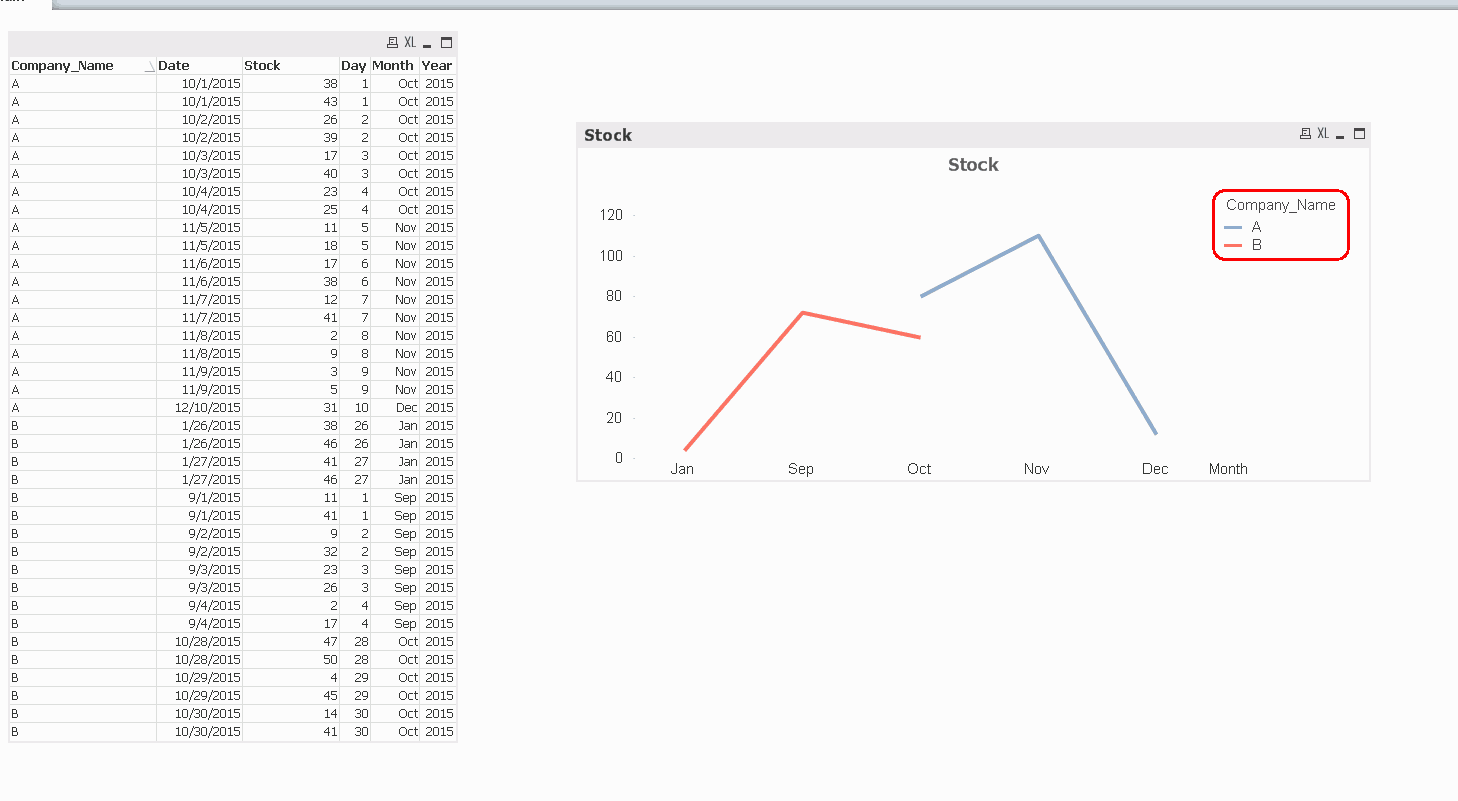

I want to display my chart by company and company. Pls see below view, company A and company B are mapped in same chart,

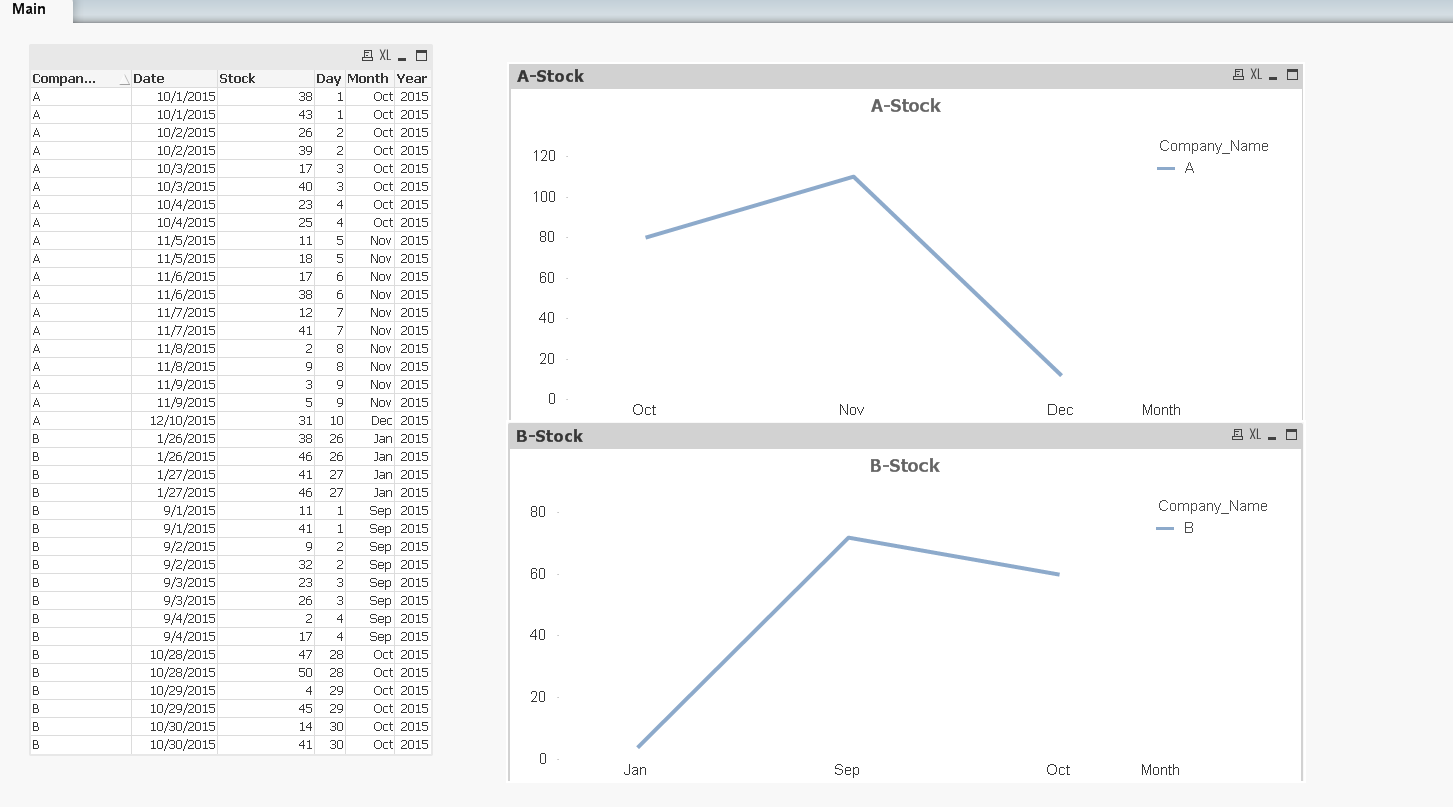

but i want to separate this chart to two charts since i want to read chart view by company and company like below desgined image:


where i could change in certain properties ?

Thanks&Regards,

Jessica

7 Replies
MK_QSL
MVP
MVP

Use Trellis Chart... You can find the same in Dimension Tab

awhitfield
Partner - Champion
Partner - Champion

Hi Jessica,

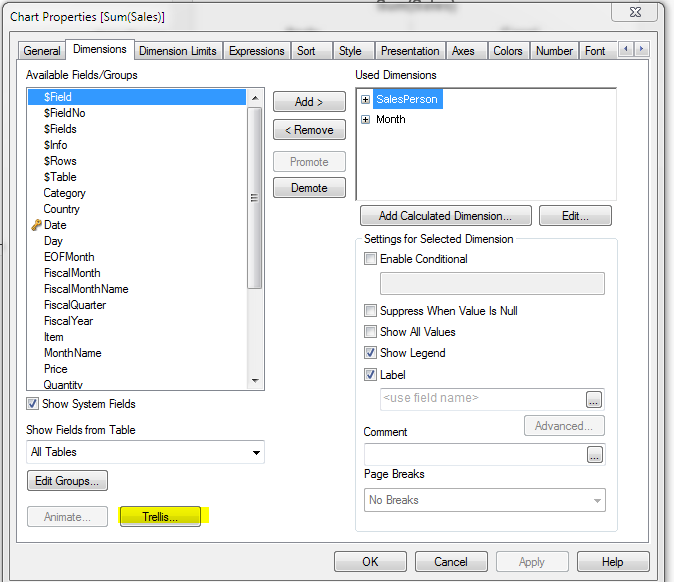

use the TRELLIS option :

Simple example qvw attached to demonstrate

HTH - Andy

Not applicable
Author

correct, it is working, thanks.

Not applicable
Author

Hi,

I found it by your guidence, thank you !

Regards,

Jessica

Not applicable
Author

Hi Andy,

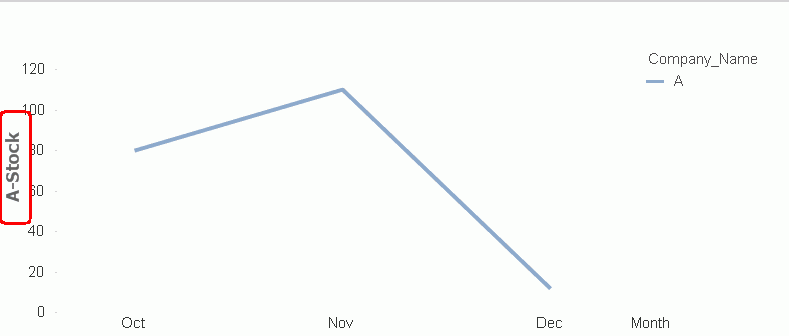

Further question, how to change the laber ' A-Stock' from top to left side of the chart like below,  Snap3.gif

Thanks

Jessica

awhitfield
Partner - Champion
Partner - Champion

Sorry Jessica, I don't think that you can

Andy

MK_QSL
MVP
MVP

Kindly close the thread by selection correct answer.
