ssriramin19
Contributor III
Contributor III

label color change

Please help me in how to change the color of the label as mentioned below.

This is not for all the dimension labels only for the selected.

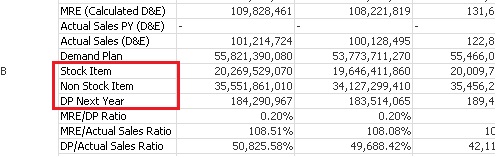

As mentioned above only the highlighted label names needs to be colored.

How this needs to be achieved?

Thanks

Sriram

22 Replies
qlikmsg4u
Specialist
Specialist

Expand Dimension > Text color

=If(YourDimension='Stock Item' or YourDimension = 'Non Stock Item' or YourDimension = 'DP Next Year',Red(),Green())

or

=If(Match(YourDimension,'Stock Item','Non Stock Item', 'DP Next Year'),Red(),Green())

gautik92
Specialist III
Specialist III

in dimesion tab click on + in dimension and in text color add this expr

=if(Fieldname='Stock Item',RGB(255,0,255))

tresesco
MVP
MVP

Text Color expression, like:

If(Match(DimensionName, 'Stock Item', 'No Stock Item','DP Next Year'), LightRed())

krishna20
Specialist II
Specialist II

Hi,

Activate Grid Selection in sheet. Then right click on label where you need to change color,then select custom format cell. You can achieve by this.

prajapatiamar38
Creator II
Creator II

Hi

GO to dimension click plus(+) sign

select text Color write expression:

If(fieldname='Stock Item',Red())....etc

ali_hijazi
Partner - Master II
Partner - Master II

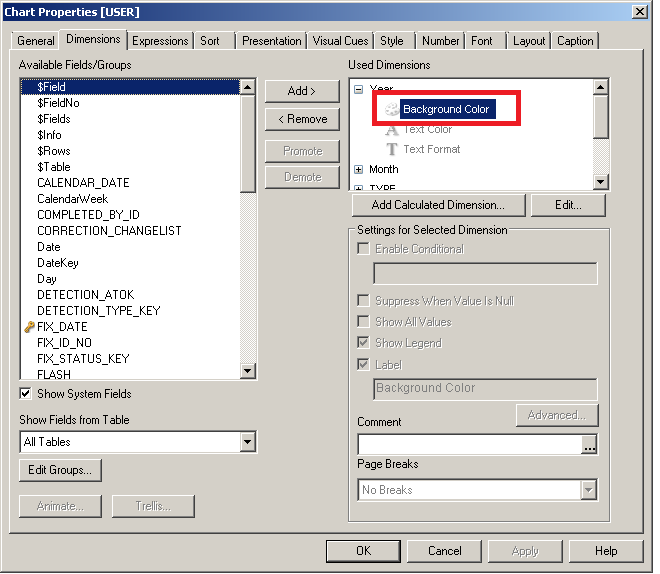

in Dimensions tab choose back color as shown above and put your condition

it will be something like this:

if (wildmatch([Column_name],'stock item','non stock item','dp next year')>0, rgb(255,0,0))

I can walk on water when it freezes
ssriramin19
Contributor III
Contributor III
Author

The above three fields refers to expression label. many rows and columns has been moved to get the above mentioned structure.

for the mentioned three expressions various formulas are written to compute those three expression.

How this needs to be achieved?

since when I click the '+' sign near the expression and selecting text color  "Stock Item" all the values corresponding to stock item are turning to red color .

But I want the label only to be made to red for the above mentioned three expressions?

Please guide me on this

Thanks

Sriram

qlikmsg4u
Specialist
Specialist

You can colour a column with the "background colour" option in expressions or dimensions tab. But I don't think you can just colour a column header.

ssriramin19
Contributor III
Contributor III
Author

it is not in the dimension ,. It is the expression .Stock Item is the label for the expression.I need  to change only the label for the expression.
