Solved: manipulating labels in the x-axis - Qlik Community

Report Inappropriate Content · ‎2014-12-05

Hi,

I have big integer keys on the x-axis, like 100032, 2000012 etc

Is there a way I could sort these and display just 1, 2, 3 and so on in order instead of their actual codes.. I still want these keys to work as they are working, I just want to have 1 instead of 100032, 2 instead of 2000012 etc for visualization purposes..

is there a way to achieve this?

Thanks!!

stigchel · ‎2014-12-05

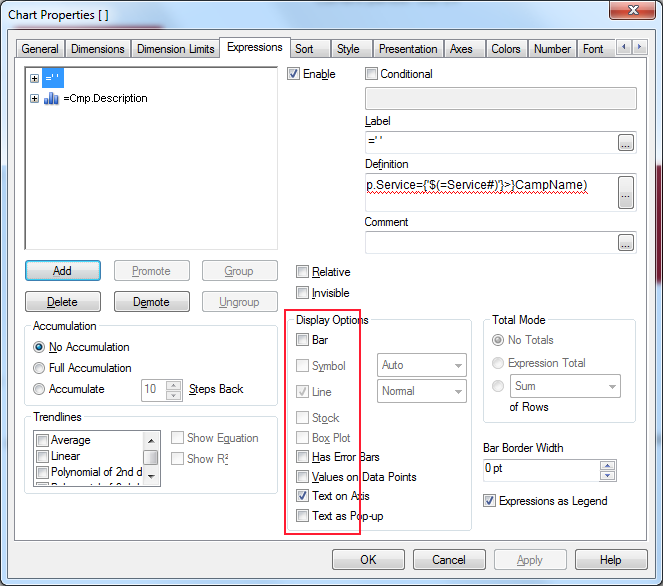

Yes you can, disable the show legend of the Dimension, add an expression (make it the first by promoting it) and in the display options check text on axis and deselect any other display options like bar/line/symbol.

For the expression you can use an expression that will give you the required numbering (rowno()/columnno(), rank(..))

View solution in original post

Gysbert_Wassenaar · ‎2014-12-05

Maybe by using something like dual( aggr(rowno(),MyDim),MyDim) as a calculated dimension.

talk is cheap, supply exceeds demand

Report Inappropriate Content · ‎2014-12-05

Hi yukti,

try this

add calculated dimension like (your_dimension/100000)

then in numbers tab check the integer checkbox to display it as a whole value!

or else use symbols of million,thousands!

hope it helps!

Regards

Barathiraja

Report Inappropriate Content · ‎2014-12-05

Hi Gysbert,

I thought it would work, but it aggregates everything and shows only one data point..

kushalthakral · ‎2014-12-05

Hi yukti

you can use left() function and use 1st digit of number to use it as a label in a script

Regards

Kushal T

Report Inappropriate Content · ‎2014-12-05

hey no actually keys have different values as in they could also be like 1000806, 1000807, 1000808 and so on...

Report Inappropriate Content · ‎2014-12-05

or maybe if there's a way I could display an expression on the x-axis?

Report Inappropriate Content · ‎2014-12-05

You can use a map table which contains the dimension and a short form of the dimension. See the attached example

Report Inappropriate Content · ‎2014-12-05

Use the short form of the dimension in your chart and it will show the correct values from the main table.

Report Inappropriate Content · ‎2014-12-05

it might sound a little weird to understand, but this is the requirement.. no matter what the key is, the numbers should be displayed in sequence .. 1 for first key, 2 for second key, 3 for third key... and so on...
