mini chart totals

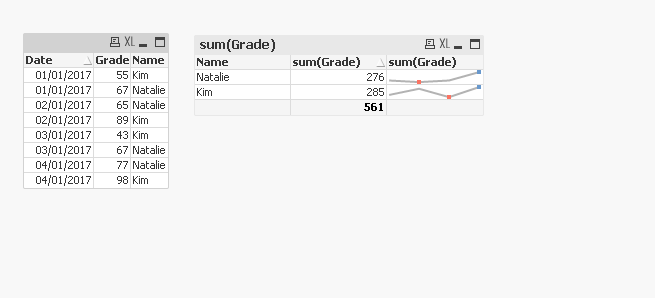

I am trying to add a mini chart in the total , I know doable from https://community.qlik.com/thread/265641 where Sunny managed to do it, but I do not managed to find out how it was done, any idea what are the steps?

LOAD * INLINE [

    Date, Name, Grade

    01/01/2017, Kim, 55

    01/01/2017, Natalie, 67

    02/01/2017, Kim, 89

    02/01/2017, Natalie, 65

    03/01/2017, Kim, 43

    03/01/2017, Natalie, 67

    04/01/2017, Kim, 98

    04/01/2017, Natalie, 77

];

Many thanks,

Raphael


1 Solution

Accepted Solutions
Anonymous
Not applicable
Author

You already have it setup? 😕

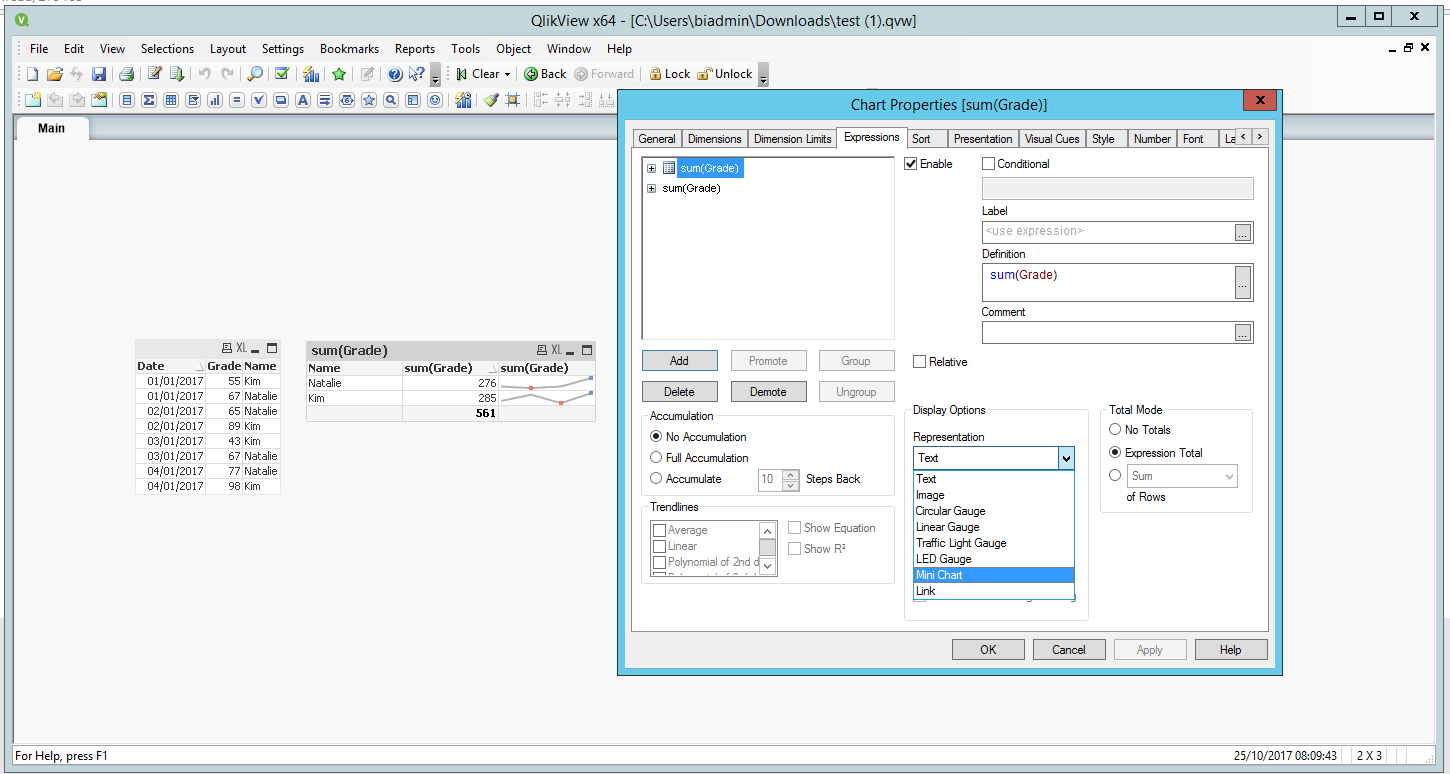

You already have the solution in your attachment. Go to: Properties of the Chart > Presentation > Display Options > Representation.


View solution in original post

1 Reply
Anonymous
Not applicable
Author

You already have it setup? 😕

You already have the solution in your attachment. Go to: Properties of the Chart > Presentation > Display Options > Representation.
