stacked barchart

[Anonymous]

Hi

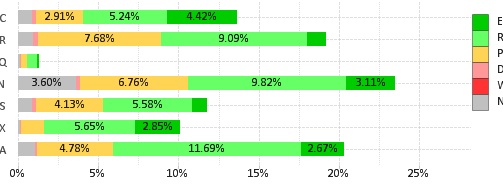

I have stacked bar chart with 2 dimension and one expression.

In above chart we want to display percentage for bars 100% similarly for all the bars.

Suggest some ideas, if i am creating a different charts for each dimension field for ex: C(dimension field in chart) then i am getting the output but it is not a suitable way. As per requirement it should display 100% for all dimension field and in same chart.

Thanks

Manish Madan

[MK_QSL · Accepted solution]

Your Expression should be like below

SUM(YourMeasureFieldName)/SUM(Total <YourFirstDimension>YourMeasureFieldName)

[Anonymous]

Hi Manish

Please find attached sample app.

Can you please help.

Thanks

[MK_QSL]

Attachment Missing !!

Or may be for authentication 😞

[Anonymous]

sorry,

PFA..

[MK_QSL]

Not clear from you apps. What you want to achieve? Please clarify !

Update : use below expressions

=count({<[Entity_Emp_Scale]= >}if((Zone)='A',Entity_Emp_Scale))/count(TOTAL {<[Entity_Emp_Scale]= >}if((Zone)='A',Entity_Emp_Scale))

=count({<[Entity_Emp_Scale]= >}if((Zone)='M',Entity_Emp_Scale))/count(TOTAL {<[Entity_Emp_Scale]= >}if((Zone)='M',Entity_Emp_Scale))

OR

=count({<[Entity_Emp_Scale]= >}if((Zone)='A',Entity_Emp_Scale))/count(TOTAL <Zone> {<[Entity_Emp_Scale]= >}if((Zone)='A',Entity_Emp_Scale))

=count({<[Entity_Emp_Scale]= >}if((Zone)='M',Entity_Emp_Scale))/count(TOTAL <Zone> {<[Entity_Emp_Scale]= >}if((Zone)='M',Entity_Emp_Scale))

or Single Expression (Thanks Ruben Marin)

COUNT({<Zone = {'A','M'}>}Entity_Emp_Scale)/COUNT(TOTAL <Zone> {<Zone = {'A','M'}>}Entity_Emp_Scale)

[rubenmarin]

Hi Manish,

Ckeck attached file and see if that's what you want.

I used the formula Manish said and with a bit changes on dimensions and expressions.

[Anonymous]

ok..

I have attached another app same as screenshot i shared earlier in that i want for each dimension field data share appear out of 100%.

Don't know why i am facing issue in uploading the file,can u share ur email address.

[MK_QSL]

Use below expression

Count(Entity_Emp_Scale)/Count(Total <Zone> Entity_Emp_Scale)

Untick Relative...

go to number tab and tick show in percentage

UPDATE : File Enclosed..

[Anonymous]

Hi Ruben,

can you please give a try with my 2nd attachment.

Thanks

Manish Madan
