want to reduce date data labels on X-axis

[#1]

HI

I have scenario

I have date fields for 10 years.I am showing month wise in X-Axis

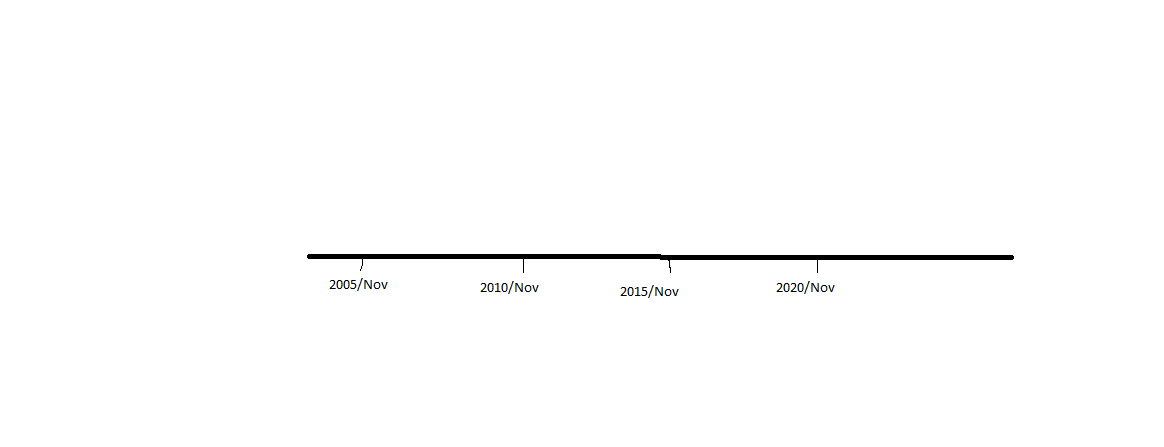

I want to reduce those data labels like display for every 5 years  one label in  X-axis  below

Please find the attached Qvw for sample data

[#2]

I think it would be easier if the x-axis is in number format.

If it is in number format, we can modify axis in axis tab. To change Dimension axis as continuous and define Static Step.

[#3]

Hi ZHm

Is there any option using the same code above?

Thiru

[#4]

Maybe to use calculated condition =date#(Year,'YYYY/MMM'), which is to change field Year to number format.

If the axis becomes number in the chart, may change the number format in tab, Number.

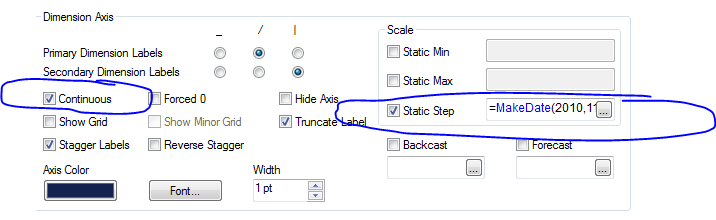

To shown grid of X axis every 5 years, may change the dimension axis to continuous and define the static step as =MakeDate(2010,11,1)-MakeDate(2005,11,1)

[#5]

Hi youyunjupiter,

I have done the same in my application but it is showing 2011/jan,2011/jul   2012/jan,2012/july  like that

i want 2011/Nov

          2012/Nov

          2013/Nov

like that.Can you please implement i attached file i.e Adding less lables.qvw and shart it

Thanks in advance

Thiru

[#6 · Accepted solution]

Hi, do you wanna modify static step and try? I used 364.8 and then it shows Nov..

[#7]

Hi

It's working now.Thanks for your solution.

If you aware of thread 226450 please do the needful

Thanks

Thiru
