[ASK] sum total not show

Dear Qlik Master,

I have a req that need to split dimension into 2 chart using calculated dimension, and have to calculate actual value of 1 dimension to compare to another dimension.

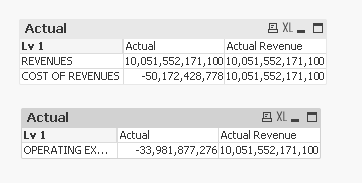

simulation like below :


My calculated condition for above screenshot is :

if([Group Lv1]='REVENUES' or [Group Lv1]='COST OF REVENUES',[Group Lv1])

And my actual rev expression is :

Sum(TOTAL<YEAR>

{<

  YEAR={'$(=$(vMaxYear))'},

  [PL Group Lv1]={'REVENUES'}

>}

MOVEMENT_BALANCE)

For above screenshot there is no issue, but when i create my second chart with different definition of dimension, my actual rev doesn't show up.

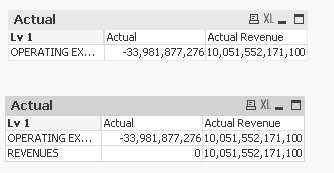

Screenshot is below :


my calculated dimension condition for above (second screenshot) is :

if([Group Lv1]='OPERATING EXPENSES',[Group Lv1])



For my both chart, i use suppress when value is null.

But my actual rev doesn't show up in my second chart.

Is there any solution?



Thank You,

Best Regards,

1 Solution

Accepted Solutions
sunny_talwar

If I remove that, you will see two rows


You can use an if statement to do that same thing.

If([Lv 1] = 'OPERATING EXPENSES', Sum(TOTAL<YEAR>{<YEAR={'2016'}, [Lv 1]={'REVENUES'}>}Actual))

But I prefer using expressions without if statements and that's why multiply with that expression

View solution in original post

13 Replies
shraddha_g
Partner - Master III
Partner - Master III

what expression you have used for 2nd chart

sunny_talwar

Would you be able to share a sample to test this out?

stabben23
Partner - Master
Partner - Master

Change calculation to this maybe.

Sum(TOTAL<YEAR>

{<

  YEAR={'$(=$(vMaxYear))'},

  [PL Group Lv1]={'OPERATING EXPENSES'}

>}

MOVEMENT_BALANCE)

rendiyan
Partner - Creator
Partner - Creator
Author

Dear Shraddha,

My expression for second chart is the same as my first one.

Sum(TOTAL<YEAR>

{<

  YEAR={'$(=$(vMaxYear))'},

  [PL Group Lv1]={'REVENUES'}

>}

MOVEMENT_BALANCE)

rendiyan
Partner - Creator
Partner - Creator
Author

Hi Staffan,

The objection why i show Actual Rev is to calculate every actual of each group to actual of revenue.

So the general formula is :

[Actual of each Group] / [Actual of Group Revenue]

Thank You

rendiyan
Partner - Creator
Partner - Creator
Author

Hi Sunny,

PFA.

Thank You

stabben23
Partner - Master
Partner - Master

sum({<[Group Lv1]={'OPERATING EXPENSES'}>}MOVEMENT_BALANCE)/Sum(TOTAL<YEAR> < YEAR={'$(=$(vMaxYear))'}, [PL Group Lv1]={'REVENUES'},  >}  MOVEMENT_BALANCE)

And no calculated Dimension, just  [PL Group Lv1]

Anonymous
Not applicable

Try

sum({1<YEAR= {'2016'},[PL Group Lv1]={'REVENUES'}} MOVEMENT_BALANCE)

with hardcoded Year then substitute with variable.

sunny_talwar

Try this

Dimension

Lv 1

Expression

Sum({<[Lv 1] = {'OPERATING EXPENSES'}>}Actual)

Sum(TOTAL<YEAR>{<YEAR={'2016'}, [Lv 1]={'REVENUES'}>}Actual) * Avg({<[Lv 1] = {'OPERATING EXPENSES'}>}1)
