Bar graph out of place

[#1]

Hi, I have a regular bar chart with dimension Country containing values: {DK, FI, NO, SE}

The values for each country are calculated in variables.

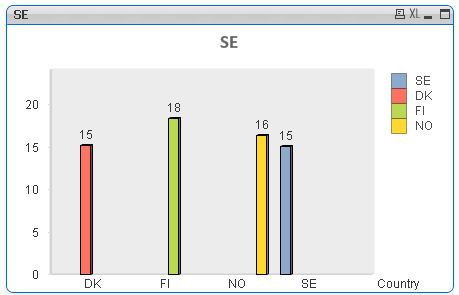

My question is why my graph looks all out of sync? Why is for example the yellow bar way to the right and the blue one is too much to the left.

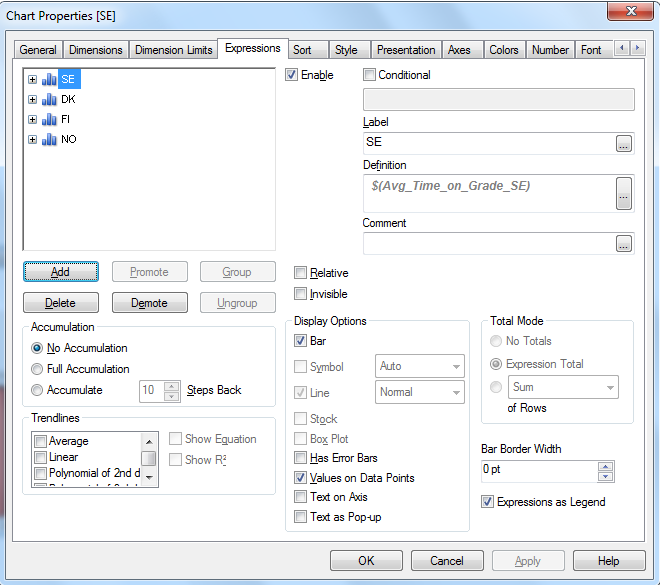

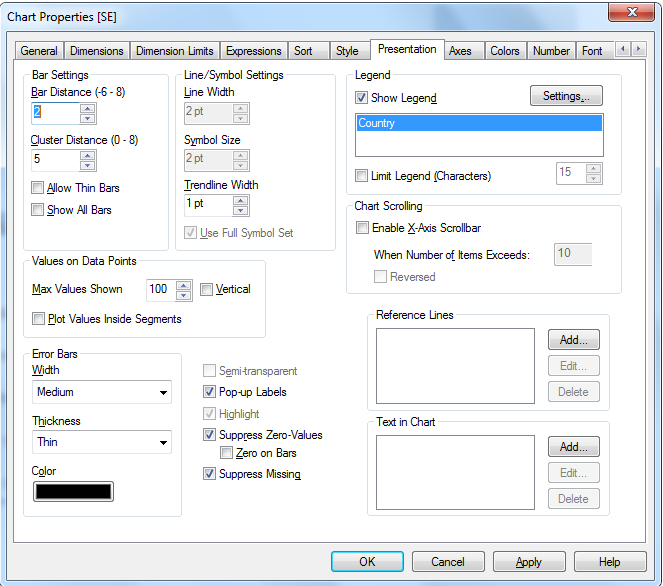

Im attaching some pics of my settings...

Thank you for any kind of help!

BR

Mikael

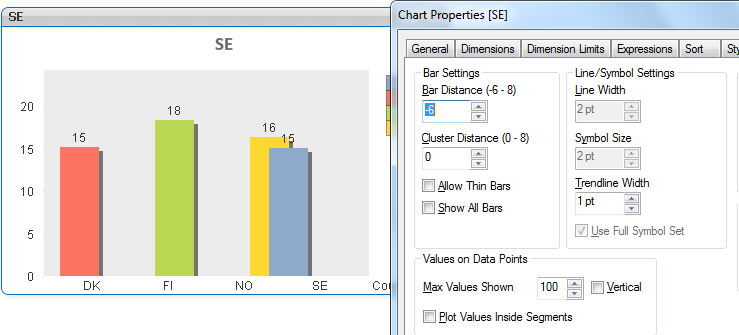

If I change Bar distance to -6 I get it like this:

[swuehl]

It looks like you are also using a dimension Country, is this correct? [edit: I see, that's what you posted in your first line]

Since your 4 expressions will only produce output for 1 dimension value each, you'll get an effect like above (i.e. the gaps are due to 'missing bars' for the other 3 expression per country dimension value).

Try removing the dimension completely (or change your 4 expression to 1).
