Change Symbol Colour

[Anonymous]

Hi All,

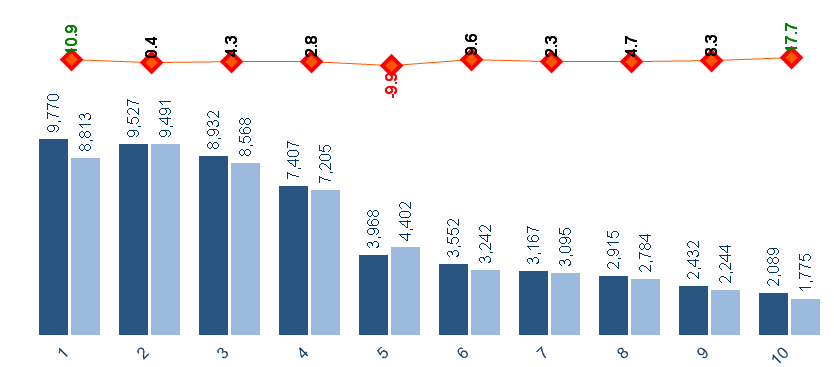

I am creating combo chart wherein Primary Axis is Bar chart and Secondary Axis is line Char with Symbol.

Now I want to change only Symbol colour. Is it possible in Qlikview?

[Anonymous]

I am not getting the desired result

[prma7799]

Can you please share sample application ...

[Anonymous]

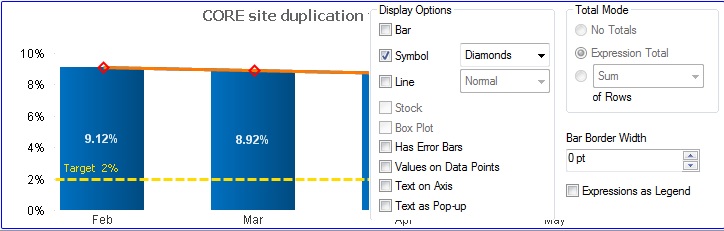

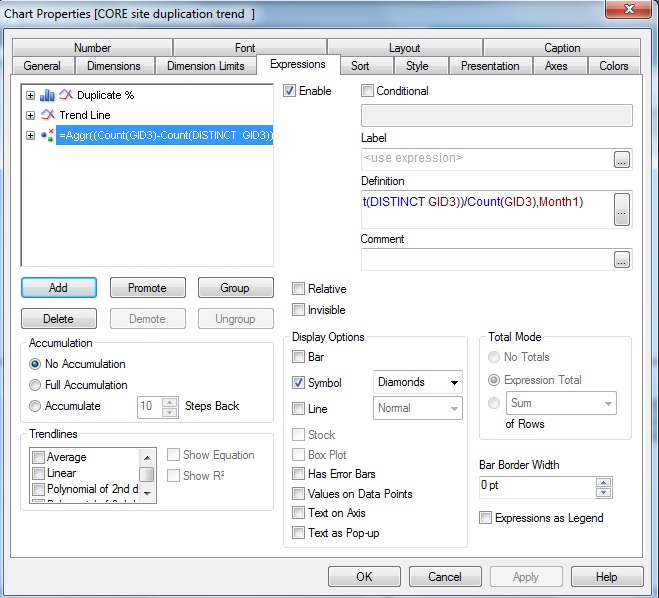

I have used 3 expression

1) First for Bar chart that is duplicate percentage

2) Line chart that is duplicate of First Expression

3) Symbol is duplicate of Second Expression ( Diamonds )

[Anil_Babu_Samineni]

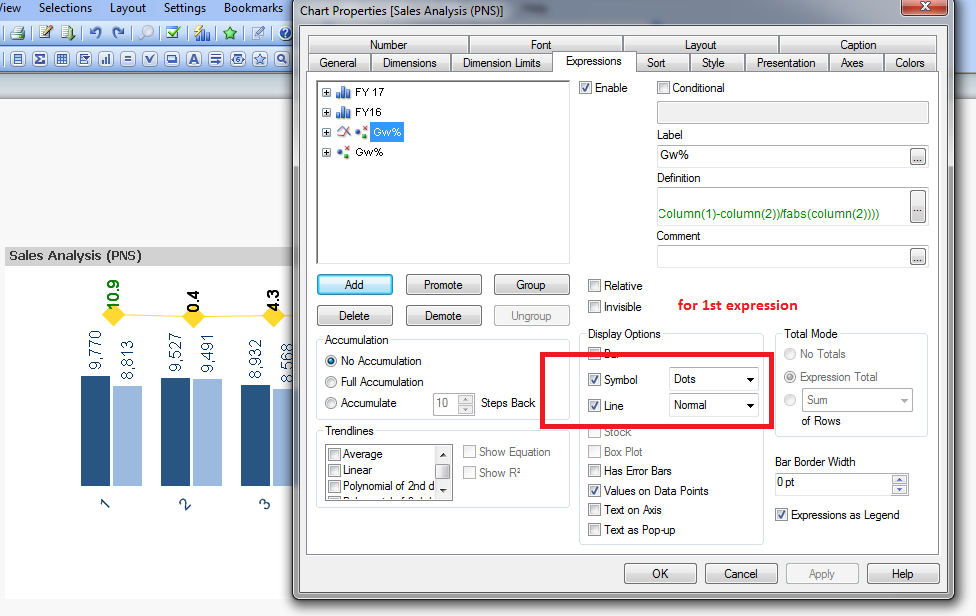

Can you cross check what P M shared the qvw. Seems,He checks the Dots symbol for one expression. From your end you can do same for 2nd expression

[Anonymous]

Thanks Anil,

I don't have access for Qvw file as I am using Personal Edition.

So i request you to share the steps with me.

We are in process,  soon we will go for licence once we are familiar with the QlikView.

[prma7799]

Hi Bijay,

As i said

"Create two identical expressions in your line chart.  For one of them, use display option line, and for another symbol.  For the symbol version, use conditional background color (see attribute expresions) according to your rules, whatever the rules may be."

[Anil_Babu_Samineni]

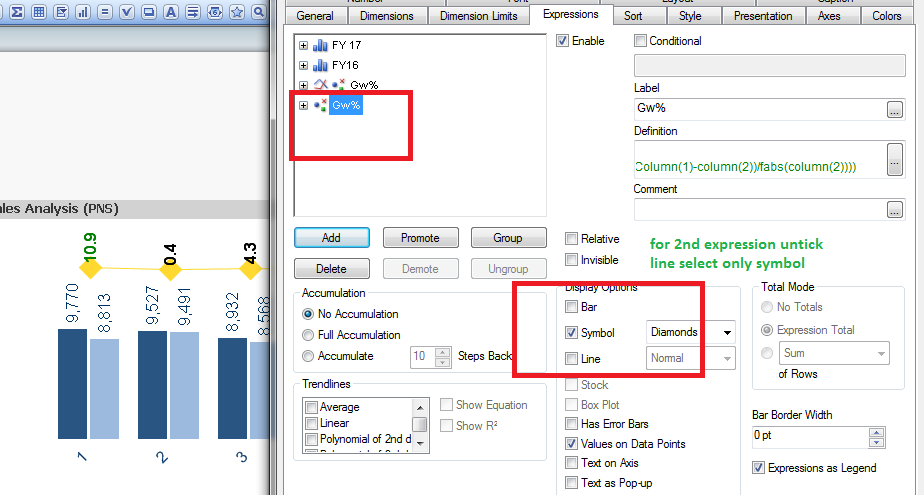

In fact, There is no steps to follow. Here, For your second expression try to enable symbol as Dots with Line then you will achieve

[Anonymous]

Thanks, Anil

Now, let's take your situation as an example.

Line Colour must be in Orange and symbol must be in diamond filled with red colour.

[prma7799]

I think this is not possible you have do like below only.

[Anil_Babu_Samineni]

We will definitely help you reg this, I would suggest you to share application for mock which demonstrates the issue. Then, I may share the steps whether direct way or work around.
