Chart Expression

[#1]

Hi,

In a Bar Chart, I have first bar as Total PO NO (count(DISTINCT {<POStatus={'200'}>}  PO#) ,

in the second bar to compare against the first. my  logic is :

count({<date(StatusDateF) - date(TransmDateF>='2',POStatus='200'>}),OMSPO#) , but failed.

I want to count the No. of PO where its POStatus is ='200' and where the StatusDateF - TransmDateF is equal or less than 2 days.

Can someone pls help.

Thank you.

[#2]

Hi Settu,

I have got the first bar correct using :

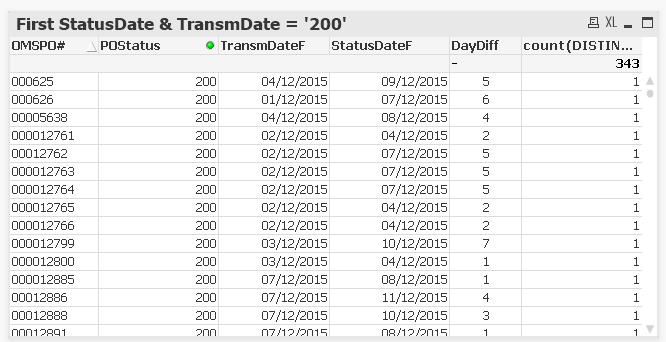

count(DISTINCT{<POStatus={'200'}>}OMSPO#) based on this Table :

the challenge now is the 2nd bar, I need to count the OMSPO# , where theTransmdateF & StateDAteF are the Min date and the POStatus = '200 , and DayDiff is <= 2 days. Appreciate if you could help.

I tried this : But failed.

aggr(count(distinct(if((min(StatusDateF)-min(TransmDateF))>=2 and POStatus='200',OMSPO#)))

Thank you.

[settu_periasamy]

Hi,

Can you provide the sample data? Then, we can test and give the proper expression.

Just try this..

=Count(If(Aggr(min(StatusDateF), OMSPO#)-Aggr(min(TransmDateF), OMSPO#)>=2

and POStatus='200', OMSPO#))

[#4]

Hi,

Pls find attach sample file. Thank you very much.

Regards,

Andros Goh

[settu_periasamy]

Hi Andros,

May be like Attached..

[#6]

Hi,

I saw the attached QVW. But I need the solution on the bar chart.

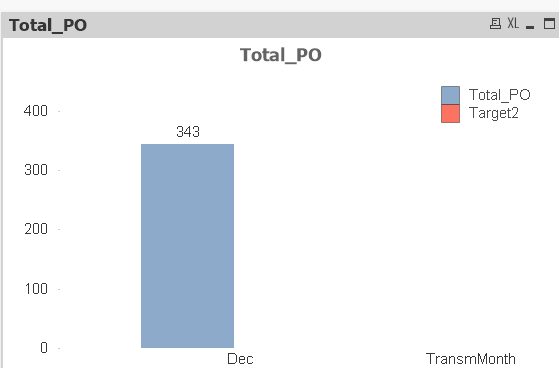

1 bar showing the Total OMSPO# (which I already solved). The other bar which is the “KPI” should Count the no. of OMSPO# where the POStatus=’200’, MIN date for StatusDateF, Min date for TransmDate and DayDiff<=2.

My scripts for Expression (second bar Target2) was below but wrong. I need the correct Expression for the chart ! Thank you.

aggr(count(distinct(if((min(StatusDateF)-min(TransmDateF))>=2 and POStatus='200',OMSPO#)))

[cid:image002.jpg@01D1428E.022910D0]

Regards,

Andros Goh

[manishchandra_j]

Hi Andros,

Please try this for second expression

Count(

{

<

$(=Min({<POStatus={'200'}>}StatusDateF) - Min({<POStatus={'200'}>}TransmDateF))=2

>

}

OMSPO#)

[#8]

Hi,

There is error on the comma : between ..” 2,OMSPO#)”

Count({<$(=Min({<POStatus={'200'}>}StatusDateF) - Min({<POStatus={'200'}>}TransmDateF))<=2,OMSPO#)

I think is because of the <= that caused it. I tried <={‘2} also failed.

Regards,

Andros Goh

[manishchandra_j]

Hi Andros,

I think it's copy-paste error, there is no comma between .” 2,OMSPO#)” I had put the expression in multiple lines to make it easy to understand.

Try below.

Count({<$(=Min({<POStatus={'200'}>}StatusDateF) - Min({<POStatus={'200'}>}TransmDateF))=2>} OMSPO#)

[#10]

Hi,

Pls see below : there is error after the =>2}. Thank you.

Regards,

Andros Goh

[manishchandra_j]

Hi,

Don't worry about that red line, sometimes it gives you that kind of indication even if you expression if correct. use it ans see if you are getting the desired result. I tested this expression myself and it's working.
