Color the blank between two lines - Line Chart

[#1]

hello to all !

I wonder if there is a way to color the space between two lines (horizontal ones) in a Line chart.

Thank you.

[marcus_sommer]

Have you looked to the options within the tab design? If this isn't be enough I believe there won't be other possibilities.

- Marcus

[Anonymous]

Maybe the line chart style 4th from the top is what you need (?)

[#4]

Yes, but it doesn't color the space between the two lines I have. It colors from the line to the up. I want to color only the space between my two lines and I don't know the trick to use to do so.

[marcus_sommer]

Maybe you could adjust the line-width with attribut-expressions = '<W3>' ... but don't believe it would be enough. But with the old and dirty approach to use two overlapping charts it could work.

- Marcus

[stigchel]

Have a look at this thread, maybe you can use the same approach

Painting space between two lines in a line chart

[MarcoWedel]

Hi,

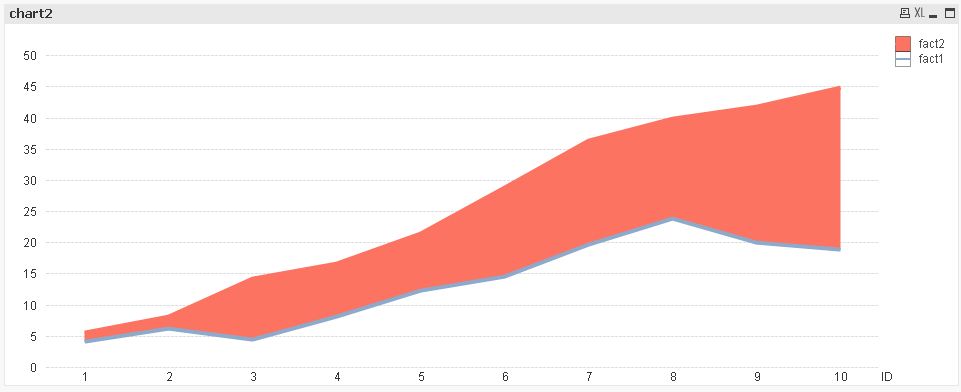

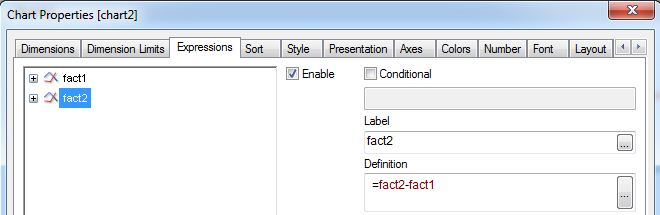

one solution using the already proposed settings could be:

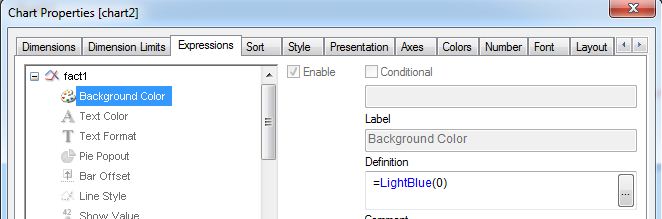

using two stacked charts and one transparent background color.

hope this helps

regards

Marco

[Touix]

I can see the good reesult in your file, but can not reproduce. I can not see what is the difference between chart2 and chart1.

How have you done to have the colored red between the two lines please ?

I have put the transparency to 100% but nothing happened.

Thank you very much

[bluecarbon]

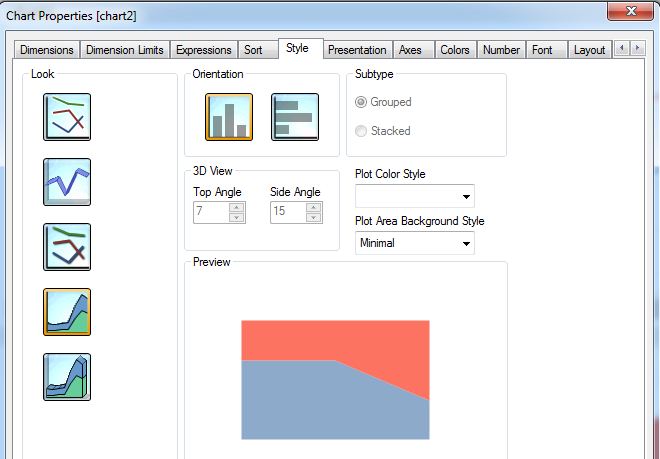

Chart 2 is layer of two charts with line chart in front and area chart behind it. Please move the Chart 2 to see the layers.
