Creating Circular reference

Hi All,

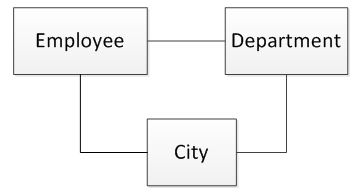

I have a data model situation that I wanted to try out in QlikView and play with different options with Circular reference. Below is the data model that I am trying to build.


I am using the LOAD INLINE to build these tables as:

Employee:

LOAD * INLINE [

    EmpId, EmpName, Title, Salary, CityId, DeptId

    101, John Smith, Sales Mgr, 110000, 4, 1

    201, Sara Ramirez, Sales Associate, 58000, 5, 1

    213, Samuel Baker, IT Engineer 1, 63500, 1, 2

    211, David Mcginti, IT Director, 145000, 2, 2

    256, Alan Card, Business Mgr, 133000, 3, 3

];

Department:

LOAD * INLINE [

    DeptId, DeptName, CityId

    1, Sales, 1

    2, IT, 2

    3, Marketing, 3

];


City:

LOAD * INLINE [

    CityId, CityName

    1, Columbus

    2, Cleveland

    3, Akron

    4, Dublin

    5, Hilliard

    6, Powell

    7, Grove City

];

Problem:

The problem that I am running into is that QlikView creates a Synthetic key to join the Employee and Department tables. If I rename the City field in the Employee and Department tables, it will not join join it to the City table.

How can I get the joins to work as:

Employee.DeptId = Department.DeptId AND

Employee.CityId = City.CityId AND

Department.CityId = City.CityId

17 Replies
abirami_palanis
Contributor III
Contributor III

Hi,

You have three tables .There is no possibility for Three joins. The rule is, if you have N tables ,only (N-1) joins are possible.

you can rename department table cityId . Then you can get data model like below.


these links are enough for  association.


Employee.DeptId = Department.DeptId AND

Employee.CityId = City.CityId AND

arulsettu
Master III
Master III

may be this

QUALIFY *;

UNQUALIFY CityId;

Employee:

LOAD * INLINE [

    EmpId, EmpName, Title, Salary, CityId, DeptId

    101, John Smith, Sales Mgr, 110000, 4, 1

    201, Sara Ramirez, Sales Associate, 58000, 5, 1

    213, Samuel Baker, IT Engineer 1, 63500, 1, 2

    211, David Mcginti, IT Director, 145000, 2, 2

    256, Alan Card, Business Mgr, 133000, 3, 3

];

Department:

LOAD * INLINE [

    DeptId, DeptName, CityId

    1, Sales, 1

    2, IT, 2

    3, Marketing, 3

];

City:

LOAD * INLINE [

    CityId, CityName

    1, Columbus

    2, Cleveland

    3, Akron

    4, Dublin

    5, Hilliard

    6, Powell

    7, Grove City

];

tyagishaila
Specialist
Specialist

i think

these two links are enough for association

Employee.DeptId = Department.DeptId AND

Employee.CityId = City.CityId AND


you can rename CityId of Department table.

tyagishaila
Specialist
Specialist

to remove circular reference, you can concatenate these tables.

Anonymous
Not applicable
Author

Qlikview works best with flat tables rather than normalized.  If at all possible, I would just left join the city table into the employee table in the load script.  Depending on the number of records, I probably would left join the dept table as well.

PrashantSangle

Hi,

use link table concept.

Regards,

Great dreamer's dreams never fulfilled, they are always transcended.
Please appreciate our Qlik community members by giving Kudos for sharing their time for your query. If your query is answered, please mark the topic as resolved 🙂
Peter_Cammaert
Partner - Champion III
Partner - Champion III

Since the synthetic key has nothing to do with the Circular Reference, and you want to keep the Circular Reference to experiment with, remove the synthetic key by creating a composite key in Employee and Department that consists of CityId and DeptId. Drop those two fields from Employee. The INLINE LOADs for Empoyee and Department then become:

Employee:

LOAD EmpId, EmpName, Title, Salary, CityId & '|' & DeptId AS DeptCityKey INLINE [

:

Department:

LOAD *, CityId & '|' & DeptId AS DeptCityKey INLINE [

:

Best,

Peter

Anonymous
Not applicable
Author

Not applicable
Author

I want to be able to join the tables as I mentioned because I want to create a circular reference, which I know how to solve. This is a pretty normal ER modeling situation where 2 tables (Emp and Dept) link to a common lookup table (City) which results in a loop/circular reference.

The question is not about solving circular reference, rather help me join the tables as shown so that I create one.

Employee.DeptId = Department.DeptId AND

Employee.CityId = City.CityId AND

Department.CityId = City.CityId
