Date Range to produce Traffic Light

[Anonymous]

Have a timestamp that I need to apply a 'stoplight' image to in a Straight table- not sure if its easier to apply an image or change the expression to a Traffic Light Guage- either will work fine.

Field & Data:

Reconciliation Time = '10:00 AM CT

Stoplight Criteria

<12:00 PM CT = Green

>12:00 PM CT and <2:00 pm CT = Yellow

>2:00 pm CT = Red

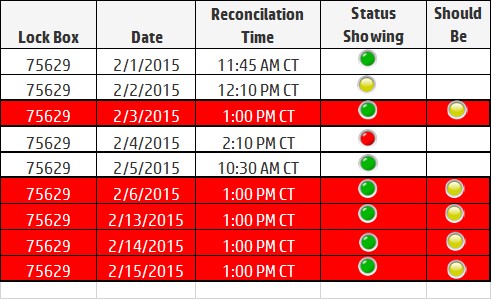

This expression is delivering the Green and Red,some of the Yellow, but not all the Yellow.

=if([Reconcilation Time]<'12:00 PM CT','qmem://<bundled>/BuiltIn/led_g.png',

if([Reconcilation Time]>'12:00 PM CT'and [Reconcilation Time]<'2:00 PM CT','qmem://<bundled>/BuiltIn/led_y.png',

if([Reconcilation Time]>'2:00 PM CT','qmem://<bundled>/BuiltIn/led_r.png')))

I not sure how to configure a Traffic Light Guage to render the same results

Dan

[marcus_sommer]

If you replaced within the if-loop the returning from qmem-pictures with 0, 1, 2 you could use them for gauge-segments.

- Marcus

[Anonymous]

Marcus,

I got it switched over to a gauge -segments,- thanks!

But it is still seeing '1:00  PM CT' as a 0 and applying the Green light.

Dan

[marcus_sommer]

I assume the reason is your used format for the times which is maybe not always the same and/or always numeric. Perhaps you could change it to another time-format, perhaps with 24 hours. But better is by all matchings and calculations from dates and times to use direct numeric values like:

num([Reconciliation Time]) < 0.5 // is 12:00

- Marcus
