Delete ( Close ) all linked object by macro vb

[#1]

Hi all.

In this example we have a macro subroutine to delete all gauges.

The subroutine goes well, but sometime doesn't go.

I suppose it will be a time-out problem, but the question is:

there is another way to delete (close) all gauges with one command like in interactive mode?

When you delete an object and you have some other linked objects, the system ask you if you want to delete all objects or only selected.

There is a parameter to delete (close)  all by macro?

For example:

objIndicators(i).close all

objIndicators(i).close true

...

[#2]

Hi Corrado,

why do you delete gauges in two different way?

Regards

Han

[#3]

Hi Han,

if you look at the API on Close member you find for SheetObject and Container this example:

rem ** remove all sheet objects on sheet Main **

set s=ActiveDocument.Sheets("Main")

orignumber=s.NoOfSheetObjects

for i=0 to orignumber-1

    s.SheetObjects(0).Close

next

But if you try to find and close the object inside the container this example doesn't go.

Now I have some object (in my case some gauges) in a container and I need to close them.

I have found this way:

function IndicatorContainerDestroy (sContainer)

set objContainer = ActiveDocument.GetSheetObject(sContainer)

pContainer = objContainer.GetProperties

for i =  0 to pContainer.ContainedObjects.Count -1

  sGaugeName = pContainer.ContainedObjects.Item(i).Def.ObjectId

  set objGauge = ActiveDocument.GetSheetObject(sGaugeName)

  objGauge.close

next

end function

Regards

Corrado.

[#4]

Hi Corrado,

If You have just two linked gauges why don't you use this loop?

function IndicatorSheetDestroy (sSheetName)

set objSheet = ActiveDocument.Sheets(sSheetName)

objIndicators = objSheet.GetSheetObjects

for j = 1 to 2

  for i = lBound(objIndicators) To uBound(objIndicators)

       id = objIndicators(i).GetObjectId

       ty = objIndicators(i).GetObjectType

   if  ty = 22 then

    set objGauge = ActiveDocument.GetSheetObject(id)

    objGauge.close

  'objIndicators(i).close

   end if

  next

next

end function

Reguards

Han

[#5]

Hi Han,

I have tested your suggestion and I have to note that:

the main loop looks always the gauges in the same sheet, but

why the first close command delete the gauge in the container?

Why if I put the "j" loop as internal it delete just one gauge in container an then the loop stops itself?

The "j" loop as internal:

function IndicatorSheetDestroyIntenalLoop (sSheetName)

set objSheet = ActiveDocument.Sheets(sSheetName)

objIndicators = objSheet.GetSheetObjects

  for i = lBound(objIndicators) To uBound(objIndicators)

       id = objIndicators(i).GetObjectId

       ty = objIndicators(i).GetObjectType

   if  ty = 22 then

  for j = 1 to 2

  set objGauge = ActiveDocument.GetSheetObject(id)

  'objIndicators(i).close

    objGauge.close

  next

   end if

  next

end function

Thanks in advance

Corrado.

[#6]

Hi Corrado,

nice question!

I've tested the function too, it seems there is a stack lifo and close command delete the last in!

Another question:

If You want  to choose which one to delete?

And then:

How many object there are in any stack?

I hope that some other can answer at these questions or add some information about how to manage linked objects by macro vb.

Han.

[#7]

Hi Han,

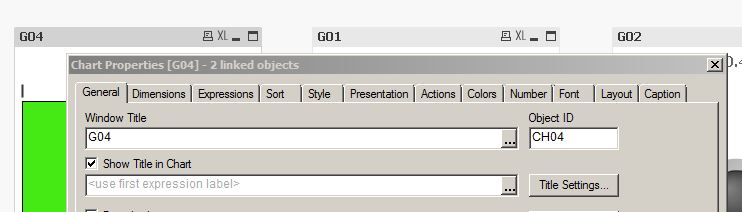

look at the image below:

In caption of chart property you can see the number of linked objects!

May be it's an SheetObject property.

Corrado.
