Graphic Help

Hi!

I'm trying to create a graphic of trend of costs in each year, where:

1. Total costs in 2011 is my reference line;

2. Y-axis shows percentage values from -100% to +100%, and total costs in 2011 value line starts from 0%;

3. On the total costs in 2012 line should be in evidence of the difference in percentage of total costs in 2011;

4. On the total costs in 2013 line should be in evidence of the difference in percentage of total costs in 2011;

Can you maybe help me with the example attached?

Thank you for any help ou can provide in this situation.

Regards,

Andrea

1 Solution

Accepted Solutions
jerem1234
Specialist II
Specialist II

You would want to create a new field in your script like:

(year(addmonths(makedate(year,month),2))-1)& '/' & year(addmonths(makedate(year,month),2)) as YY

Then use that as only dimension with an expression like:

(sum({<month= {1,2,3,11,12}>}cost)

-Sum({<YY={'2010/2011'},month= {1,2,3,11,12}>}total cost))

/Sum({<YY={'2010/2011'},month= {1,2,3,11,12}>}total cost)


Please find attached for an example.

Hope this helps!

View solution in original post

14 Replies
Not applicable
Author

Can anybody help me pls?

Gysbert_Wassenaar

See attached qvw. Is that what you're looking for?


talk is cheap, supply exceeds demand
jerem1234
Specialist II
Specialist II

Please find attached to see if its what you are looking for. What I am guessing you want is like ((Values of 2012) - (Values of 2011))/(Values of 2011).

I created two charts, one with the y-axis untouched and the other limited to -100% to 100%. But I do have to point out that you may get values larger than 100% and smaller than -100% since its about how much larger or smaller the year is compared to 2011 (Could be 200% more than 2011 for example).

Hope this helps!

Not applicable
Author

Thank you so much for your help!!

Not applicable
Author

Thank you so much for your help!

Not applicable
Author

Hi! I'm trying to create a graphic as your example, but only considering these data ranges:

1) 2010/2011: date from 11/2010 to 03/2011. Is my reference line, and starts from 0%;

2) 2011/2012: from 11/2011 to 03/2012. Should be in evidence of the difference in percentage of total costs 2010/2011;

3) 2012/2013: from 11/2012 to 03/2013.Should be in evidence of the difference in percentage of total costs 2010/2011;

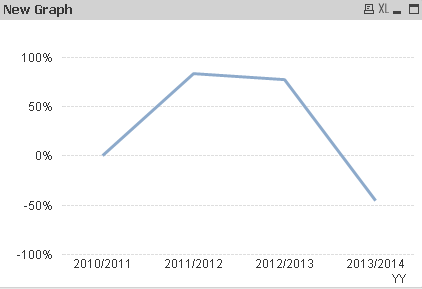

The result should be something as this graphic:

Graphic Example.jpg

Could you help me to write the expression pls?

I tried to use something like this:

(sum({<year={2011}, month= {’11’,’12’}>+<{<year={2012}, month= {’1’,’2’,’3’}>}cost)

-Sum({<year={2010}, month= {’11’,’12’}>+<{<year={2011}, month= {’1’,’2’,’3’}>} cost))

/Sum({<year={2011}, month= {’11’,’12’}>+<{<year={2012}, month= {’1’,’2’,’3’}>}cost)

But I don't know how to insert all range data options.

I really appreciate any help you can provide.

Regards,

Andrea

jerem1234
Specialist II
Specialist II

You would want to create a new field in your script like:

(year(addmonths(makedate(year,month),2))-1)& '/' & year(addmonths(makedate(year,month),2)) as YY

Then use that as only dimension with an expression like:

(sum({<month= {1,2,3,11,12}>}cost)

-Sum({<YY={'2010/2011'},month= {1,2,3,11,12}>}total cost))

/Sum({<YY={'2010/2011'},month= {1,2,3,11,12}>}total cost)


Please find attached for an example.

Hope this helps!

Not applicable
Author

Hi Jerem! Thank you so much for help!!

I have some problems to create a new field. If I use an expression like this as Dimension:

If(([Year] = 2010 and ([Month]= 11 or [Month]= 12)) or ([Year] = 2011 and ([Month= 1 or [Month]= 2 or [Month]= 3)),'2010/2011',
If (([Year] = 2011 and ([Month]= 11 or [Month]= 12)) or ([Year] = 2012 and ([Month]= 1 or [Month]= 2 or [Month]= 3)),'2011/2012',
If (([Year] = 2012 and ([Month]= 11 or [Month= 12)) or ([Year] = 2013 and ([Month]= 1 or [Month]= 2 or [Month]= 3)),'2012/2013')))

Do you think there is another way to write the expression?

I will be grateful if you can send me this information.

Regards,

Andrea


jerem1234
Specialist II
Specialist II

What's the problem with making extra field? If the problem is adding to script, then maybe adding the calculated dimension with same thing would do it?

=(year(addmonths(makedate(year,month),2))-1)& '/' & year(addmonths(makedate(year,month),2))

as dimension and use the expression I used above.

What problems are you having creating the dimension?
