How to display two colors in barchart

[kulasekhar]

Hi All,

I want display batem 25% in Purple color remaining Blue color.

please send me sample qvw.

Thanks

sekhar.

[sunny_talwar]

Not sure I understand your requirement. Would you be able to share few lines of sample data and explain your expected result?

[kulasekhar]

like that Sunny

[Anonymous]

It is called stacked subtype of the bar chart with two expressions.  One expression has one color, the second expression has a different color.  Upload your app if you need a more specific answer.

[robert_mika]

Maybe I'm wrong but what kula is asking for is that 25% of one field is purple and the rest blue..

[MarcoWedel]

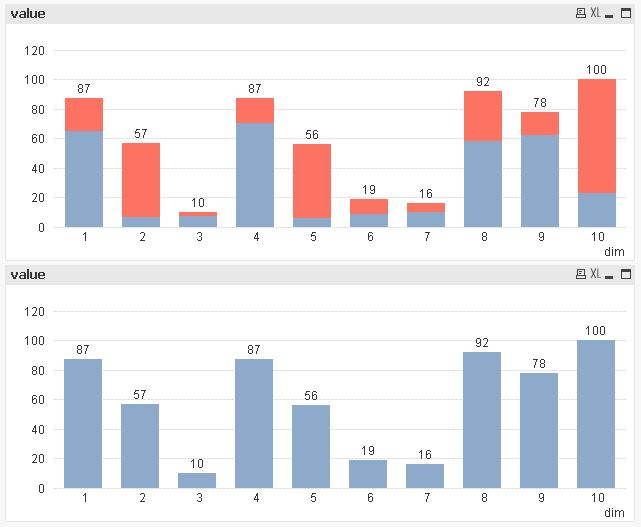

Hi,

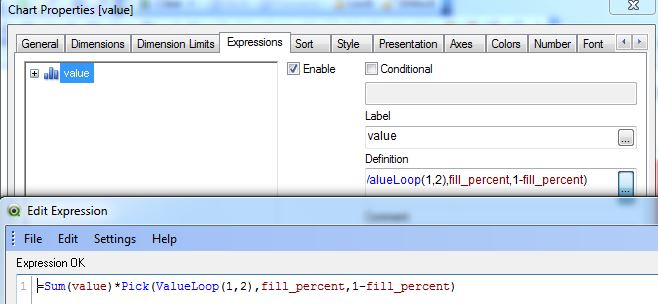

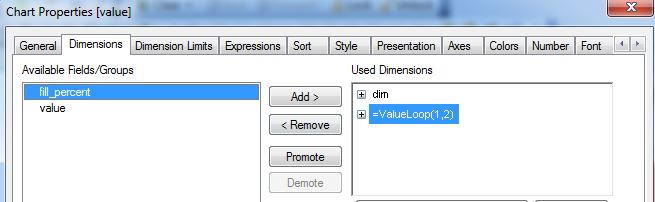

one solution could be:

hope this helps

regards

Marco

[Anonymous]

I depends what to read - the opening post or the follow-up picture

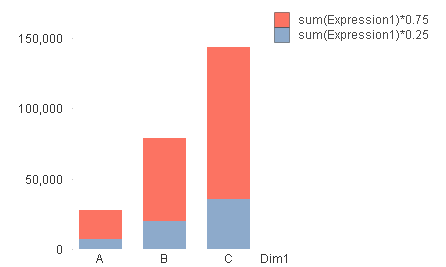

Anyway, if create two expressions, one is 25% of the whole expression another is 75% and use stacked option, it wil work.

Attached an example

[robert_mika]

Hi Michael,

I'm on PE could you attached screen shoot,please?

[Anonymous]

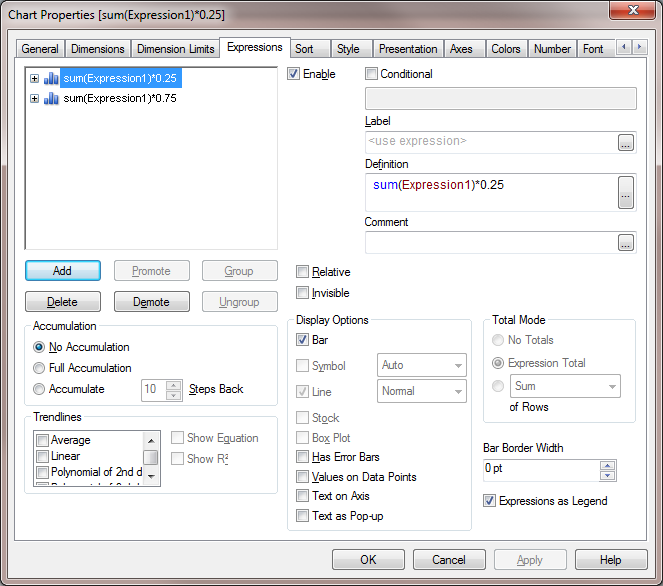

Sure Robert:

[robert_mika]

Thank you Michael but I thought that the problem here is to have the color split across all the bars.

The purple is 25% the blue is 75%
