How to get a look and feel of list box like a button box.

[#1]

I have gone through some example of qlikview reports.In one of report I see the list box like i have attached below.Can any one suggest me how I can this type of list box.

in the attached picm,there are two list box Quarter and Month.

[its_anandrjs · Accepted solution]

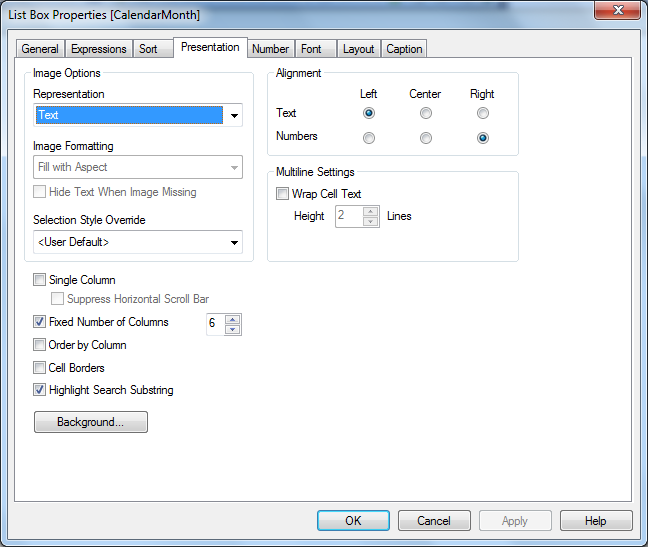

This are normal list box to make this you have to change properties of list box -> Presentation -> Uncheck single column -> uncheck order by column then arrange a list box by mouse cursor.

Hope this helps

[kumarnatarajan]

Hi,

First go to settings -> Document properties -> genreal tab

there you will find styling mode then select advance mode then you can get this type of round shape corner in

every object layout option

[mangalsk]

[VishalWaghole]

Hi Tushar,

first go to

Document Properties -> General -> change styling mode as advanced..

then go to list box properties, under presentation tab

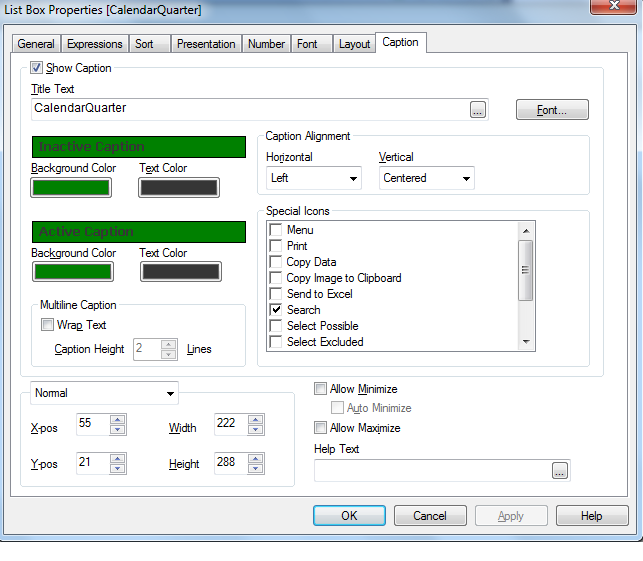

and change properties that i have show in attached image.

- Regards,

Vishal Waghole.

[arjunkrishnan]

Goto->Document Properties->General->ToChange->Style Mode->To Advance

Or

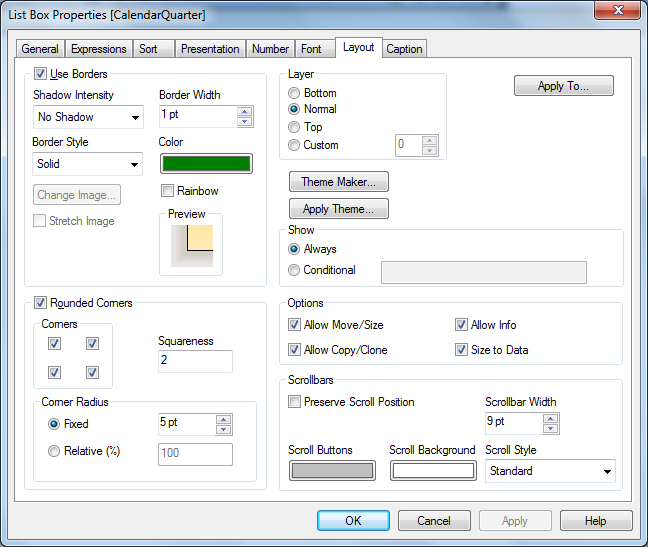

Right Click->ListBox-> Goto -> Properties->Layout-> Change Boarder Width ->3 or 4 -> U Have Image Like That U Show
