Legend wrong

[0li5a3a]

hI all.

I need to display in a Bar Cart the total number of the tickets for the last 30 days.I have a field named Severity where I have something like this Severity = S1, S2, S3, S4, S5,etc.

I want to display only the data for the last 30 days for a specific customer and I want to display the days without tickets too.

like below.

Dimensions :

Day

and

= IF( Customer LIKE 'xxx', Severity)

Expressions:

count({< Date = {"<=$(=DATE(MAX(Date)))>=$(=DATE(MAX(Date)-30))"}>}TICKETID)

and

sum(1) I use this to display all the dates with no data so this is blank.

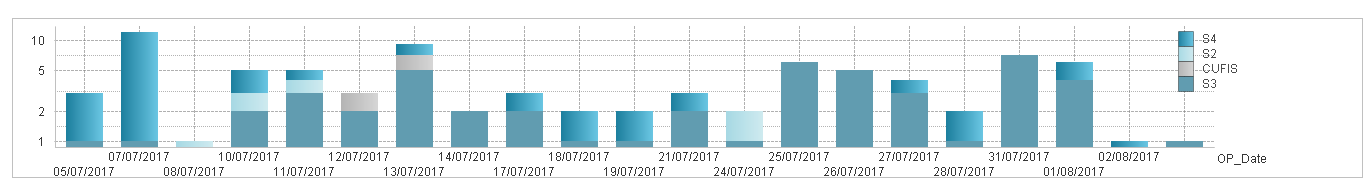

I the below chart the data is selected ok only the problem is with the legend  because I can see all the Severities, there suppose to be just the severities for the last 30 days but in may example are all for example S1 which is from 2 months ago.

Could someone please advise ?

[Anil_Babu_Samineni]

May be try this for Dimension

= IF( Match(Customer, 'xxx'), Severity)

OR Using Set analysis

count({< Date = {">=$(=DATE(MAX(Date)-30)) <=$(=DATE(MAX(Date)))"}, Customer = {xxx}>}TICKETID)

[0li5a3a]

Hi Anil, I tried but this doesn't works in my case:(. Thanks

[Anil_Babu_Samineni]

This, Doesn't for you?

count({< Date = {">=$(=DATE(MAX(Date-30))) <=$(=DATE(MAX(Date)))"}>}TICKETID)

[0li5a3a]

I tried to add it to the expression and no results. I think , I need to restrict the dimension in some way... for the last 30 day... and  maybe this would works.   The problem  when I restrict the data for the last 30 days I loose all the days with no data.

[Anil_Babu_Samineni]

Usually, I don't prefer to use calculated dimension , Any way

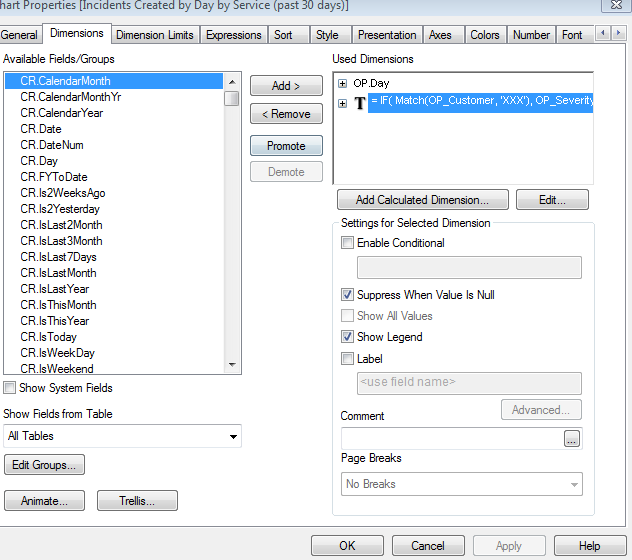

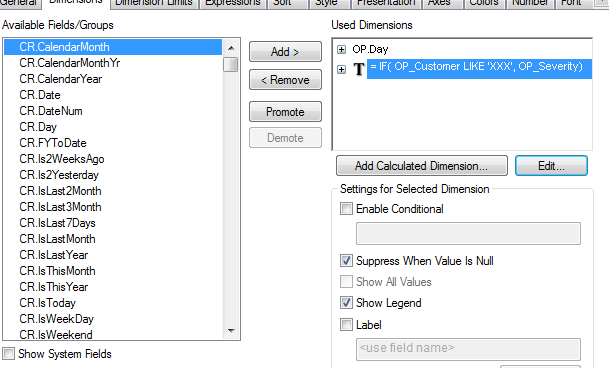

Can you show image where you did?

[0li5a3a]

[0li5a3a]

[0li5a3a]

and here I changed the dimension day to be op_date and I enable the second expression  which was SUM(1) to display the null.

After I do all the above I can see that the legend now shows right but I need to see the dates with don't contains any tickets

[Anil_Babu_Samineni]

This won't help to me. Will you provide sample? Instead xxx you could use your Value
