Multilevel sort on bar chart

[Anonymous]

Hi Experts,

This may look like a simple task but I can't seem to do it properly. Most of the materials I've found so far here are on custom sorts, but nothing on multilevel sort. Essentially, I want my bar chart to sort first by Country (Descending A>Z) then by Value (Descending).

Sample table below and I have attached the qvw file with the bar chart.

Location	Country	Value
AA	USA	150
BB	Canada	500
CC	USA	250
DD	Canada	400
EE	USA	300
FF	Canada	1000

Hoping for any advice. Thanks!

[Chanty4u]

is this?

[Anonymous]

Hi Chanty, in your file, the bars are sorted by Country but they are not sorted by Value as a secondary sort. The final look of the graph would have the bars in this order:

FF (Canada-1000) - BB (Canada-500) - DD (Canada-400) - EE (USA-300) - CC (USA-250) - AA (USA-150)

[Kushal_Chawda]

can you try this

First create the Sort Table

Sort:

LOAD distinct Country,

           Autonumber(Country) as SortCountry

Resident YourTable

Order by Country desc;

Now go to chart Properties-Sort Tab-> Check expression -> Descending put below condition

=SortCountry & YourExpression

[zhadrakas]

Hello Mark,

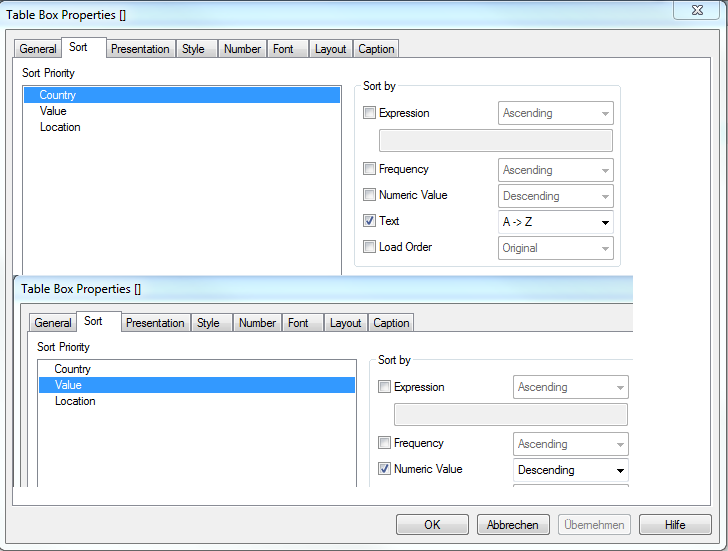

Go to Chart Properties -> Sort Tab

- Make sure the Sort list is right (1st Country, 2nd Value)

- Sort Country A-Z

- Sort Value Numeric Descending

[tamilarasu]

Hi Mark,

Try sort expression as

=Sum(Value)&Ord(Location)

Attached the updated file.

[florentina_doga]

maybe this ! !

[Anonymous]

This actually achieved the desired sort order by chance. But it is not working well. For one thing, the expression does not consider the Country.

It should sort by Country first

THEN

sort by Sum(Value)

[Anonymous]

Yes, the straight table you have is correctly sorted into the desired order but how do you translate that same order onto the bar graph?

[Anonymous]

Tried and yes this looks good! Quick question, is there an alternative way of achieving this from within the bar chart only and without having to use the Load Script?
