Showing a value and a symbol in the same cell

Hello everyone,
Could you please help me to "show a value and a symbol in the same cell" similiar as below;


1 Solution

Accepted Solutions
settu_periasamy
Master III
Master III

In Script just Inline Load..

LOAD * INLINE [

     Check, Data1, Data2

    A, 6, 9

    B, 11, 15

    C, 10, 15

    D, 4, 18

    E, 8, 6

];

Straight Table:

Dimension : Check

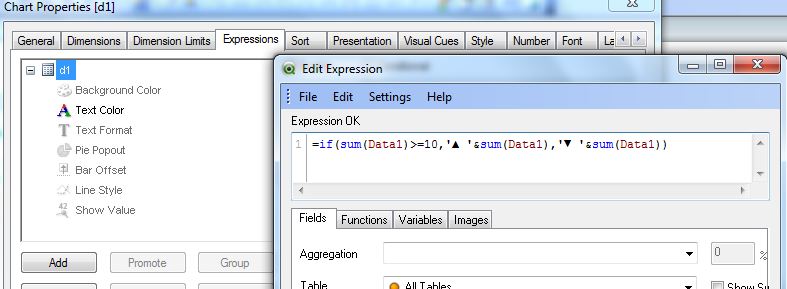

Expression :    =if(sum(Data1)>=10,'▲ '&sum(Data1),'▼ '&sum(Data1))

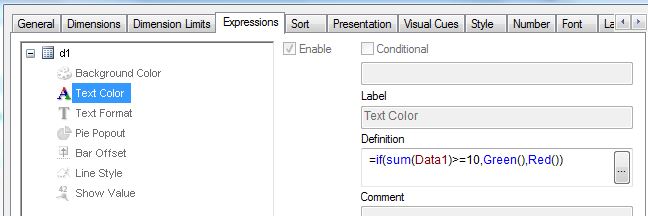

Text Color :     =if(sum(Data1)>=10,Green(),Red())



View solution in original post

5 Replies
settu_periasamy
Master III
Master III

Hi,

If you want just a symbol to add with your data, you can try like this..

=if(sum(Data1)>=10,'▲ '&sum(Data1),'▼ '&sum(Data1))


jonathandienst
Partner - Champion III
Partner - Champion III

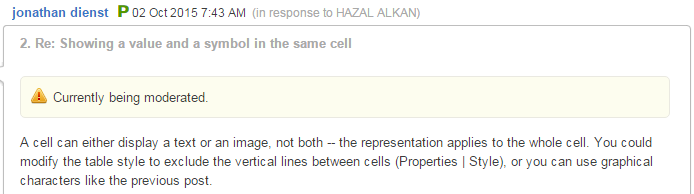

A cell can either display a text or an image, not both -- the representation applies to the whole cell. You could modify the table style to exclude the vertical lines between cells (Properties | Style), or you can use graphical characters like the previous post.

Logic will get you from a to b. Imagination will take you everywhere. - A Einstein
jonathandienst
Partner - Champion III
Partner - Champion III


Logic will get you from a to b. Imagination will take you everywhere. - A Einstein
Not applicable
Author

Thank you so much for answering, but I can not open the file that you send.
Could you please send me the code, you wrote in the edit scipt?

settu_periasamy
Master III
Master III

In Script just Inline Load..

LOAD * INLINE [

     Check, Data1, Data2

    A, 6, 9

    B, 11, 15

    C, 10, 15

    D, 4, 18

    E, 8, 6

];

Straight Table:

Dimension : Check

Expression :    =if(sum(Data1)>=10,'▲ '&sum(Data1),'▼ '&sum(Data1))

Text Color :     =if(sum(Data1)>=10,Green(),Red())
