Stacked bar chart with both negative and positive values

Hi,

I have created a sales pipeline where I also want to incorporate the customers where we have lost/decreased revenue. I have three expressions, NewSales, Pending and Lost.

The numbers in the lost expression are negative.

I want the bar to show the sum of the three expression. In January 2016, the new sales where 3.92m, pending was 0.1m and lost was -0.96. The sum of these three are 3.06 and I want the bar to show this number.

How do I achieve this? Now it show 4.02 because the chart doesn't start at zero.

4 Replies
swuehl
MVP
MVP

Maybe just use one expression:

=Rangesum( Sum(NewSales), Sum(Pending), Sum(Lost) )

[or whatever your three expressions look like, replace the three sums with your expressions]

Anonymous
Not applicable
Author

Hi Sandra,

For your solution RangeSum is a good and straight way to do it as the Y axis will then correspond to the sum (Eg: 3.06)

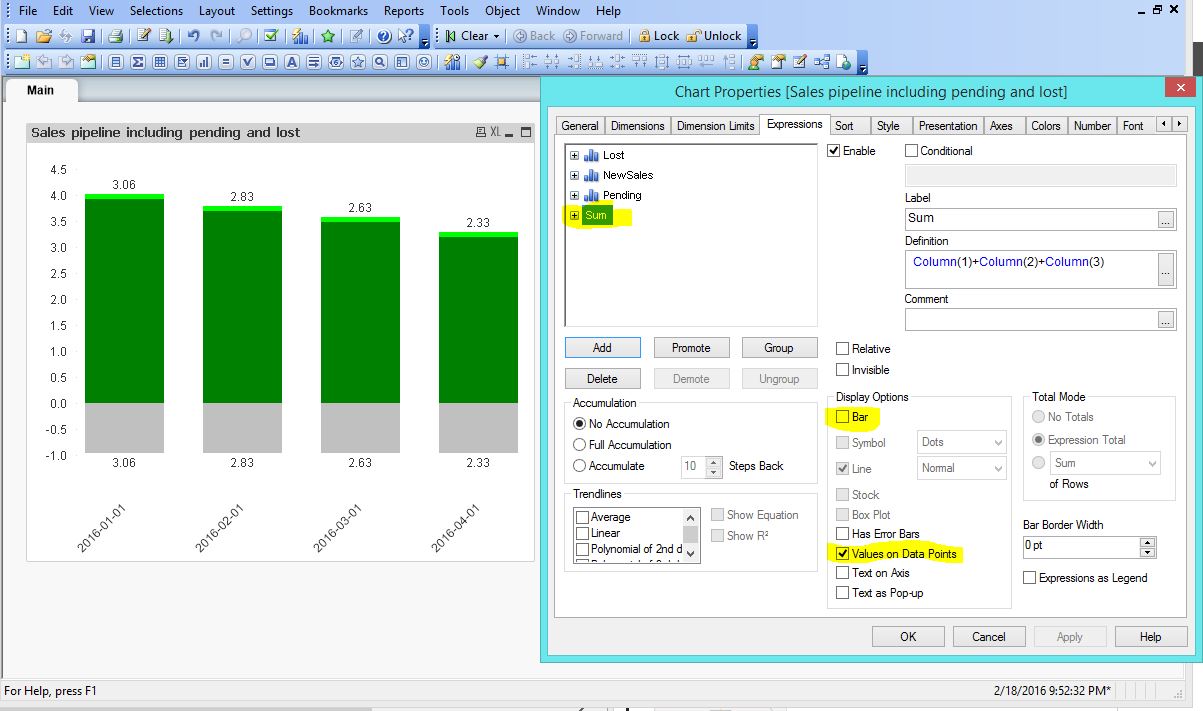

However I think you want to preserve the different color code for each measure and want the Loss to be shown below 0 right? If that is a strict requirement, you can do one hack. See the attached screen. Here, in the expressions tab, I have added a 4th expression which is simply the sum of first 3 and I am not showing it as 'Bar' but just 'Values on Data Points'.

There are 2 issues here though:

1) That total on top of each bar (3.06, 2.83 etc) will be misleading here because the bar length still corresponds to Y axis (eg: 4.02, 3.79 etc)

2) At the x axis above the dates, this same value label is repeated. There could be a way to hide it. One trick (and not very graceful) would be to place a long thin white text box on top.


PradeepReddy
Specialist II
Specialist II

see the attachment.. it might help you..

jonathandienst
Partner - Champion III
Partner - Champion III

If you have 3 expressions, either use wuehl's suggestion, or add this expression, clear the bar option and set the "Values on Data Points" for this expression:

=RangeSum(Column(1), Column(2), Column(3))
