Hi all,

i have two arrow red and green i want to show green arrow when my target is less than actual and red when target is greater than green arrow..

how i can set condition?

[Anonymous]

if(sum(target) > sum(actual),'path for green arrow','path for red arrow')

[abhaysingh]

Not Working, its simply giving me the path whenever any condition fulfilled..

[#4]

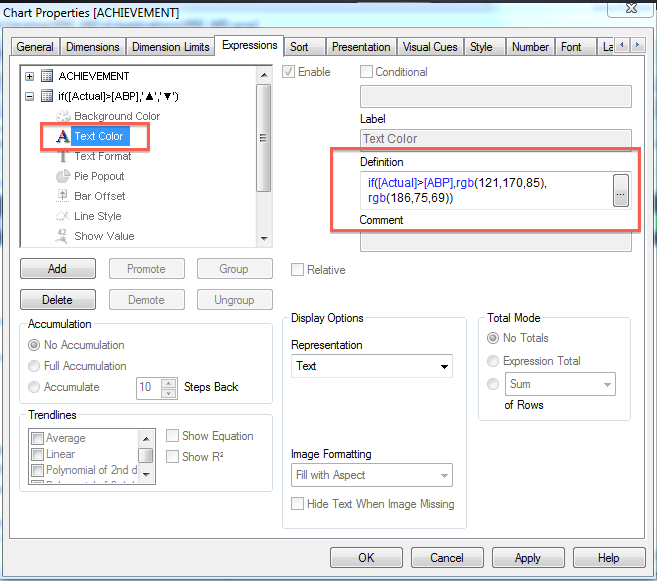

Alternatively you can also achieve this using unicode character instead of using image files by using  expression like:

if([Actual]>[Target],'▲','▼')

AND in the expression text colour option type:

if([Actual]>[Target],rgb(121,170,85),rgb(186,75,69))

[Anonymous]

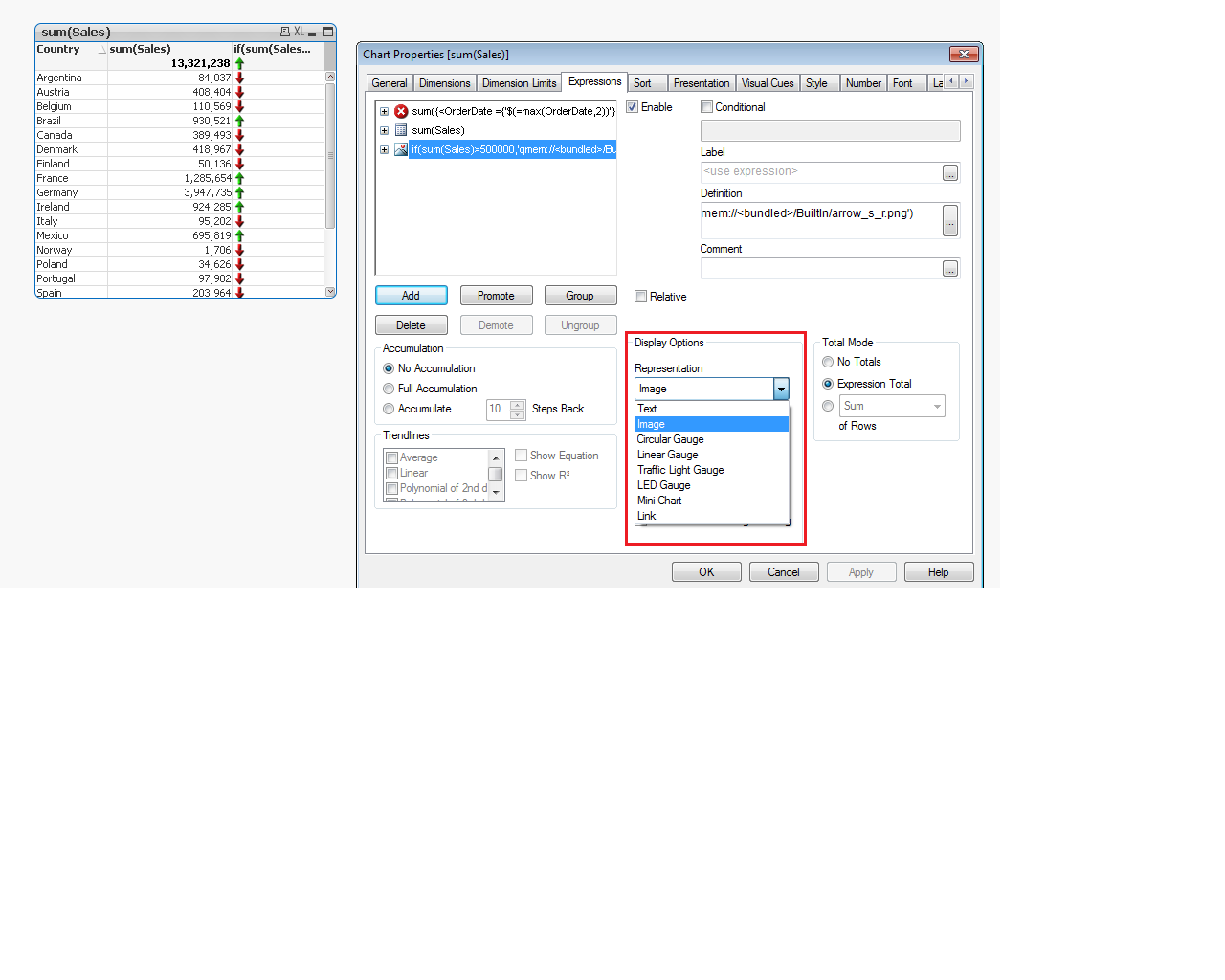

Change the representation to Image
