how to display the bar chart axis negative values in to brackets ()

Hi Friends,

I have a question i would like to show bar chart axis negative values in to (). and i tried to use like this in the expression but not no luck #.##0,00; (#.##0,00)

any one help me resolve this issue.

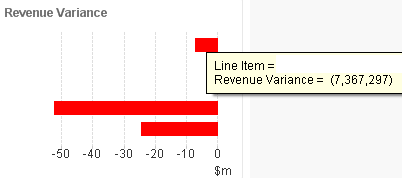

below the example image.


1 Solution

Accepted Solutions
krishnacbe
Partner - Specialist III
Partner - Specialist III

Expand the chart and give the Static step as 3, it is showing up as expected.


View solution in original post

7 Replies
sunny_talwar

krishnacbe
Partner - Specialist III
Partner - Specialist III

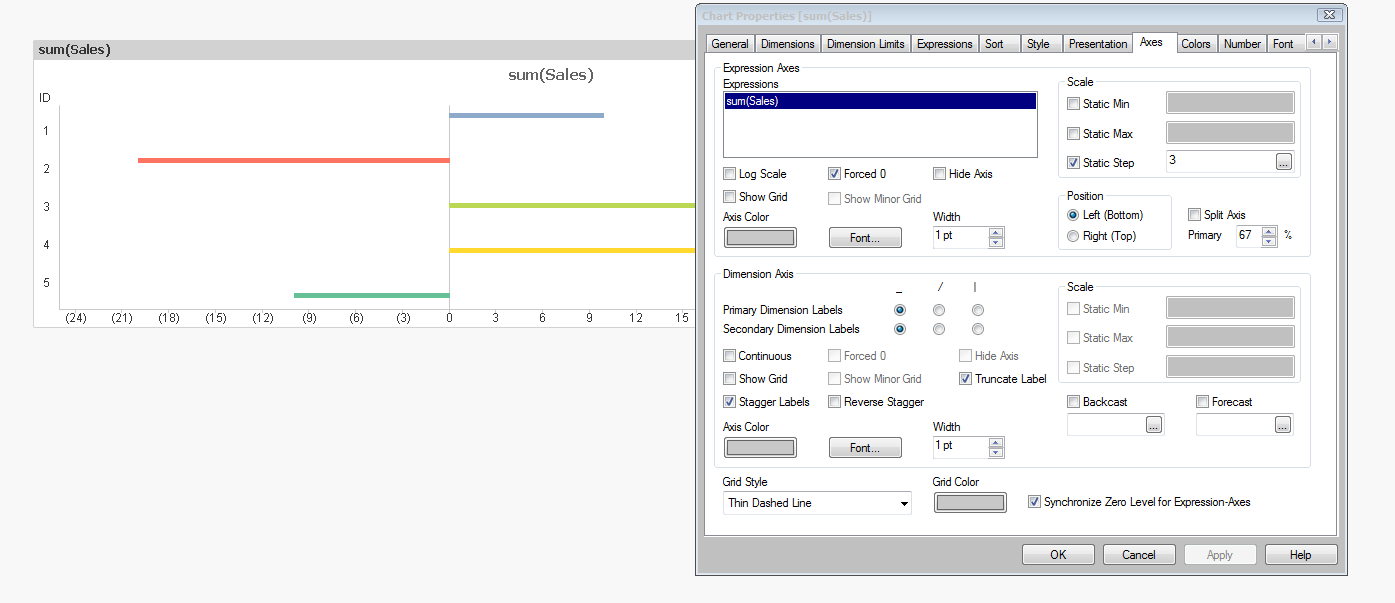

You can set using two steps

1. Assign the Number Format #,##0; (#,##0)

2. Add the values in Static Step for example 10 for my example attached

Hope the attached file helps

venkatbza
Creator
Creator
Author

Hi Krishnapriya,

As per your example if i take static step as 3 it is not showing in brackets it is showing -20

krishnacbe
Partner - Specialist III
Partner - Specialist III

Expand the chart and give the Static step as 3, it is showing up as expected.


venkatbza
Creator
Creator
Author

Thanks, it is working

venkatbza
Creator
Creator
Author

Hi,

Is there any dynamic way to do this instead of expanding the chart every time.

krishnacbe
Partner - Specialist III
Partner - Specialist III

Try enabling the X- Axis Scroll bar and check. in Presentation Tab.
