And and Or

[Anonymous]

Helo,

We have data like below. The requirement is something like

In prop field if I select Color=Blue, Color=Brown, Length=5000mm, I should get pid=P2 and P3 but not P1. Basically the filter applied should be (Color = Blue OR Color = Brown) AND Length=5000mm.

I know the default is (Color = Blue OR Color = Brown OR Length=5000mm) and

in AND mode it is (Color = Blue AND Color = Brown AND Length=5000mm)

but is the combination (AND and OR) even possible?

We could keep Color and Length as separate columns but the property list is big and it keeps growing in every reload so that doesn't look like an option.

Prod:

LOAD * INLINE [

pid, desc

P1, Laptop

P2, Car

P3, PoolTable

];

Properties:

LOAD * Inline [

pid, pname, pval, prop

P1, Color, Blue, Color=Blue

P1, Width, 14inch, Width=14inch

P2, Color, Blue, Color=Blue

P2, HP, 500, HP=500

P2, Length, 5000mm, Length=5000mm

P3, Color, Brown, Color=Brown

P3, Length, 5000mm, Length=5000mm

];

[Anonymous]

Yes but the new properties has to appear on the screen for filtering as a listbox

[Anonymous]

Our initial approach was to keep the properties as individual columns. Generic load was one of our option to reload the properties dynamically, including a file with dynamic query (columns get added in the select) was another. But we end up at the same problem of showing the new properties as listbox selection or in a straight table. And thats when we decided to keep the properties as rows instead of columns. This solves the above problems but brings in the And/Or problem.

[petter]

Well QlikView does some magic for you in a lot of areas but I think you might be hoping for too much here ... Maybe not - I am out of suggestions for now - Good Luck anyway - I would love to see your solution some day if you care to share the concepts here on community

[MarcoWedel]

Hi,

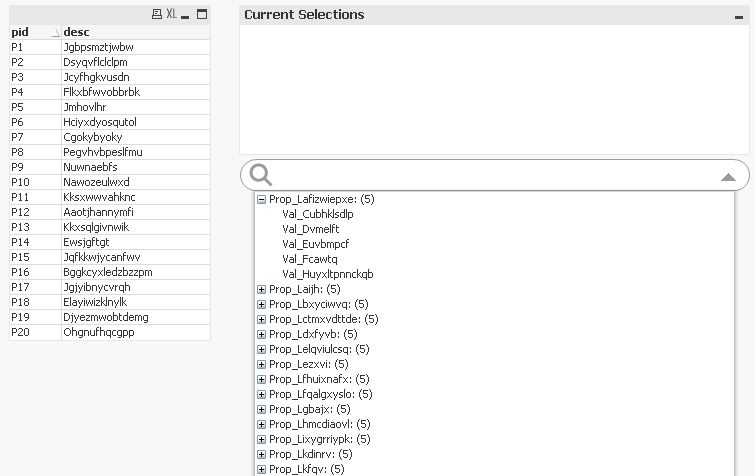

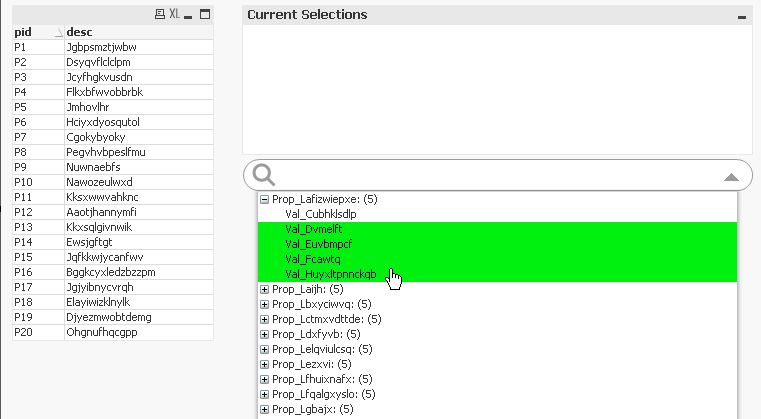

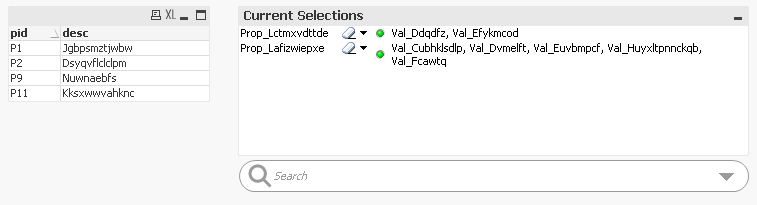

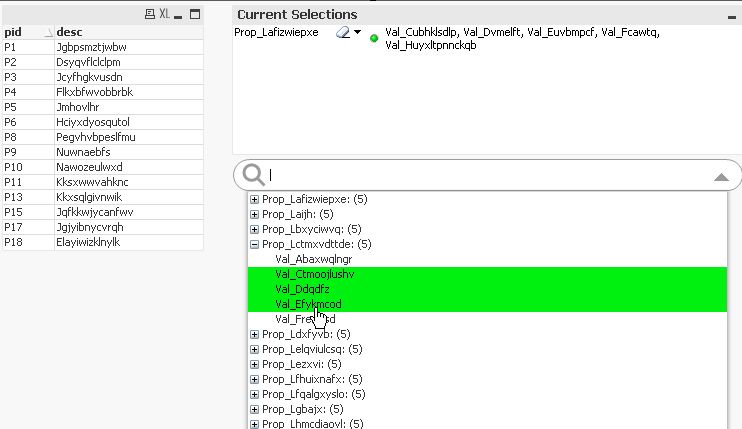

another solution could be to select in a search object, that lists all fields/values:

hope this helps

regards

Marco

[MarcoWedel]

Hi,

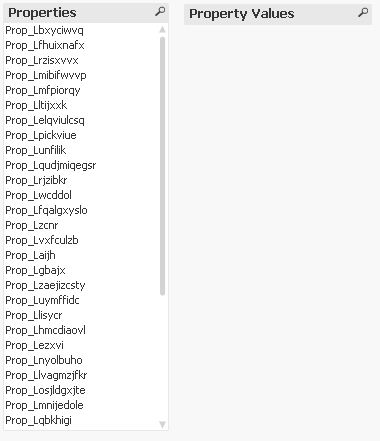

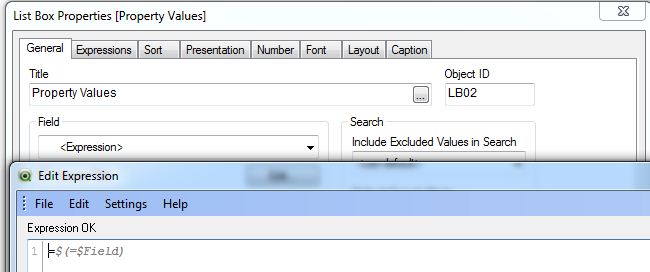

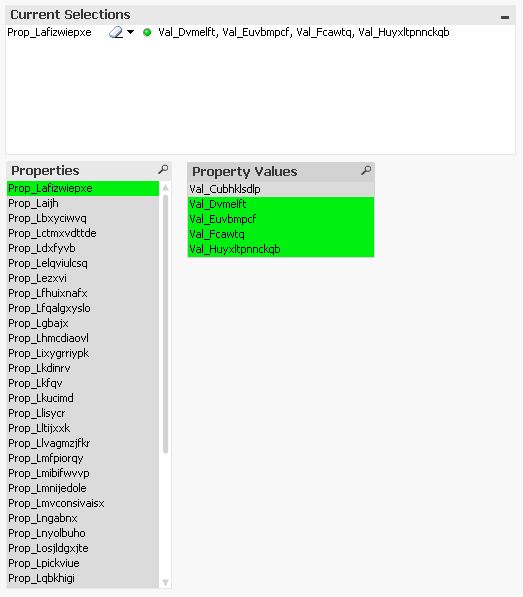

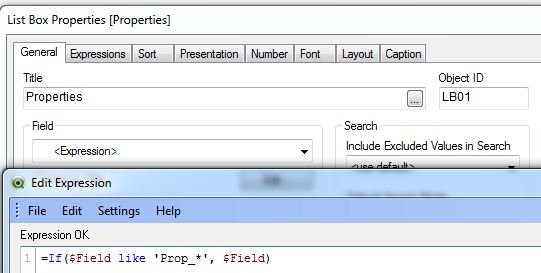

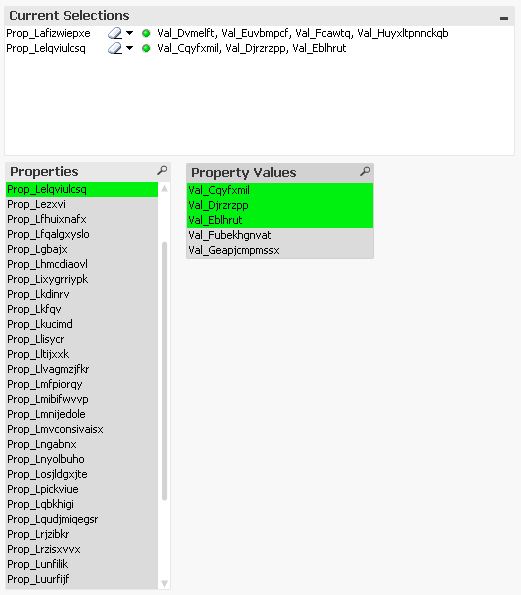

yet another solution might be to use dynamic selection list boxes:

// test data generation

Prod:
LOAD 'P'&RecNo() as pid,
    Capitalize(KeepChar(Hash160(Rand()),'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz')) as desc
AutoGenerate 20;

Properties:
LOAD *,
    pname&'='&pval as prop;
LOAD *,
    'Val_'&Capitalize(KeepChar(Hash128(pname&'/'&Ceil(Rand()*5)),'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz'))  as pval;
LOAD 'P'&Ceil(Rand()*20) as pid,
    'Prop_'&Capitalize(KeepChar(Hash128(Ceil(Rand()*40)),'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz')) as pname
AutoGenerate 1000;

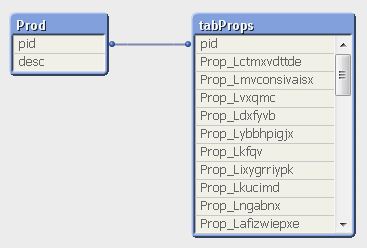

// generic load

tabPropsGen:
Generic LOAD
  pid,
  pname,
  pval
Resident Properties;

tabProps:
LOAD Distinct pid Resident Properties;

DROP Table Properties;

FOR i = NoOfTables()-1 to 0 STEP -1
  LET vTable=TableName($(i));
  IF WildMatch('$(vTable)', 'tabPropsGen.*') THEN
  LEFT Join ([tabProps]) LOAD * Resident [$(vTable)];
  DROP Table [$(vTable)];
  ENDIF
NEXT

hope this helps

regards

Marco

[Anonymous]

That looks promising. I will explore this and report. Thanks Marco.

[Anonymous]

Marco - This alternate solution works perfectly for listbox. Thanks.

I was trying to do same on a pivot (Property Value Table in attached qvw) or a straight table so the columns gets listed with values. Using the $field I could list the properties as columns but the values show up only if the field is selected in the Properties listbox. What am I missing?

[Anonymous]

Using the solution discussed here Chart with count of $Field values I could dynamically show the properties with values on a pivot table but only if the properties are less than 100. Apparently there is a limitation of 100 set on if loop depth.
