How do I forcibly default a chart to display dimensions?

[#1]

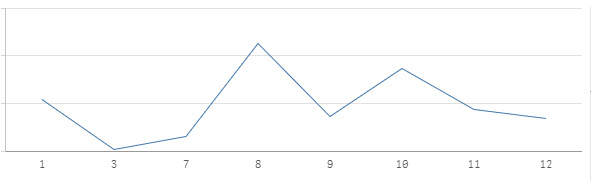

In the example I've included, there are a number of dimensions missing because there are no measures occurring in that dimension. (2, 4, 5, 6).

For the sake of conversation, let's say this line chart counts how many individuals drop out of the process at each step.  Let's call it a 12 step program. To do this, my chart is using Dimension =(STEPS), and Measure =COUNT(STEPS) How can I forcibly show that something (even a 0) happened at steps 2, 4, 5, & 6 even if nobody drops out of the process?  Is there logic that I can enter into the Dimension that would show 1 2 3 4 5 6 7 8 9 10 11 12 on my chart, but still allow users to filter out any step that they would like?

[kaushiknsolanki]

Hi,

You can create another table which will have all the values and then you can use that field. For example.

Load STEPS, STEPS as Key From Data;

Load * inline [

Key, ALLSTEPS

1,1

2,2

.....

12,12

];

Now use the AllSTEPS field as dimension.

Regard,

Kaushik Solanki

[#3]

Unfortunately, that doesn't work as other complex charts/visualizations are tied to that same field.  It also doesn't appear to count correctly now.

[Anonymous]

Hi Isaac,

will something like this work?

Load * inline [

Step, DropOuts

1,1

2,0

3, 2

4, 0

5, 0

6, 0

7, 3

8, 2

9, 1

10, 2

11, 1

12,3

];

Then use "Step" as dimension, and DropOuts as measure.

Regards,

Muliady

[kaushiknsolanki]

Hi,

can you post the Qvf File.

Regards,

Kaushik Solanki

[Anonymous]

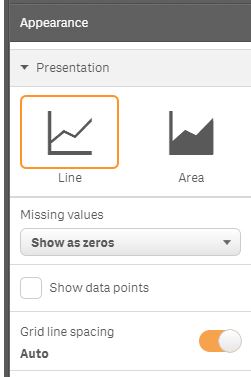

Try this: In the charts properties pane on the right, go to Appearance and expand Presentation. Here for missing values select 'Show as zeros'

[#7]

unfortunately that's not an option for me.  The root cause is that I'm using the same field for the dimension and measure, so Qlik doesn't even realize that steps 2, 4, 5, or 6 even exist in this sense.
