Hello,
I'm trying to implement GeoAnalytics using a coordinate system other than the default WGS-84, in this case the customer uses SWEREF99.
I've done this at another customer before but they wanted to use thier own background map, and the current customer may or may not want to do that. Is it possible to use SWEREF99 coordinates without the customer providing the background map using a Geodata layer?
Regards
Johan
Hi,
Load the data in the QGA connector, Polygons as 'Geometry Type' and choose the corresponding CRS, eg EPSG:3006 for SWEREF99 TM https://epsg.io/3006
When applicable please mark the appropriate replies as CORRECT. This will help community members and Qlik Employees know which discussions have already been addressed and have a possible known solution. Please mark threads as HELPFUL if the provided solution is helpful to the problem, but does not necessarily solve the indicated problem. You can mark multiple threads as HELPFUL if you feel additional info is useful to others.
Regards,
Jonas Karlsson
Qlik
Hi,
Load the data in the QGA connector, Polygons as 'Geometry Type' and choose the corresponding CRS, eg EPSG:3006 for SWEREF99 TM https://epsg.io/3006
When applicable please mark the appropriate replies as CORRECT. This will help community members and Qlik Employees know which discussions have already been addressed and have a possible known solution. Please mark threads as HELPFUL if the provided solution is helpful to the problem, but does not necessarily solve the indicated problem. You can mark multiple threads as HELPFUL if you feel additional info is useful to others.
Regards,
Jonas Karlsson
Qlik
Thank you very much for your reply, Jonas. It worked perfectly.
Hi Jonas,
I have the following point:
Data
LOAD * INLINE [
Punkt, Nord, Ost
1, 7291781,1793846];
I've tried the following:
'[' & Nord &','&Ost &']' as Geometry
'[[' & Nord &','&Ost &']]'
But I get the following error:
The following error occurred:
Connector reply error: QVX_SYNTAX_ERROR: Failed to process query: Failed to create dataset Dataset: Malformed POLYGON geometry: 7291781,1793846].
The error occurred here:
?
Any advice?
Best regards,
Marcelo
Hi,

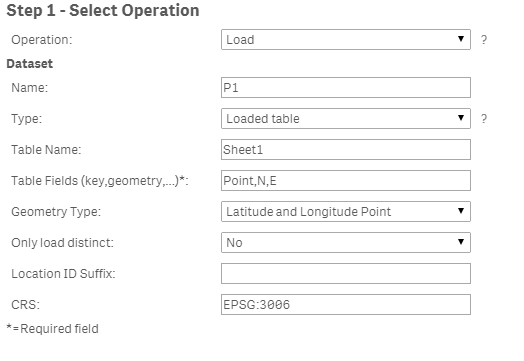

Just created a tiny app loading one SWEREF99 point with CRS EPSG:3006
When applicable please mark the appropriate replies as CORRECT. This will help community members and Qlik Employees know which discussions have already been addressed and have a possible known solution. Please mark threads as HELPFUL if the provided solution is helpful to the problem, but does not necessarily solve the indicated problem. You can mark multiple threads as HELPFUL if you feel additional info is useful to others.
Regards,
Jonas Karlsson
Qlik
One more thing:
Points use only one bracket [x,y]
Qlik GeoAnalytics for Qlik Sense reference documentation
When applicable please mark the appropriate replies as CORRECT. This will help community members and Qlik Employees know which discussions have already been addressed and have a possible known solution. Please mark threads as HELPFUL if the provided solution is helpful to the problem, but does not necessarily solve the indicated problem. You can mark multiple threads as HELPFUL if you feel additional info is useful to others.
Regards,
Jonas Karlsson
Qlik
Hi Jonas,
I managed to make it work with another point but I'd like to add that the interval for North values for SWEREF 99TM is between 6110000 – 7680000 so your point should be invalid. But I didn't try it.
Thank you!
/Marcelo
