How to Add Tables of Contents to PixelPerfect Reports

Employee
Employee

How to Add Tables of Contents to PixelPerfect Reports

Description: Learn how to create a well formatted PixelPerfect Chart and add a Table of Contents to an existing PixelPerfect report. Before starting this tutorial please:

  • Download the latest NPrinting Training Material version and extract it into C:\NPrintingTraining\ so that the the relative path structure continues to be valid
  • Install the latest version of NPrinting from our download page
  • Execute the tutorial How to Add Totals and Subtotals to PixelPerfect Reports

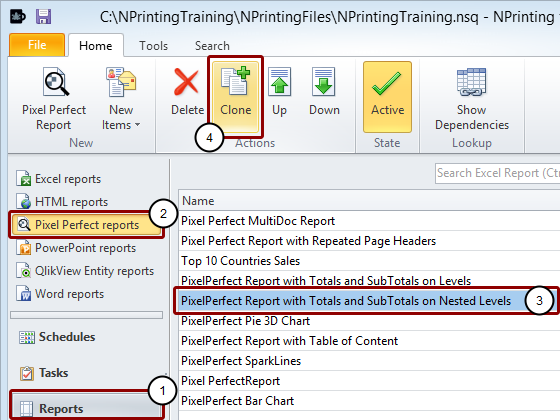

Clone Report


  1. Select Reports in the lower left pane
  2. Select PixelPerfect Reports in the upper pane
  3. Select PixelPerfect Report with Totals and SubTotals on Nested Levels from the report list
  4. Click on the Clone icon in the Actions group of the tool bar

Open Report in Editor

Scroll down to the bottom of the list and double click on PixelPerfect Report with Totals and SubTotals on Nested Levels Copy.

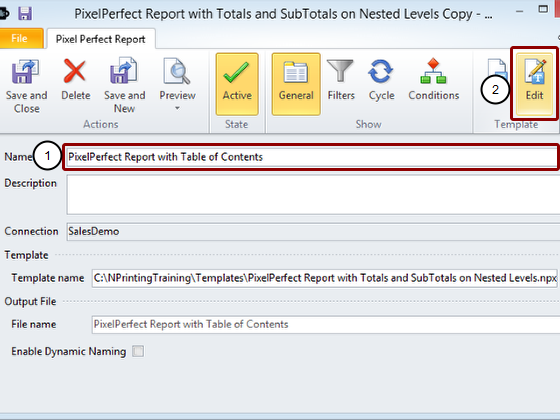

Rename and Open Pre-existing Template in Template Editor

  1. Rename the report to PixelPerfect Report with Table of Contents
  2. Click on the Edit icon in the Template group of the tool bar

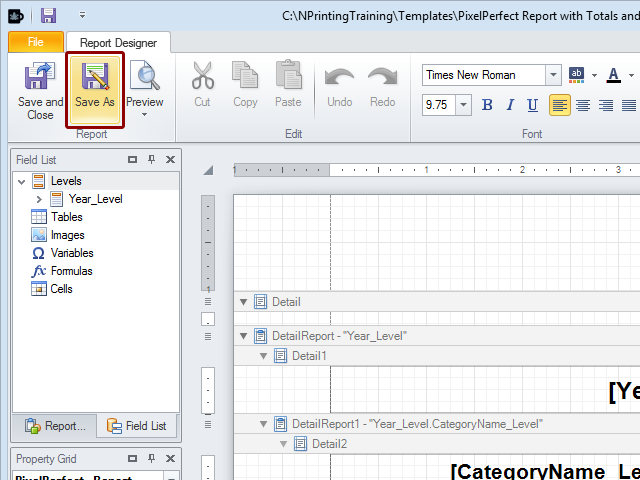

Open "Save As" Window


Click on the Save As icon in the Report group.

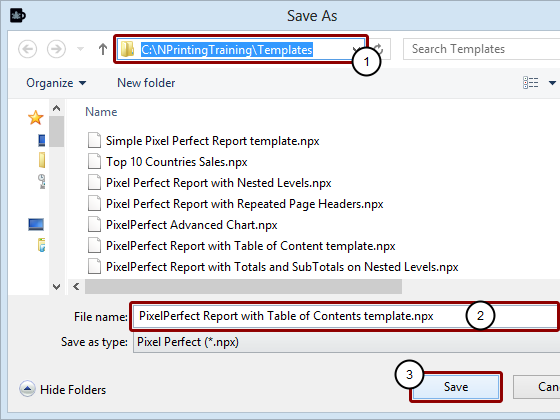

Save Renamed Template

  1. Make sure that the Save as window is opened in the C:\NPrintingTraining\Templates\ folder. If not, browse to it.
  2. Change the template File name from PixelPerfect Report with Totals and SubTotals on Nested Levels.npx toPixelPerfect Report with Table of Content template.npx
  3. Click on the Save button

Select [Year] Heading


The first task is to set the headings as bookmarks. Year will be primary and Category Name secondary.Select the Year heading in the Detail1 range

Make [Year] Heading Primary Bookmark

  1. Find the Data group in the Property Grid in the left lower pane
  2. Expand the (Data Bindings) and Bookmark nodes by clicking on the small angle bracket '>' to the left of each
  3. Select the Binding node
  4. Open the Binding drop-down menu by clicking on the down pointing triangle at the extreme right of the Bindingfield
  5. Expand the Levels and Year_Level nodes by clicking on the small angle bracket '>' to the left of each
  6. Select the Year node by double clicking on it
This procedure creates a top level bookmark.

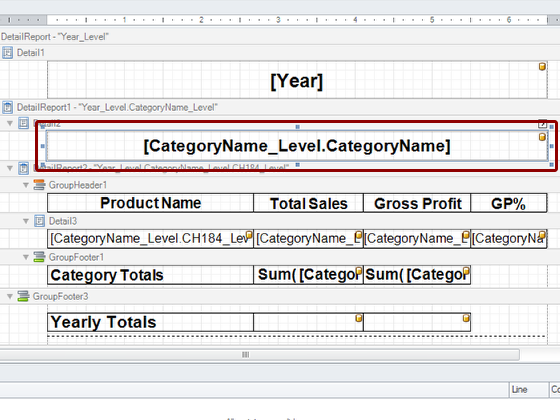

Select [CategoryName_Level.CategoryName]


Select [CategoryName_Level.CategoryName] in Detail2.

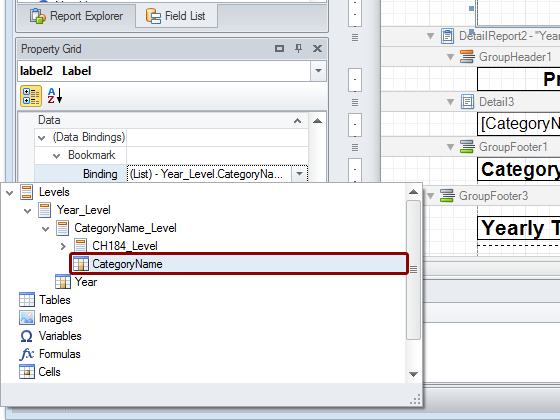

Create Secondary Bookmark


Repeat the above procedure adding the expansion of the CategoryName_Level node and selecting theCategoryName node instead.

Begin Defining Bookmark Hierarchy

  1. Scroll down the Property Grid until you reach the Navigation group
  2. Select Parent Bookmark
  3. Open the Parent Bookmark pop-up menu by clicking on the down pointing triangle at the extreme right of theParent Bookmark field

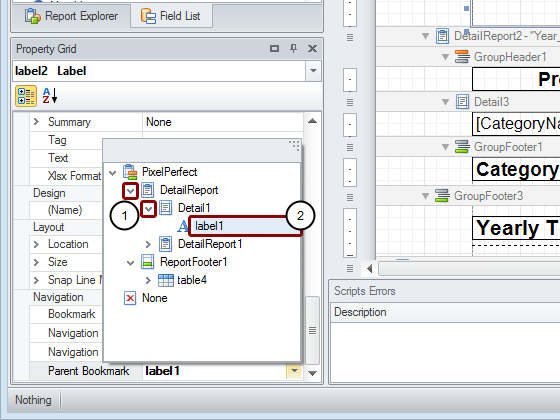

Define Level as Child of Detail1

  1. Expand the DetailReport and Detail1 nodes
  2. Select the Label1 node by double clicking on it.
This procedure defines this level as a child of the Detail1 and so the Table of Contents will be indented at this level.

Create ReportHeader Bar


The Table of Contents must be in the ReportHeader
  1. Right click on the Detail bar
  2. Select Insert Band
  3. Click on ReportHeader
This creates the ReportHeader bar and range

Embed Table of Contents in ReportHeader



Drag the Table of Contents icon into the template and drop it into the ReportHeader range.

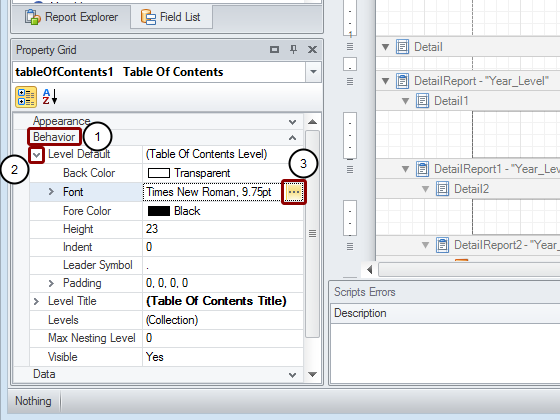

Configure Table of Contents Behavior



Widen the Property Grid on the left side of the NPrinting window.

  1. Go to the Behavior group
  2. Expand the Level Default node
  3. Click on the browse button at the extreme right of the Font field

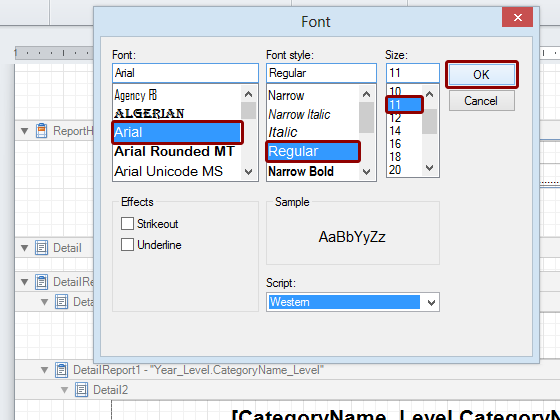

Set Table of Contents Font Characteristics


Set the Font to Arial, Regular, and 11pt, then click on the OK button.

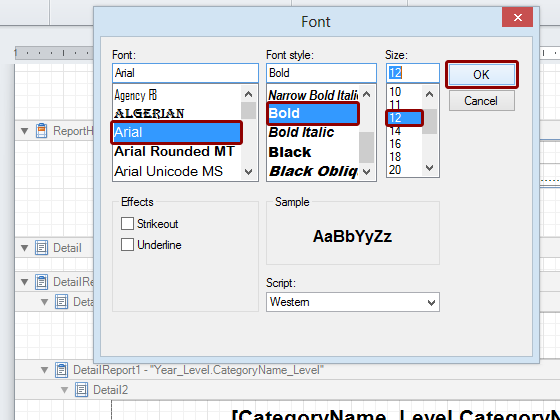

Configure Level Heading


Set the Font to Arial, Bold, and 12pt, then click on the OK button.

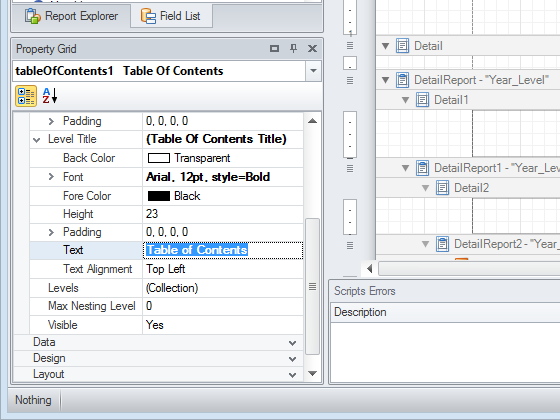

Enter Level Heading Text


Enter Table of Contents for the heading text.

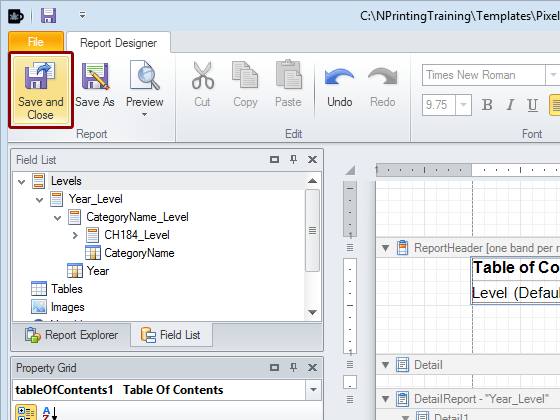

Save Template and Close Template Editor


Click on the Save and Close icon in the Report group of the tool bar.

Run Preview


Get a PDF report with a Table of Contents at the beginning by clicking on the Preview icon in the Actions group.

Inspect Final PDF Report


The rows are PDF bookmarks so clicking on one of them moves the document to the respective page.
